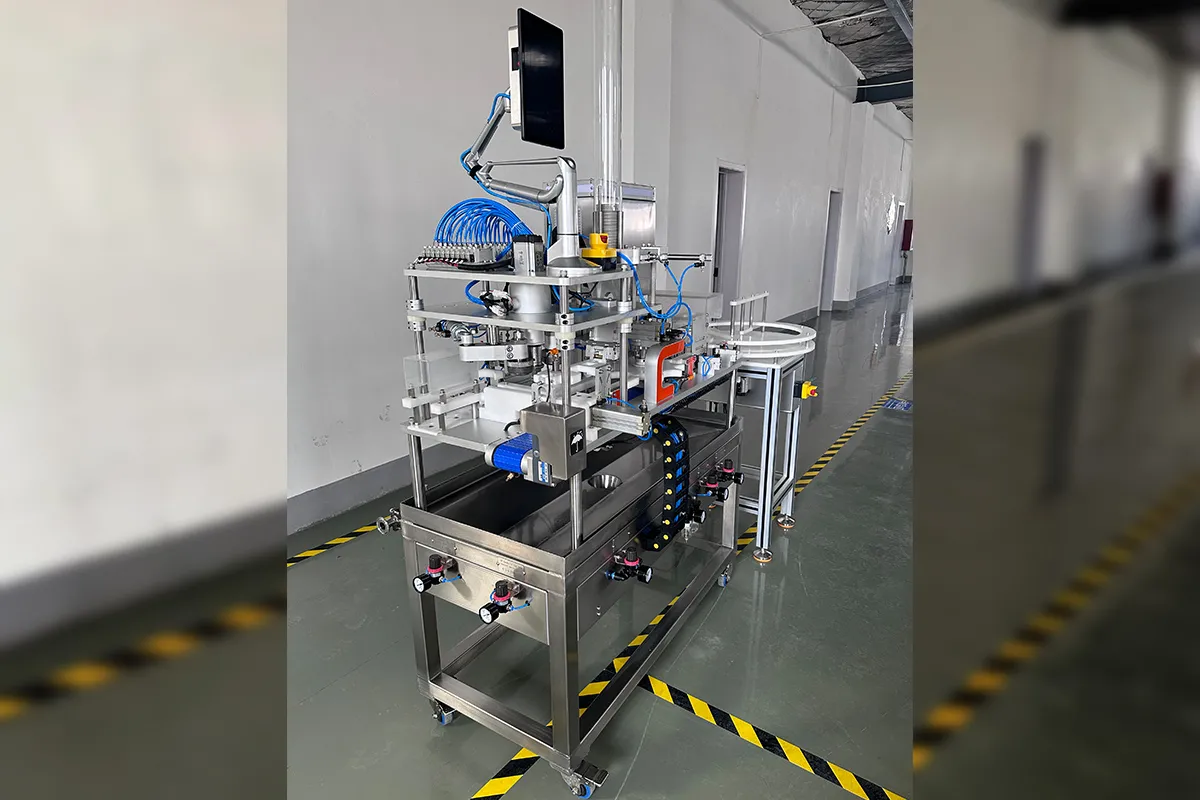

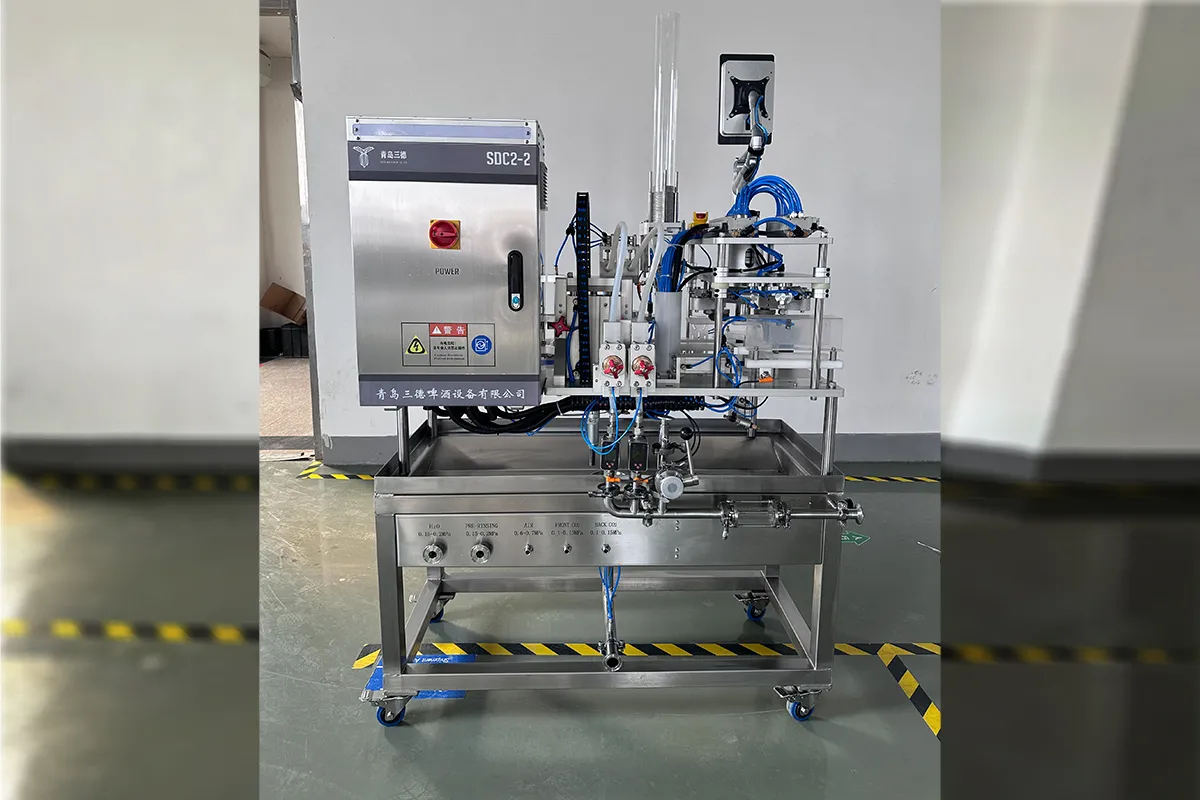

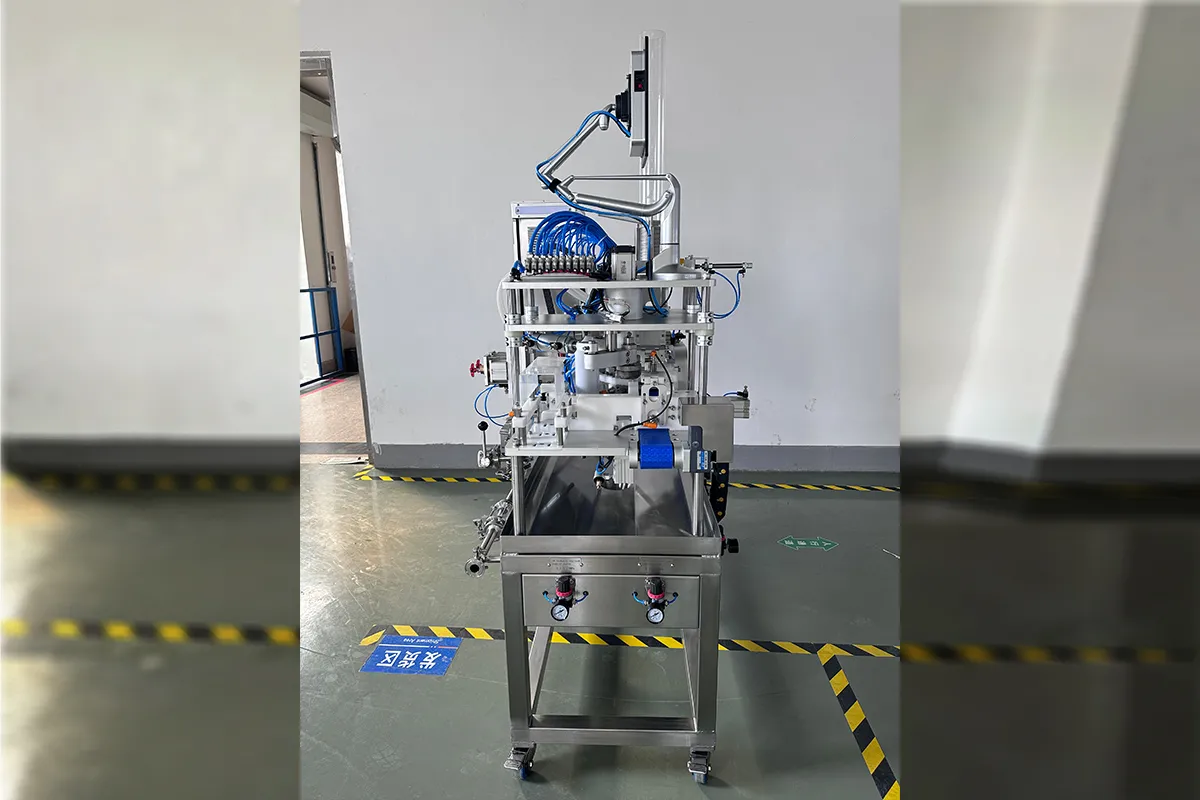

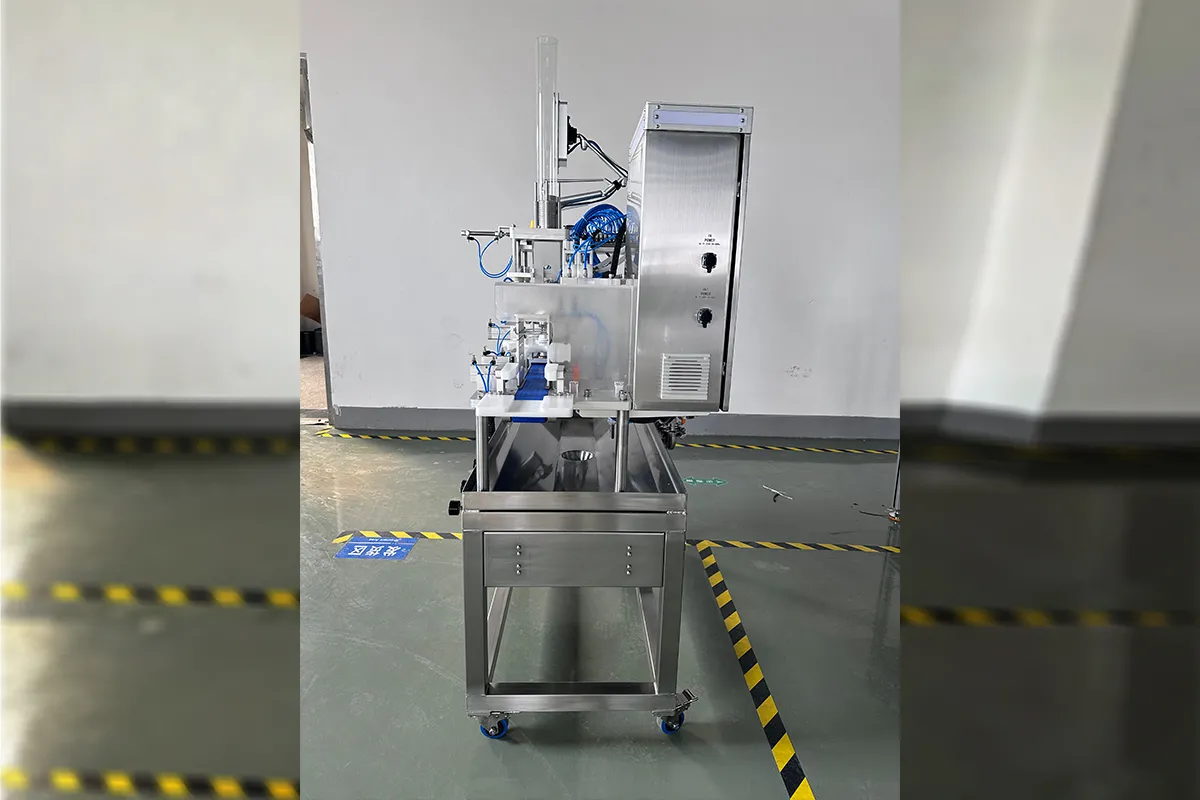

Double Heads Canning

1

Size:W*L*H（Can Filling System )

2.30×0.91×1.85M

2

Size:W*L*H（Flip-Rinse Part)

0.5×0.4×0.5M

3

Size:W*L*H(Rotary   Infeed Table)

0.9×0.9×1.25M

4

Total Size:W*L*H

3.2×0.91×1.85M

5

Total Weight

340KG

6

Packing Size （L*W*H)

3.50×1.15×2.05M

7

Gross Weight

543KG

8

Capacity

1200-1400pcs/H(330ml)  495-594L/H
1000-1200pcs/H(500ml)  600-750L/H

9

Power

According to user   local power (3 Phases 380V 50Hz )

10

Power port

3P+N+G

11

Power consumption

2.0-3.5KW

12

Main Material

SUS304

13

Beer Source Pressure

0.15-0.2Mpa   (22-30PSI)  1.5" Tir-clamp

14

Compressed Air

0.50-0.70Mpa   (75.0-105PSI) OD:Ф10mm

15

Jacking Cylinder   Regulator

0.20-0.30Mpa   (30-45PSI)

16

CO2 Regulator

0.15-0.2Mpa (22-30PSI)   OD:Ф10mm

17

Flip-Rinse Sanitizer

0.15-0.20Mpa(22-30PSI)   1.5" Tir-clamp

18

Exit-Rinse Water

0.15-0.20Mpa(22-30PSI)   1.5" Tir-clamp

19

Time setting way

Siemens PLC 200 smart

20

Beer can type

300ml use in china in   default (Sample offer by customer)

21

Filling Part With   Flowmeter Or Not

Yes

IFM

22

Wheels or feet

wheels

23

Working procedure

Put can→constantly   convey→ Santizing flip-rinse→CO2 purge→ Beer Filling→Cover lips→Seamer→Exit   rinse
