100L+70L Pot Distillation Equipment
ZYB Craft's 100L+70L double pot distillation equipment is perfect for small craft distilleries. Produce whiskey, brandy and rum with traditional pot still craftsmanship. Get your free quote today.
Home >> Products >> Distillery >> Distillery
100L+70L Pot Distillation Equipment

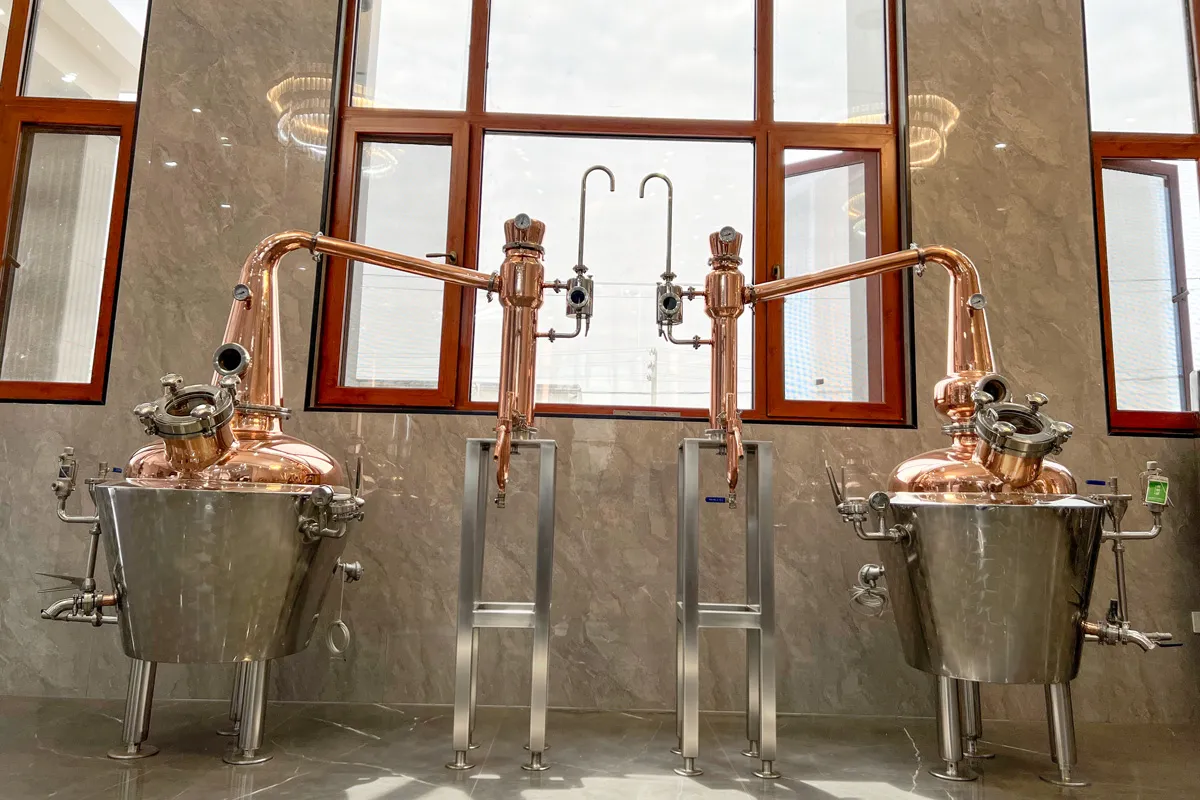

ZYB Craft 100L+70L double pot distillation equipment full system

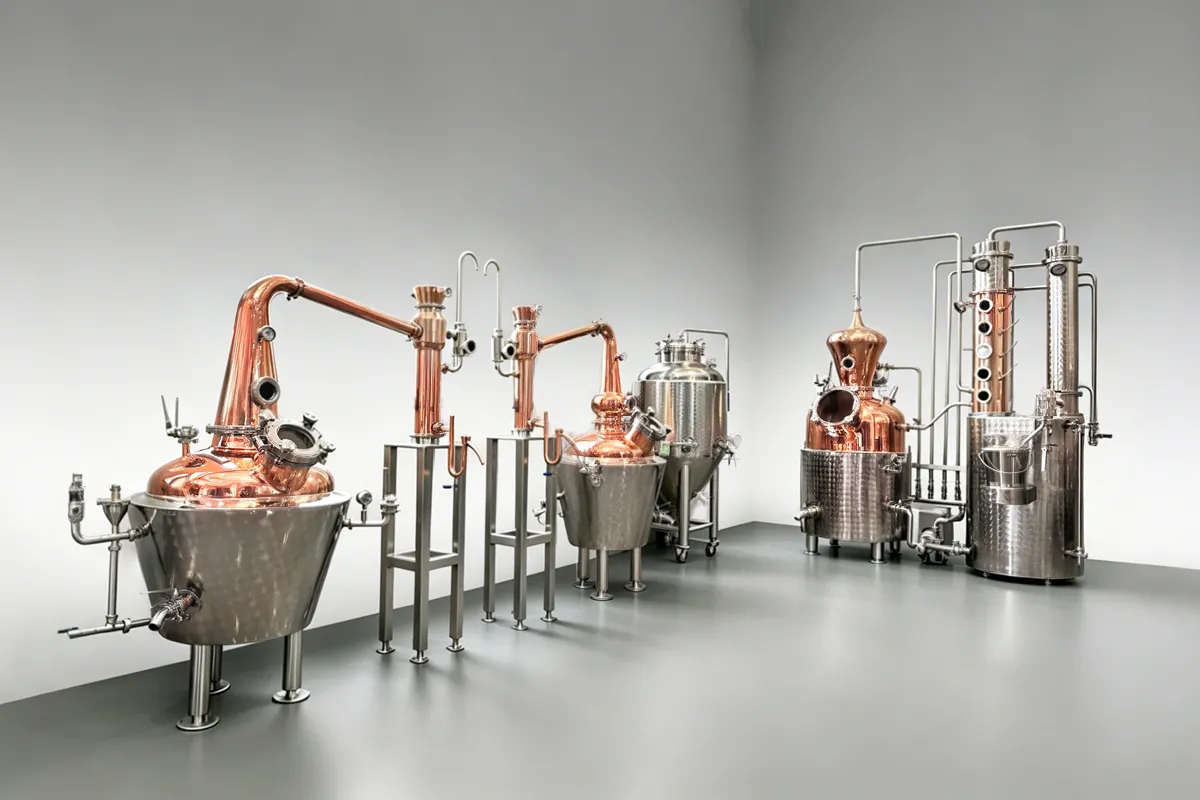

100L+70L pot distiller for whiskey brandy and rum production

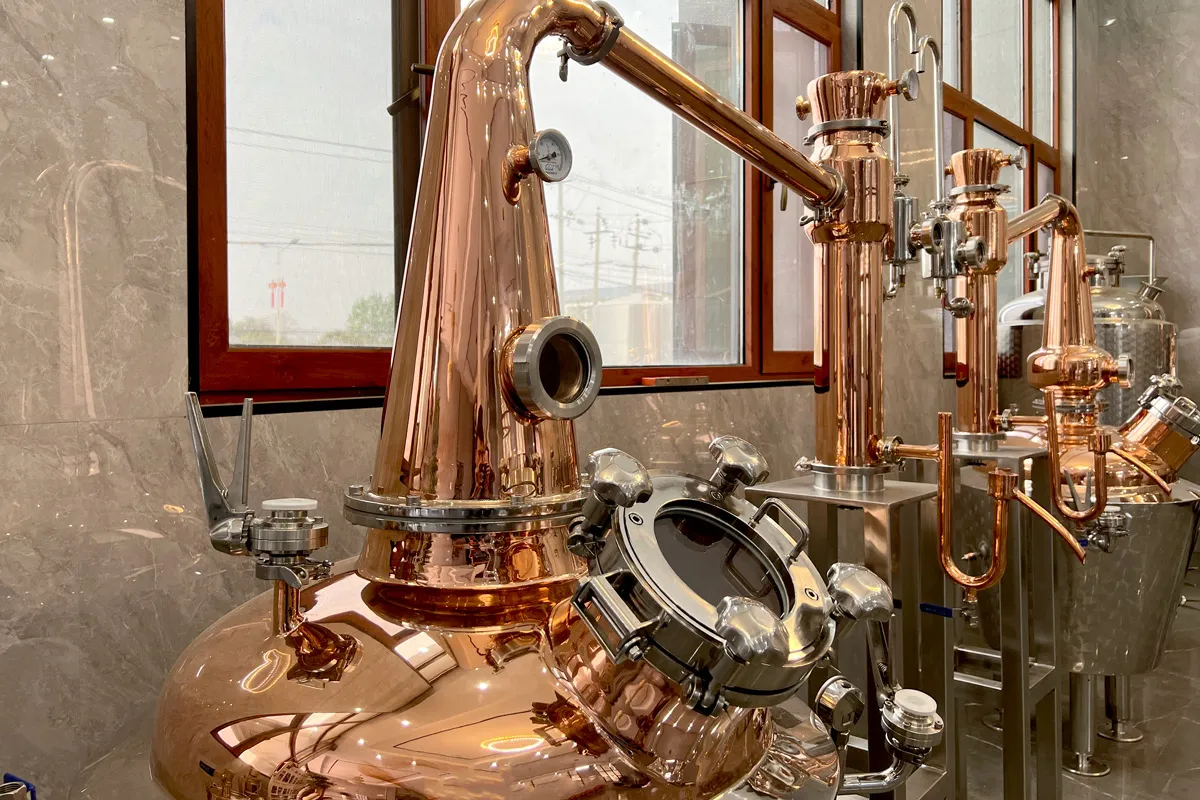

Traditional double pot distillation system with control panel

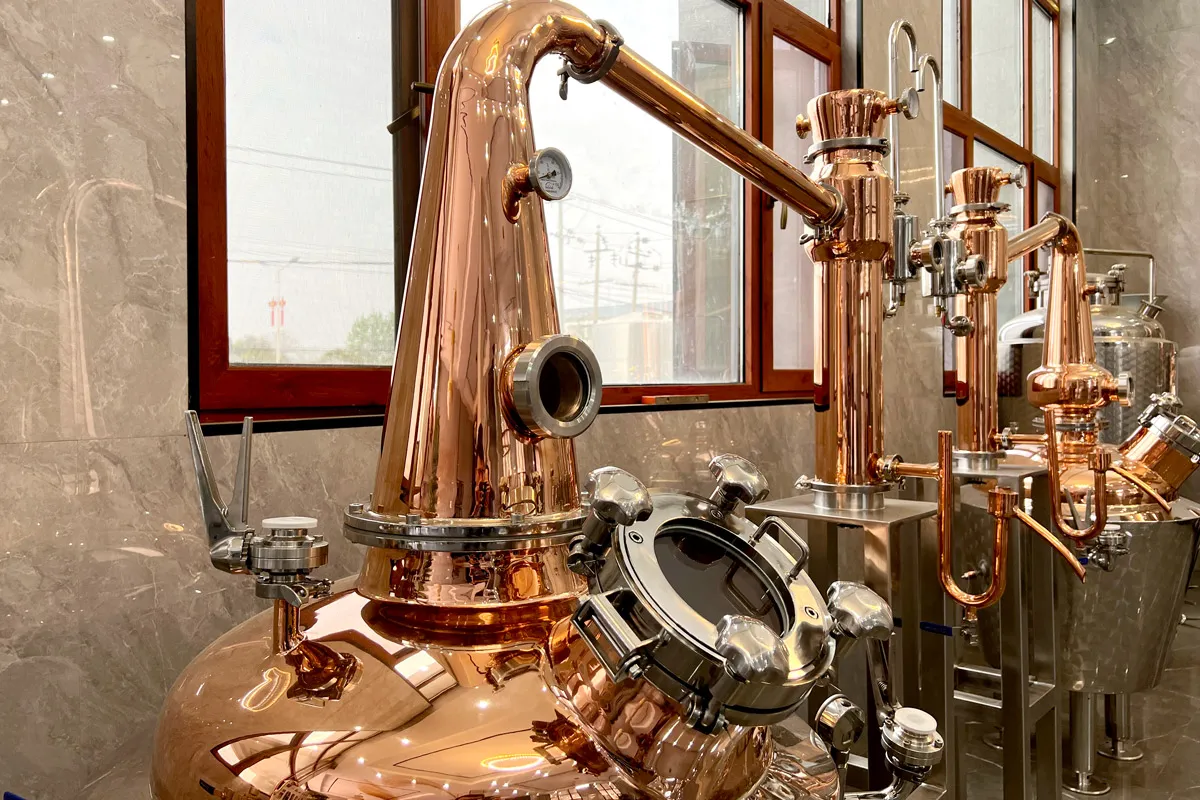

Small craft distillery pot still equipment complete set
100L+70L Pot Distillation Equipment
ZYB Craft 100L+70L double pot distillation equipment full system
100L+70L pot distiller for whiskey brandy and rum production
Traditional double pot distillation system with control panel
Small craft distillery pot still equipment complete set

100L+70L Pot Distillation Equipment

    • Dual-Pot Configuration: 100L main still + 70L secondary still for flexible distillation operations

    • SUS304 Stainless Steel Construction: Durable outer shell for long-lasting performance and easy cleaning

    • Traditional Pot Still Design: Preserves rich flavors and aromas for premium artisanal spirits

    • Efficient Heating System: Fast and uniform heating for consistent distillation cycles

    • Precise Temperature Control: Accurate monitoring and adjustment for optimal spirit quality

    • Comprehensive Safety Features: Equipped with pressure relief valve and overheat protection

    • Easy Operation & Maintenance: User-friendly design with accessible components for simple upkeep

    • Complete Turnkey Solution: Includes all necessary accessories, installation guide and ongoing technical support

If you need help configuring a system to suit your needs,we will help you find the right one for you!
Request a Quote Leave a Message
Product Introduction
ZYB Craft 100L+70L double pot distillation equipment is designed for small craft distilleries, micro distilleries and artisanal spirits producers who value traditional pot still craftsmanship. This dual-pot configuration features a 100L main still and a 70L secondary still, allowing you to perform simultaneous distillation or sequential distillation for enhanced flavor and efficiency. Constructed with a robust SUS304 stainless steel outer shell, the equipment delivers exceptional durability and easy maintenance.
The system is equipped with efficient heating systems and precision temperature controls to ensure consistent distillation results. The traditional pot still design preserves the rich flavors and aromas of your spirits, making it ideal for producing premium whiskey, brandy, rum and other aged spirits. All components are carefully engineered and undergo rigorous quality testing to guarantee reliable long-term performance. We provide complete installation guidance, detailed operation manuals and comprehensive after-sales support to help you get started quickly. Custom modifications are available to meet your specific production requirements.
Standard Configuration

100L+70L Pot   Distillation Equipment:

No.

Model

Descriptions

Quantity

1

Still pot

Actual volume160L, Working volume100L;
Inner pot: red copper TP2, thickness：3m；
Dished head: red copper TP2, thickness：3m;
Jacketed: SUS304, thickness: 4mm;
Insulated: 50mm, PU;
Outer shell: SUS304, thickness: 2mm;
Temperature control: PT100;
Heating method: 10KW electric heating rods
With glass manhole, safty valve, etc.

1

2

Swan neck(pear shaped type)

Material：red copper TP2, thickness：3mm；
Connection method: φ250*700mm；
With thermometer, sight glass;

1

3

Lynn arm

Material：red copper TP2, thickness：2mm；
Connection method: φ63*630mm；

1

4

Condenser

Material: red copper TP2, thickness: 3mm;
Size: φ133*680mm;
With cooling water inlet and outlet;

1

5

Spirits outlet

Material: red copper TP2;
Can put an alcohol hydrometer to measure the alcohol content;

1

6

Bracket

Material: SUS304

1

7

Control box

Material: SUS304;
Heating rod switch, PT100.

1

1

Still pot

Actual volume100L, Working volume70L;
Inner pot: red copper TP2, thickness：3m；
Dished head: red copper TP2, thickness：3m;
Jacketed: SUS304, thickness: 4mm;
Insulated: 50mm, PU;
Outer shell: SUS304, thickness: 2mm;
Temperature control: PT100;
Heating method: 8KW electric heating rods
With glass manhole, safty valve, etc.

1

2

Swan neck(lantern type)

Material：red copper TP2, thickness：3mm；
Connection method: φ150*700mm；
With thermometer, sight glass;

1

3

Lynn arm

Material：red copper TP2, thickness：2mm；
Connection method: φ63*660mm；

1

4

Condenser

Material: SUS304, thickness: 3mm;
Size: φ102*640mm;
With cooling water inlet and outlet;

1

5

Spirits outlet

Material: SUS304 with glass bell jar;
Can put an alcohol hydrometer to measure the alcohol content;

1

6

Bracket

Material: SUS304

1

7

Control box

Material: SUS304;
Heating rod switch, PT100.

1
