100L Multi Functional Distillation Equipment

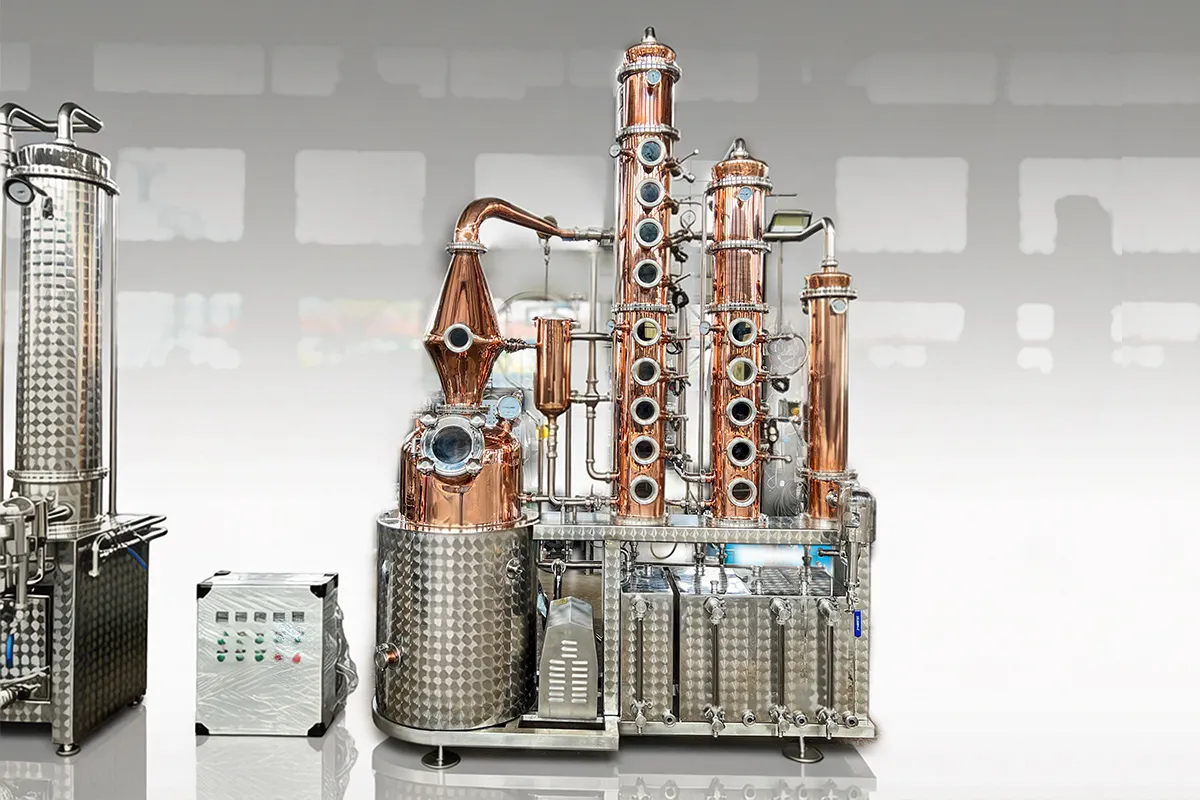

ZYB Craft 100L multi functional distillation equipment full system

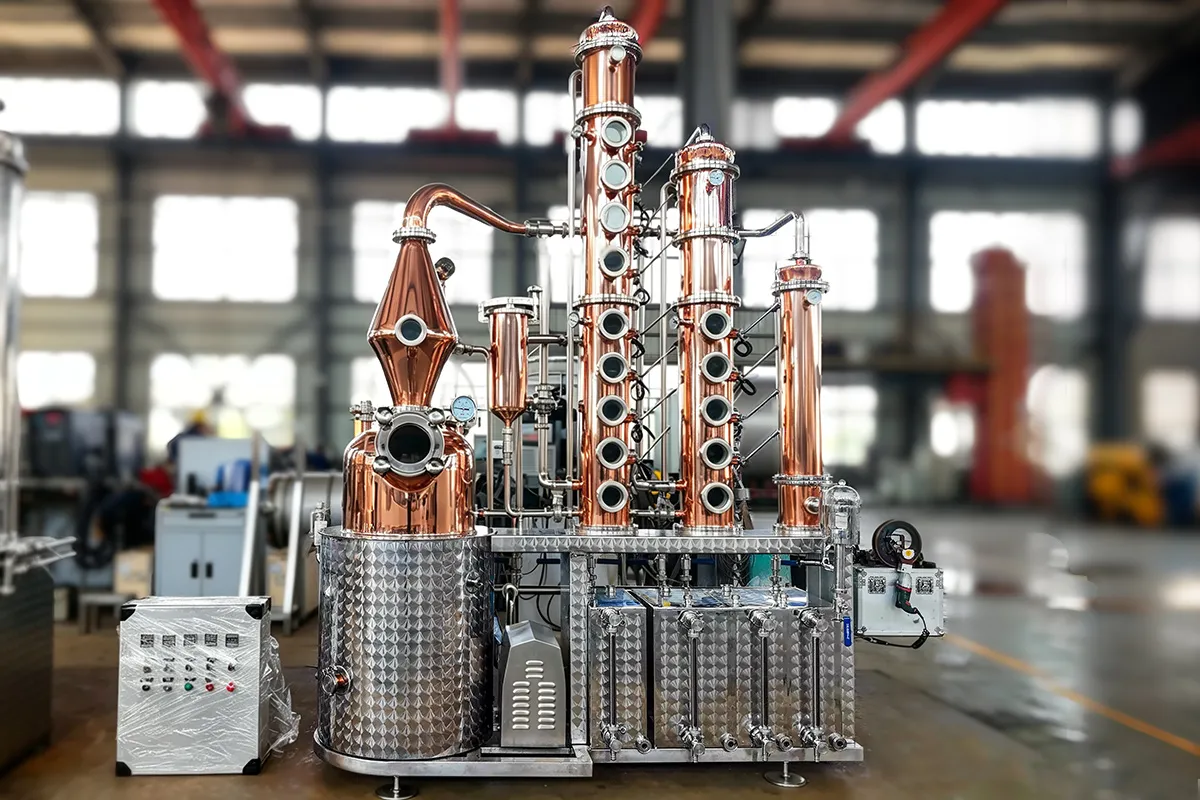

100L SUS304 stainless steel commercial distillation unit

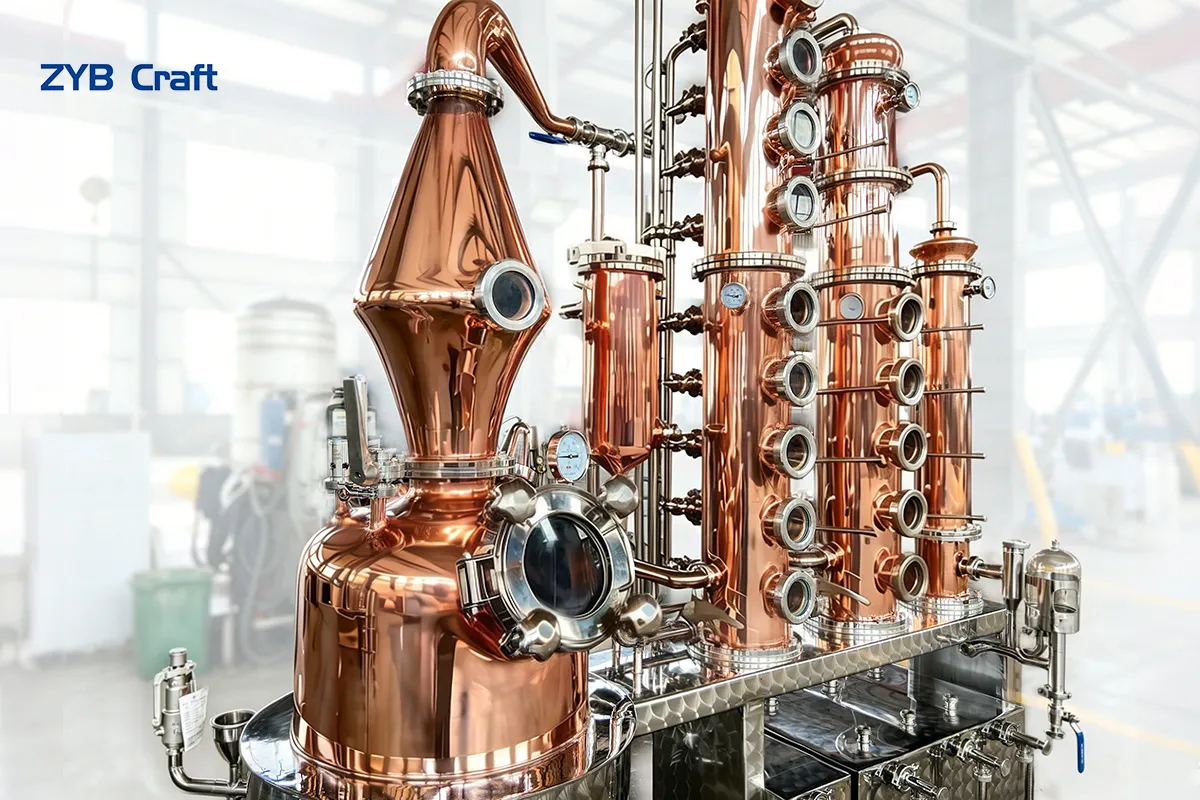

Multi purpose distiller for whiskey vodka gin and brandy production

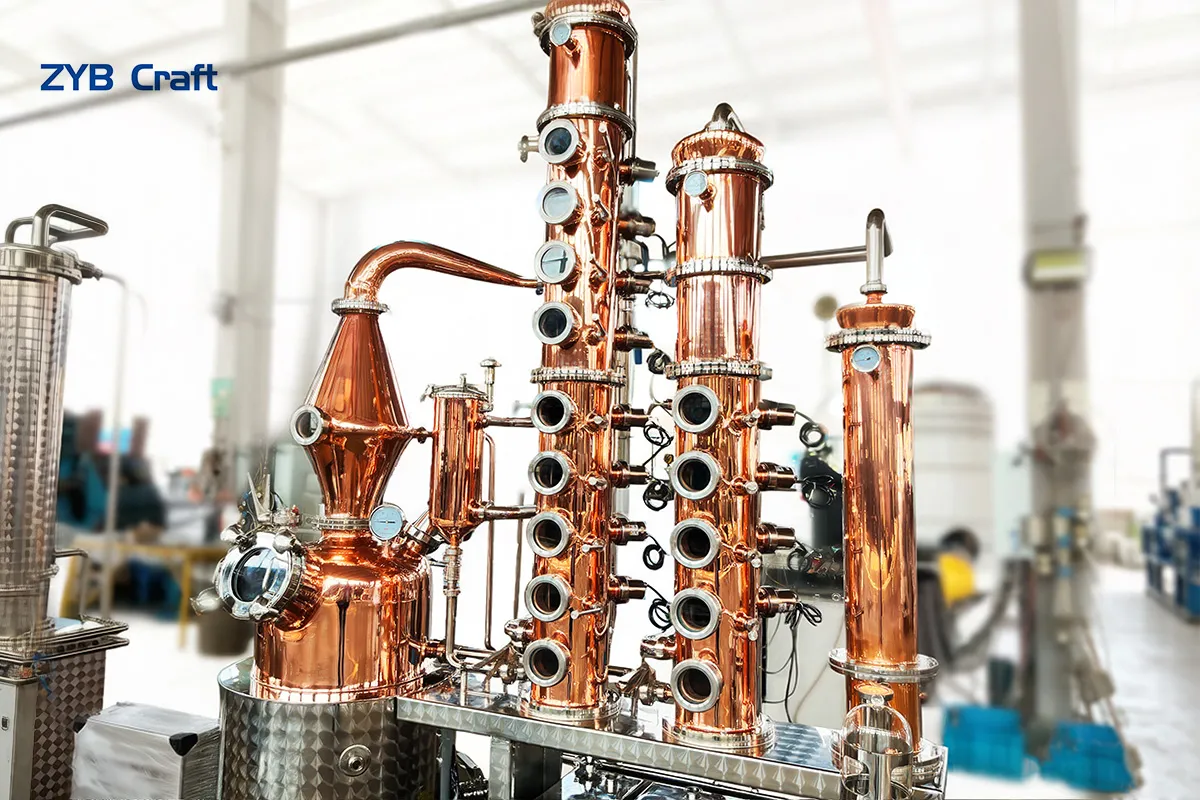

100L pilot distillation equipment with digital control panel

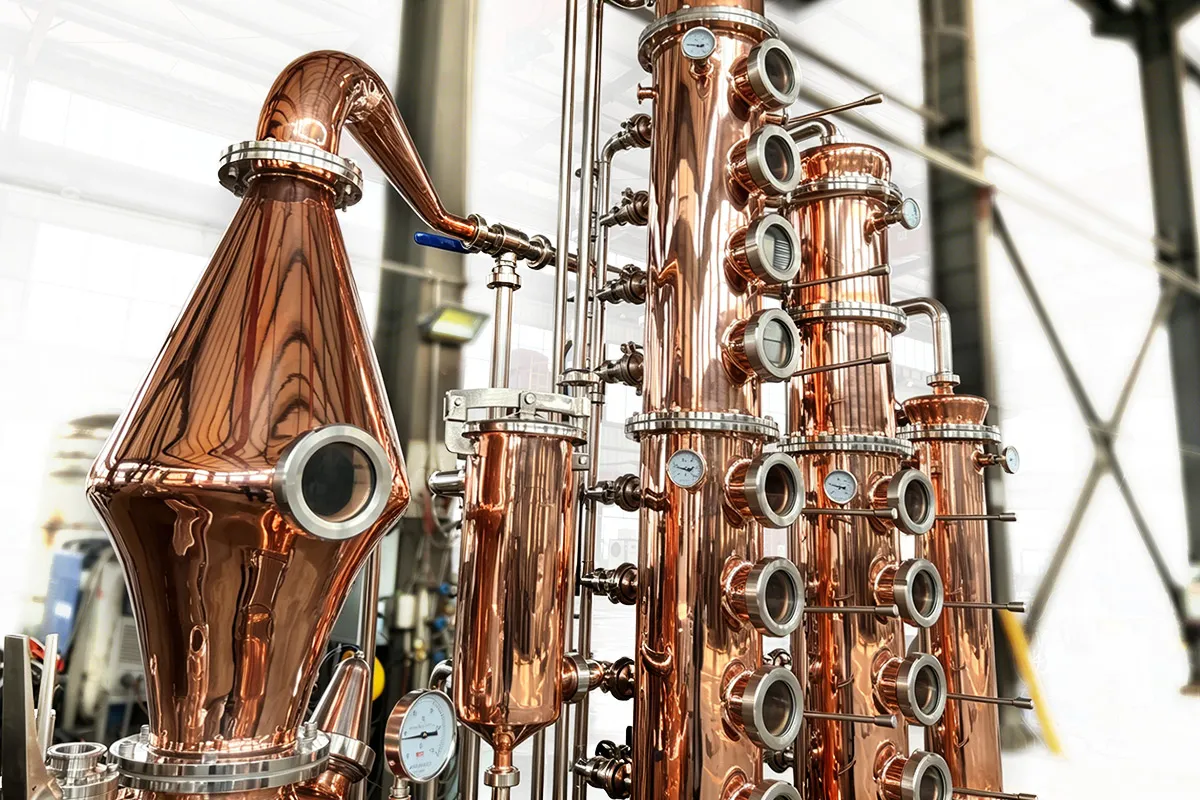

Small craft distillery system with complete accessories
100L Multi Functional Distillation Equipment
ZYB Craft 100L multi functional distillation equipment full system
100L SUS304 stainless steel commercial distillation unit
Multi purpose distiller for whiskey vodka gin and brandy production
100L pilot distillation equipment with digital control panel
Small craft distillery system with complete accessories

100L Multi Functional Distillation Equipment

    • SUS304 Stainless Steel Construction: Durable outer shell for long-lasting performance and easy cleaning

    • Versatile Multi-Function Design: Capable of distilling various spirits including whiskey, vodka, gin, brandy, rum and essential oils

    • Precise Process Control: Integrated control system allows accurate temperature monitoring and adjustment

    • Efficient Heating & Cooling: Optimized heating and condenser design for fast distillation cycles and energy savings

    • Modular Configuration: Flexible system design that can be upgraded and modified as your production grows

    • Comprehensive Safety Features: Equipped with pressure relief valve, overheat protection and emergency stop function

    • Easy Operation & Maintenance: User-friendly interface and accessible components for simple cleaning and upkeep

    • Complete Turnkey Solution: Includes all necessary accessories, installation guide and ongoing technical support

If you need help configuring a system to suit your needs,we will help you find the right one for you!
Request a Quote Leave a Message
Product Introduction
ZYB Craft 100L multi functional distillation equipment is expertly designed for small craft distilleries, micro-breweries, pilot production facilities and educational institutions. Constructed with a durable SUS304 stainless steel outer shell, this versatile system allows you to produce a wide range of premium spirits including whiskey, vodka, gin, brandy, rum and essential oils with consistent professional quality.
The modular design enables flexible configuration to meet your specific distillation requirements, while the integrated control system provides precise temperature and process control. The unit features efficient heating and cooling systems, ensuring fast distillation cycles and optimal energy efficiency. All components are carefully engineered and undergo rigorous quality testing to guarantee reliable performance. We provide complete installation guidance, detailed operation manuals and comprehensive after-sales support to help you get started quickly. Custom modifications are available to tailor the system to your unique production needs.
Standard Configuration

100L Multi Functional Distillation Equipment:

No.

Model

Descriptions

Quantity

1

Still Pot

Actual volume 155L, Working volume 100L
Inner pot: TP2 red copper, thickness: 3mm
Dished head: TP2 red copper, thickness: 3mm
Jacketed: SUS304, thickness: 4mm
Insulated: 50mm, PU
Stirring motor: explosion proof mixer 0.37KW/46rpm(IECEX，415V/50HZ/3PH)
Outer shell: SUS304 fish wave plate, thickness: 2mm
Temperature control: PT100
Heating method: Electric heating, 2*5KW heating rods
With φ200 glass manhole, cip   cleaning ball, thermometer, PT100, Interlayer water level gauge, safty valve,   1" Tri-clamp inlet, 24V sight light, 2"outfall, etc.

1

2

Swan neck

Material: TP2 red copper, thickness: 3mm
Connection method: flange connection, φ350*650mm
With cip cleaning ball, sight glass

1

3

Lyne arm

Material: TP2 red copper, thickness: 3mm
Connection method: flange connection
Angle: Up 10 °

1

4

Gin basket

Material: TP2 red copper, thickness: 3mm
Size: φ152×370mm
With φ152 man hole, CIP cleaning   ball, copper basket

1

5

Still Column-1

Material: TP2 red copper, thickness: 3mm;
Connection method: flange connection, φ200*1580mm
With 8 bubble plates and 9 sight glasses, each plates has copper bubble caps、CIP claning balls、check valves、Liquid level adjustment levers, 24v sight lights
With thermometer, reflux device

1

6

Still Column-2

Material: TP2 red copper, thickness: 3mm;
Connection method: flange connection, φ200*870mm
With 4 bubble plates and 5 sight glasses, each plates has copper bubble caps、CIP claning balls、check valves、Liquid level adjustment levers, 24v sight lights
With thermometer, reflux device

1

7

Katalysator

Material: TP2 red copper, thickness: 3mm;
Size: φ200×250mm;
With copper wire mesh

1

8

Dephlegmator

Material: TP2 red copper, thickness: 3mm (Shell and tube type)
Connection method: flange connection, φ200*250mm
With 1" tri-clamp cooling water inlet and outlet, thermometer, copper   cap

2

9

Condenser

Material: TP2 red copper, thickness: 3mm (Shell and tube type)
Connection method: flange connection, φ152*750mm
With 1" tri-clamp cooling water inlet and outlet, thermometer, copper   cap

1

10

Wine mouth

Material: SUS304 with glass bell jar
Can put an alcohol hydrometer to measure the alcohol content

1

11

Support frame

Material: SUS304 fish wave plate, thickness: 3mm
Used to support column, gin basket, condenser

1

12

CIP pump

Material: Stainless steel SUS304(IECEX, 415V/50HZ/3PH)
CIP cleaning device
Come with 0.75KW explosion proofing Pump,
Come with all necessary vlaves and fittings to all of pot and each
The main function is to clean the still inner pot, sawn neck, column,   dephlegmator, gin basket, condenser

1

13

Hot water tank

Material: SUS304 fish wave plate
thickness: 3mm
Volume: 40L/40L/60L
With liquid level gauge, pressure relief valve, and drain valve

1

14

Receiving tanks

Material: SUS304 fish wave plate
thickness: 3mm
Volume: 40L
With liquid level gauge, pressure relief valve, and drain valve

1

15

Control box

Material: SUS304; Manual button type(non-explosion-proof)
Control the mixing motor switch, CIP cleaning pump switch, sight lights   switch, PT100, heating rods switch

1

16

packing

2*export wooden boxes packaging:
L2500*W1365*H1570mm, ~500kg
L1240*W850*H1400mm, ~300kg

1
