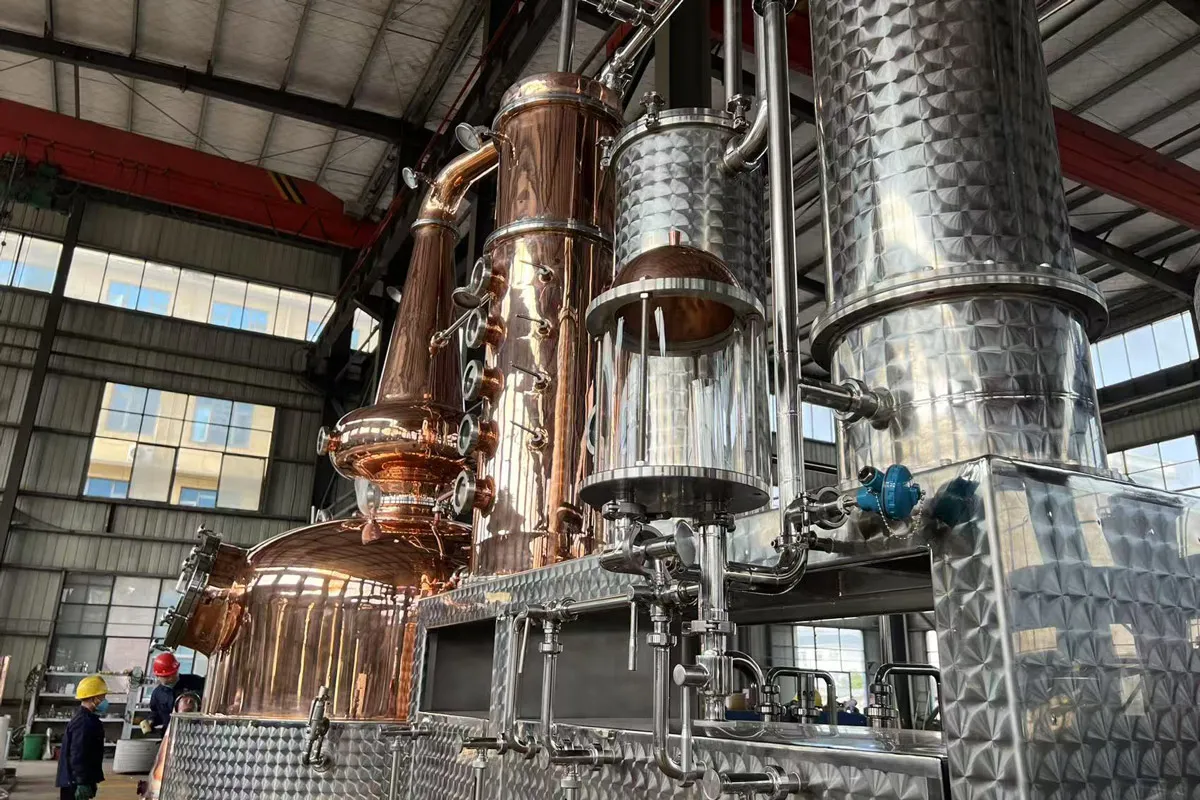

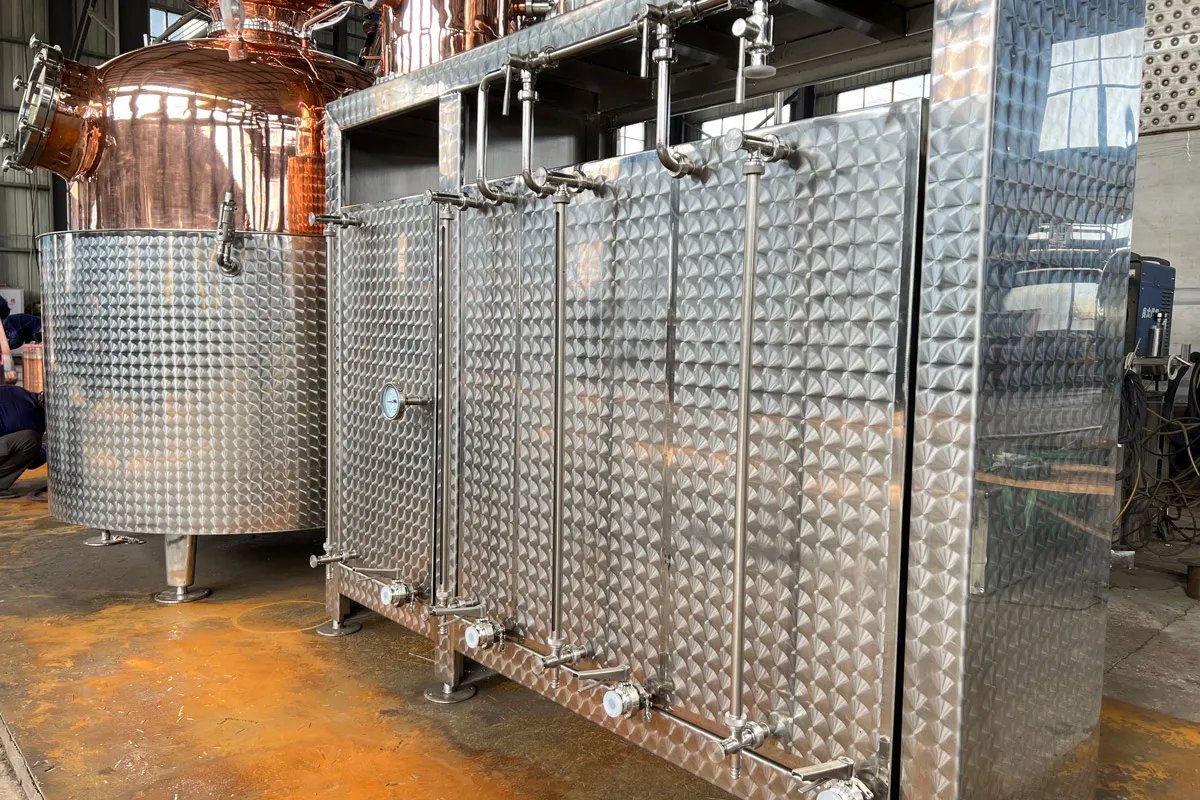

2000L Multi Functional Distillation Equipment

No.

Model

Descriptions

Quantity

1

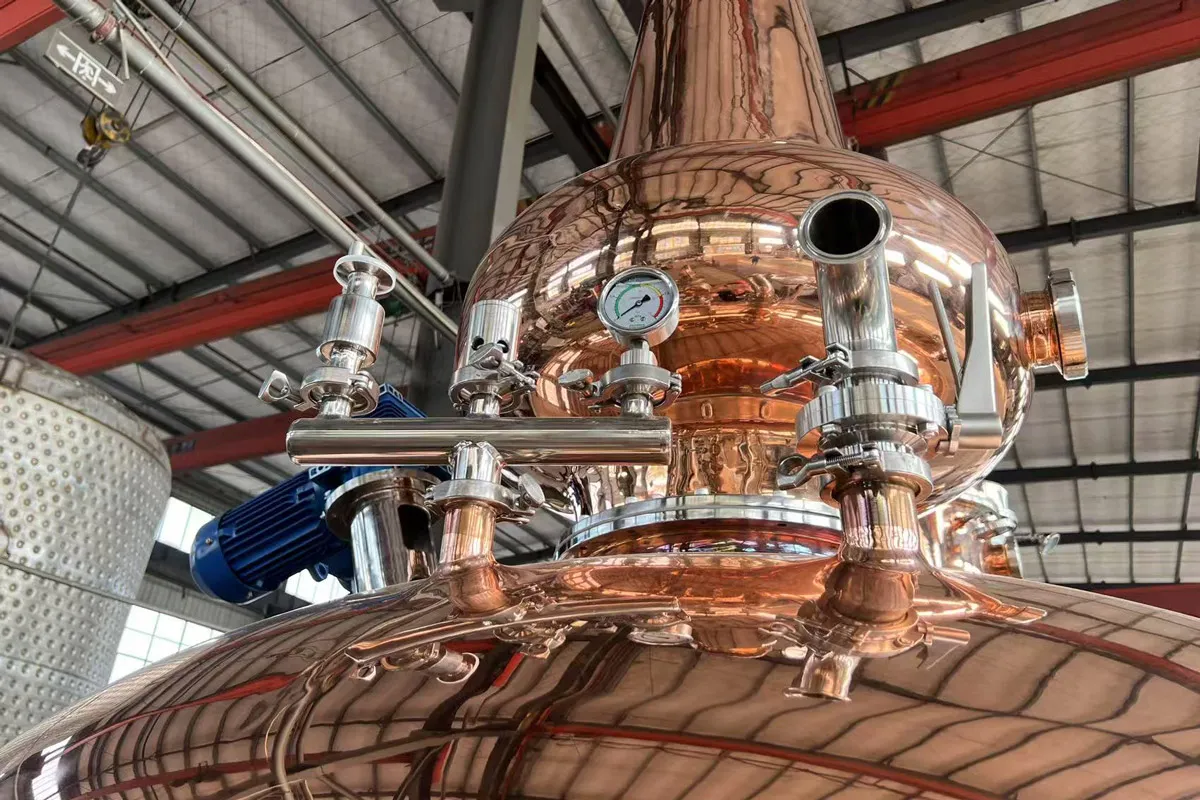

Still pot

Actual   volume: 2650L,Working volume: 2000L;

Inner   pot:red copper TP2 ,thickness:5m;

Dished head:red copper   Tp2,thickness:   5m;

Jacketed:SUS304,thickness: 5mm;

Insulated:50mm,PU;

Stirring   motor:explosion proof mixer 1.5KW/46rpm(EX) ;

Outer   shell:SUS304,thickness:2mm;

Temperature   control: PT100;

Heating   method:Steam heating;

With   glass manhole,cip cleaning ball,safty valve,sight light etc.

1

2

Swan neck(pear   shaped type)

Material:red copper TP2,   thickness: 3mm;

Connection method: φ800*1800mm;

With sight glass, CIP   claning ball.

1

3

Lynn arm

Material:red copper TP2,   thickness:3mm;

Connection method: φ133*2050mm.

1

4

Condenser

Material: red copper TP2,   thickness: 3mm (Shell and tube type);

Connection method: flange   connection, φ400*2000mm;

With 2" tri-clamp   cooling water inlet and outlet, thermometer, copper cap, CIP claning ball.

1

5

Spirits outlet

Material: SUS304 with Large   glass, glass thicknes: 5mm, with copper dust cover;

Can put an alcohol   hydrometer to measure the alcohol content

1

6

Bracket

Material: SUS304

1

7

Control box

Material: SUS304;

Used to correlate solenoid   valves and PT100 temperature.

1
