300L Multi Functional Distillation Equipment Version 1
ZYB Craft's 300L multi functional distillation equipment V1 is designed for medium craft distilleries. Produce whiskey, vodka, gin and more with consistent professional quality. Request a free quote now.
Home >> Products >> Distillery >> Distillery
300L Multi Functional Distillation Equipment Version 1
ZYB Craft 300L multi functional distillation equipment V1 full system
300L multi purpose distiller for whiskey vodka gin production
300L industrial distillation equipment with digital control panel
Medium craft distillery distillation system complete set
300L Multi Functional Distillation Equipment Version 1

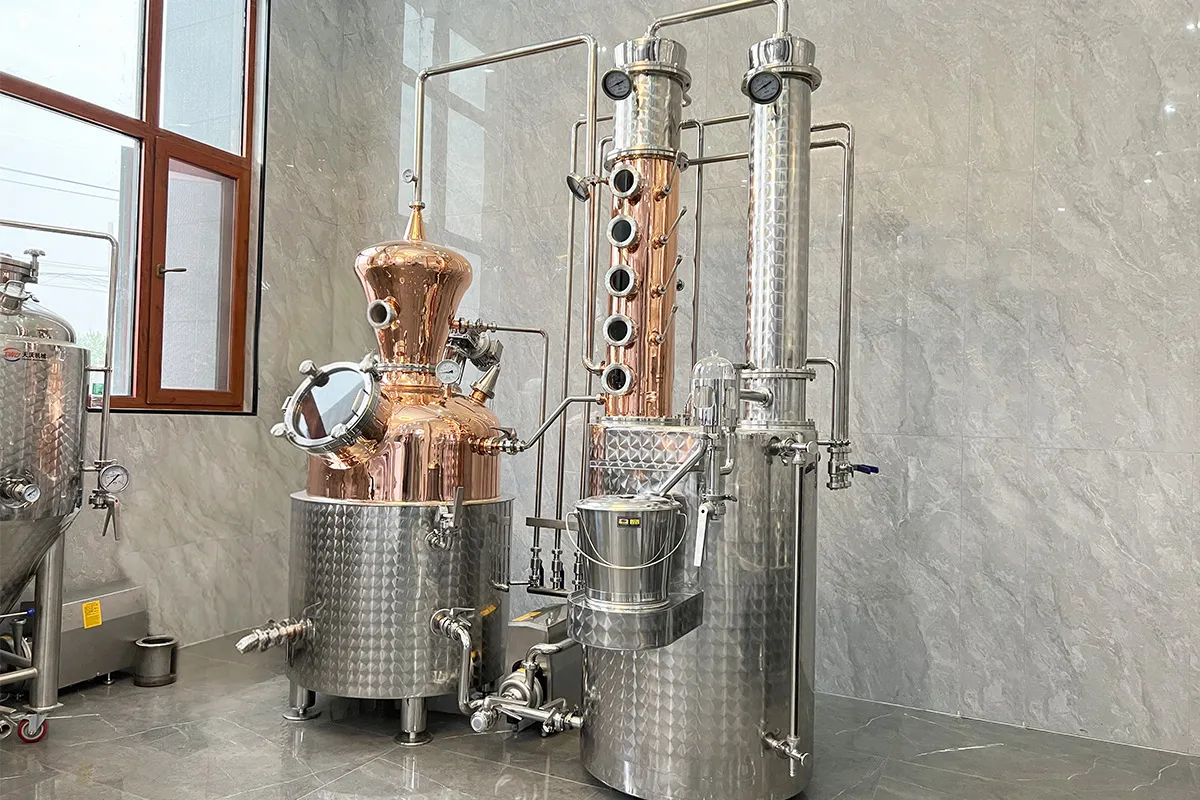

ZYB Craft 300L multi functional distillation equipment V1 full system

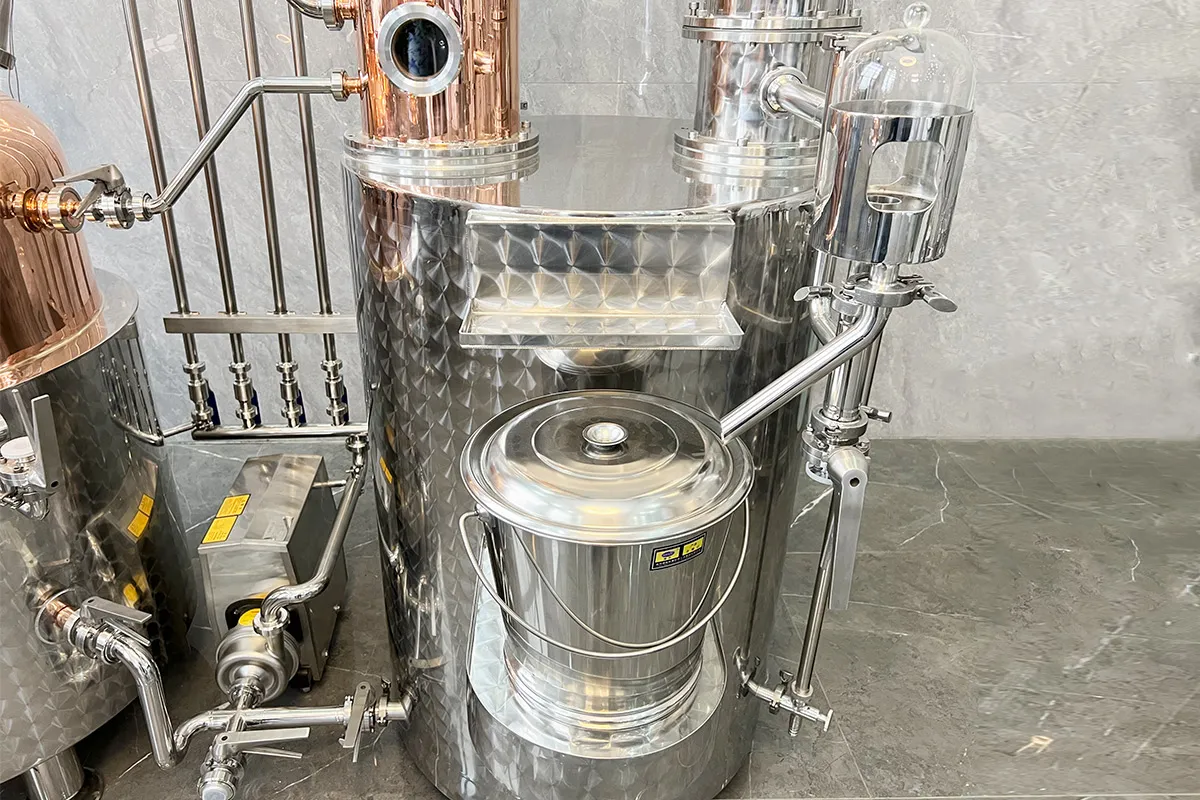

300L multi purpose distiller for whiskey vodka gin production

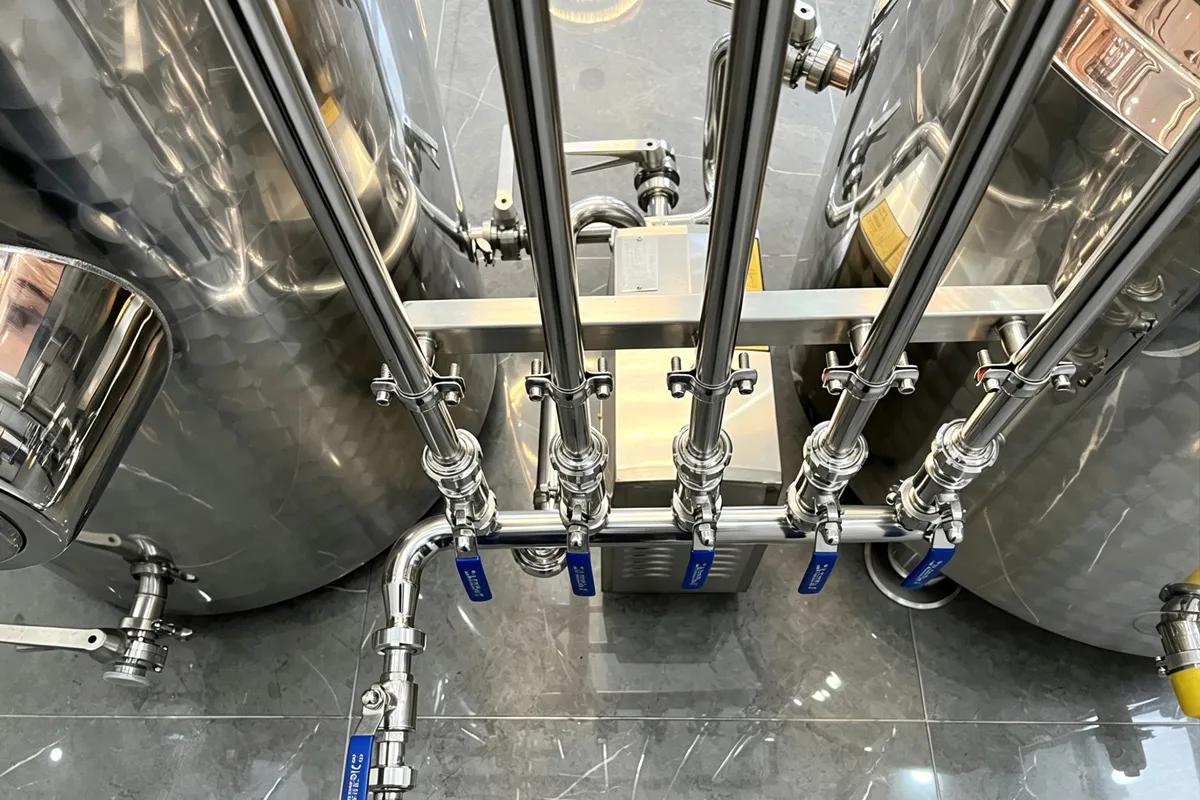

300L industrial distillation equipment with digital control panel

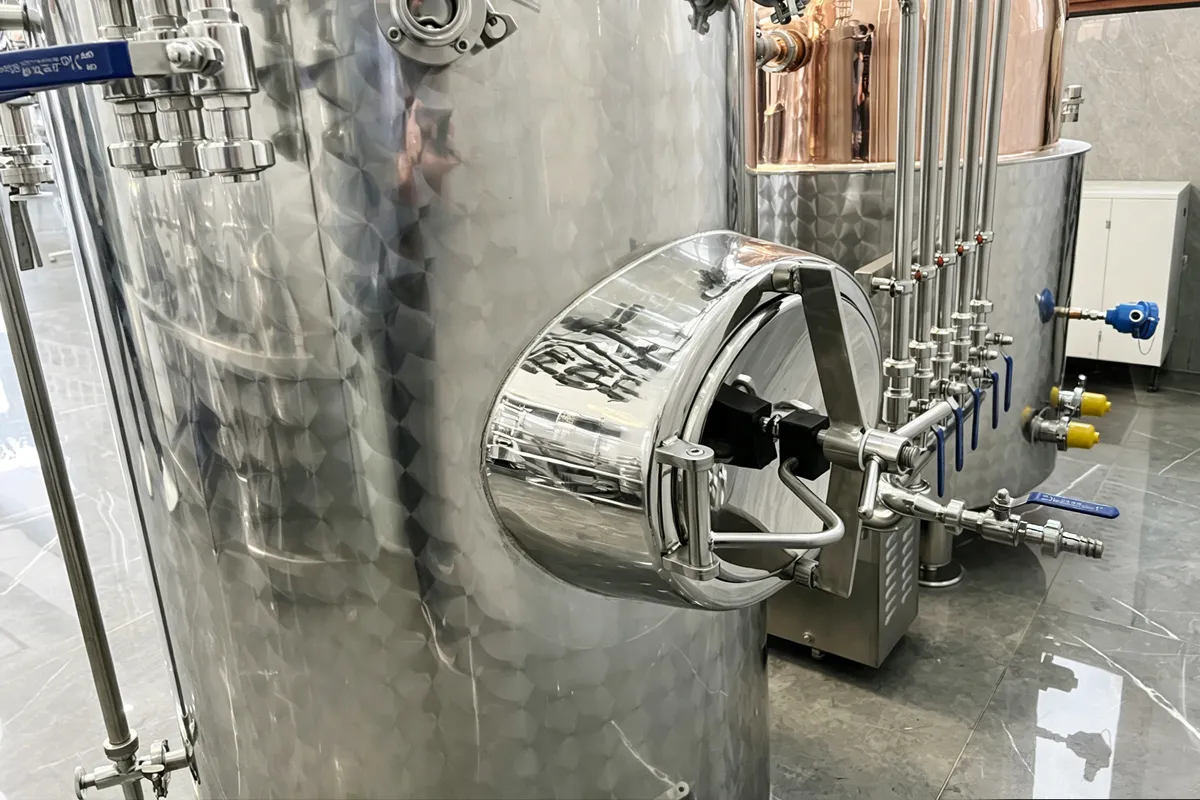

Medium craft distillery distillation system complete set

300L Multi Functional Distillation Equipment Version 1

    • SUS304 Stainless Steel Construction: Durable outer shell for long-lasting performance and easy sanitization

    • Versatile Multi-Function Design: Capable of producing various spirits and essential oils to meet diverse market demands

    • Advanced Process Control: Integrated digital system for accurate temperature monitoring and precise process adjustment

    • High-Efficiency Heating & Cooling: Optimized design for faster distillation cycles and reduced energy costs

    • Modular Configuration: Flexible system that can be upgraded and expanded as your production capacity grows

    • Comprehensive Safety Features: Equipped with pressure relief valve, overheat protection and emergency stop function

    • Easy Operation & Maintenance: User-friendly interface and accessible components for simplified cleaning and upkeep

    • Full Turnkey Support: Includes complete accessories, installation guide, operator training and lifetime technical assistance

If you need help configuring a system to suit your needs,we will help you find the right one for you!
Request a Quote Leave a Message
Product Introduction
ZYB Craft 300L multi functional distillation equipment Version 1 is expertly engineered for medium-sized craft distilleries, micro-breweries and commercial spirits production facilities. Constructed with a robust SUS304 stainless steel outer shell, this versatile system supports the production of a wide range of premium spirits including whiskey, vodka, gin, brandy, rum and essential oils with consistent batch-to-batch quality.
The modular design allows for flexible configuration to match your specific production needs, while the integrated advanced control system delivers precise temperature and process monitoring. The unit features high-efficiency heating and cooling systems that reduce cycle times and optimize energy consumption. All components are manufactured to strict quality standards and undergo comprehensive testing before shipment. We provide full turnkey support including installation guidance, operator training and ongoing technical assistance. Custom modifications are available to tailor the system to your unique production requirements.
Standard Configuration

300L Multi   Functional Distillation Equipment:

No.

Model

Descriptions

Quantity

1

Still Pot

Actual volume440L, Working volume300L;
Inner pot: TP2 red copper, thickness：3m；
Dished head: TP2 red copper, thickness：3m;
Jacketed: SUS304, thickness: 4mm;
Insulated: 50mm, PU;
Stirring motor: explosion proof mixer 0.37KW/46rpm(EX)
Outer shell: SUS304, thickness: 2mm;
Temperature control: PT100;
Heating method: 2*15KW electric heating rods
With glass manhole, cip cleaning ball, safty valve, sight light etc.

1

2

Copper head(Onion type)

Material：TP2 red copper, thickness：3mm；
Connection method: φ250*500*700mm；
With cip cleaning ball, sight glass;

1

3

Still Column

Material: TP2 red copper, thickness: 3mm;
Connection method: flange connection, φ250*960mm
With 4 bubble plates and 5 sight glasses, each plates has copper bubble caps、CIP claning balls、check valves、Liquid level adjustment levers
With thermometer, reflux device

1

4

Dephlegmator

Material: SUS304, thickness: 3mm; (Shell and tube type)
Connection method: φ250*300mm;
With 1" tri-clamp cooling water inlet and outlet, thermometer;

1

5

Condenser

Material: SUS304, thickness: 3mm (Shell and tube type)
Connection method: flange connection, φ200*1200mm
With 1" tri-clamp cooling water inlet and outlet, thermometer

1

6

Wine mouth

Material: SUS304 with glass bell jar
Can put an alcohol hydrometer to measure the alcohol content

1

7

CIP pump

Material: Stainless steel SUS304
CIP cleaning device
Come with 0.75KW explosion proofing Pump,
Come with all necessary vlaves and fittings to all of pot and each
The main function is to clean the still inner pot, copper head, column,   dephlegmator, condenser

1

8

Hot water tank

Material: SUS304 fish wave plate
thickness: 3mm
Volume: 500L
With liquid level gauge, pressure relief valve, and drain valve

1

9

Control box

Material: SUS304; Manual button type(non-explosion-proof)
Control the mixing motor switch, CIP cleaning pump switch, sight lights   switch, PT100, heating rods switch

1

10

packing

2*export wooden boxes packaging:
L1100*W1100*H2400mm, ~400kg
L1400*W1000*H1600mm, ~220kg

1
