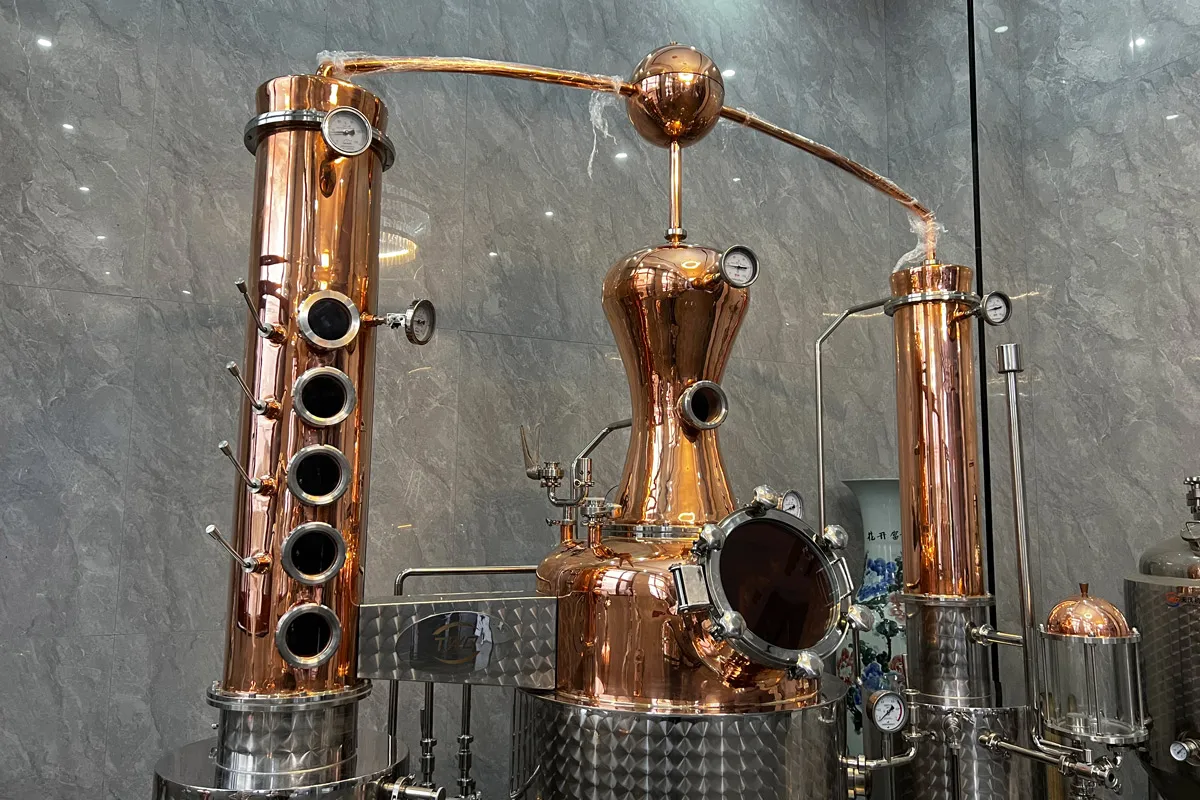

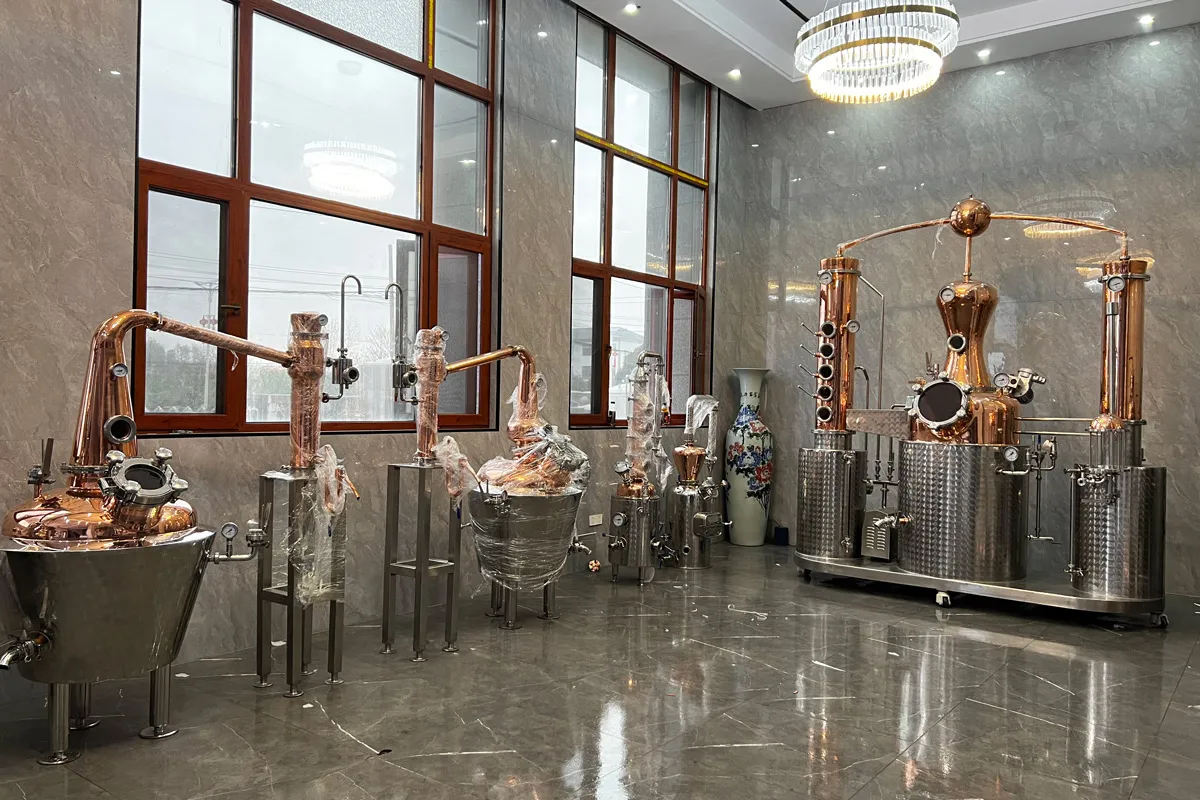

300L Multi Functional Distillation Equipment Version 2

No.

Model

Descriptions

Quantity

1

Still Pot

Actual volume470L, Working volume300L;
Inner pot: TP2 red copper, thickness：3m；
Dished head: TP2 red copper, thickness：3m;
Jacketed: SUS304, thickness: 4mm;
Insulated: 50mm, PU;
Stirring motor: explosion proof mixer 0.37KW/46rpm(EX)
Outer shell: SUS304, thickness: 2mm;
Temperature control: PT100;
Heating method: 2*15KW electric heating rods
With glass manhole, cip cleaning ball, safty valve, sight light etc.

1

2

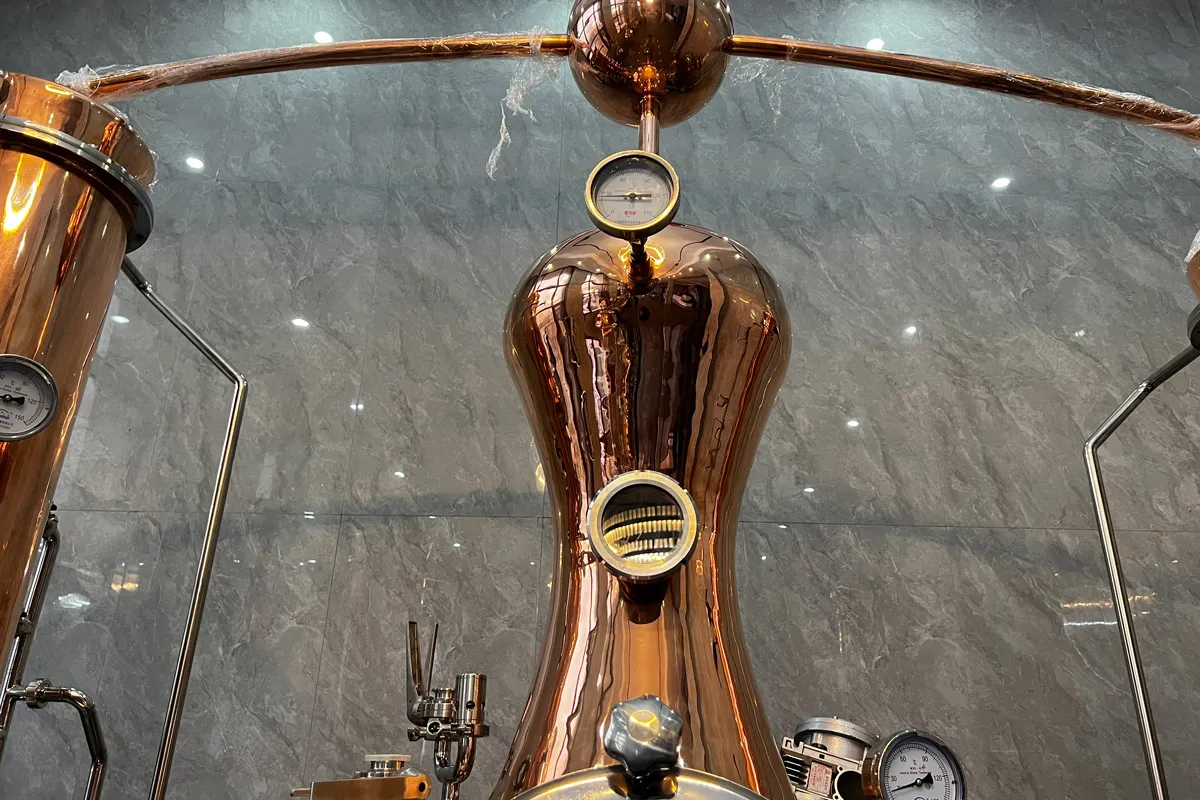

Copper head(Onion type)

Material：TP2 red copper, thickness：3mm；
Connection method: φ400*450*860mm；
With cip cleaning ball, sight glass, thermometer;

1

3

Still Column

Material: TP2 red copper, thickness: 3mm;
Connection method: flange connection, φ300*960mm
With 4 bubble plates and 5 sight glasses, each plates has copper bubble caps、CIP claning balls、check valves、Liquid level adjustment levers
With thermometer, reflux device

1

4

Dephlegmator

Material: TP2 red copper, thickness: 3mm; (Shell and tube type)
Connection method: φ300*400mm;
With 1" tri-clamp cooling water inlet and outlet, thermometer, copper   cap, CIP claning ball;

1

5

Condenser

Material: TP2 red copper, thickness: 3mm (Shell and tube type)
Connection method: flange connection, φ250*1000mm
With 1" tri-clamp cooling water inlet and outlet, thermometer, copper   cap, CIP claning ball

1

6

Wine mouth

Material: SUS304 with Large glass, glass thicknes: 5mm, with copper dust   cover
Can put an alcohol hydrometer to measure the alcohol content

1

7

CIP pump

Material: Stainless steel SUS304
CIP cleaning device
Come with 0.75KW explosion proofing Pump,
Come with all necessary vlaves and fittings to all of pot and each
The main function is to clean the still inner pot, copper head, column,   dephlegmator, condenser, hot water tank, receiving tank

1

8

Hot water tank

Material: SUS304 fish wave plate
thickness: 3mm
Volume: 150L
With liquid level gauge, pressure relief valve, and drain valve, CIP claning   ball

1

9

Receiving tanks

Material: SUS304 fish wave plate
thickness: 3mm
Volume: 150L
With liquid level gauge, pressure relief valve, and drain valve, CIP claning   ball

1

10

Control box

Material: SUS304; Manual button type(non-explosion-proof)
Control the mixing motor switch, CIP cleaning pump switch, sight lights   switch, PT100, heating rods switch

1

11

packing

2*export wooden boxes packaging:
L2800*W1300*H2200mm, ~420kg
L1200*W650*H1800mm, ~240kg

1
