3200L Pot Distillation Equipment

No.

Model

Descriptions

Quantity

1

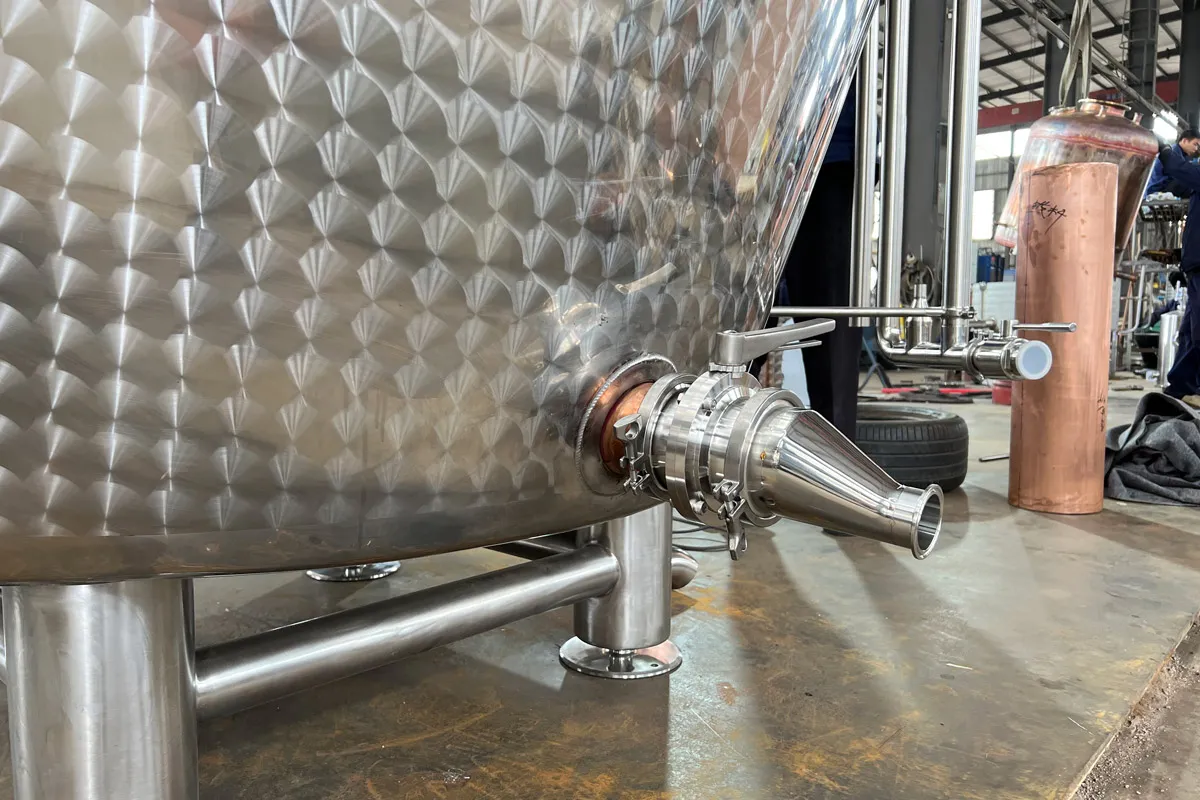

Still pot

Actual volume3700L, Working volume3200L;
Inner pot: red copper TP2, thickness: 5m；
Dished head: red copper Tp2, thickness：5m;
Jacketed: SUS304, thickness: 5mm;
Insulated: 50mm, PU;
Outer shell: SUS304, thickness: 2mm;
Temperature control: PT100;
Heating method: Steam heating

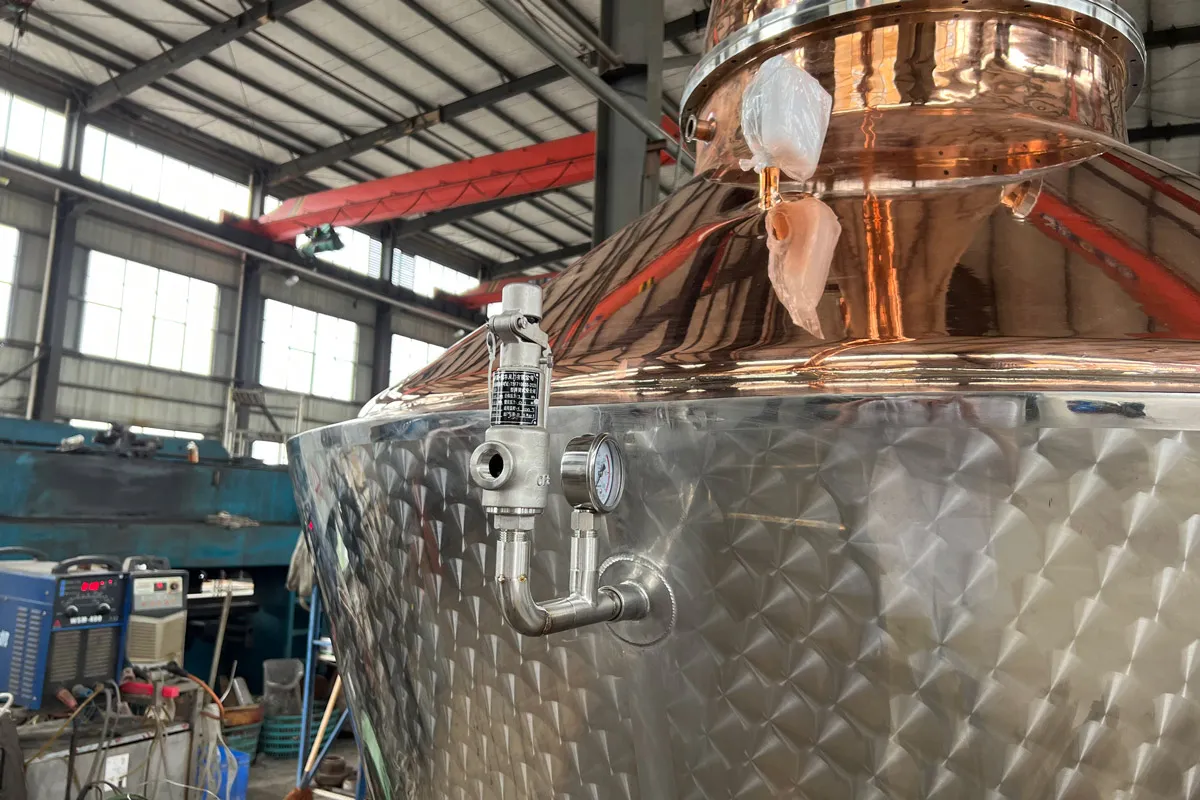

With glass manhole, cip cleaning ball, safty valve, sight light etc.

1

2

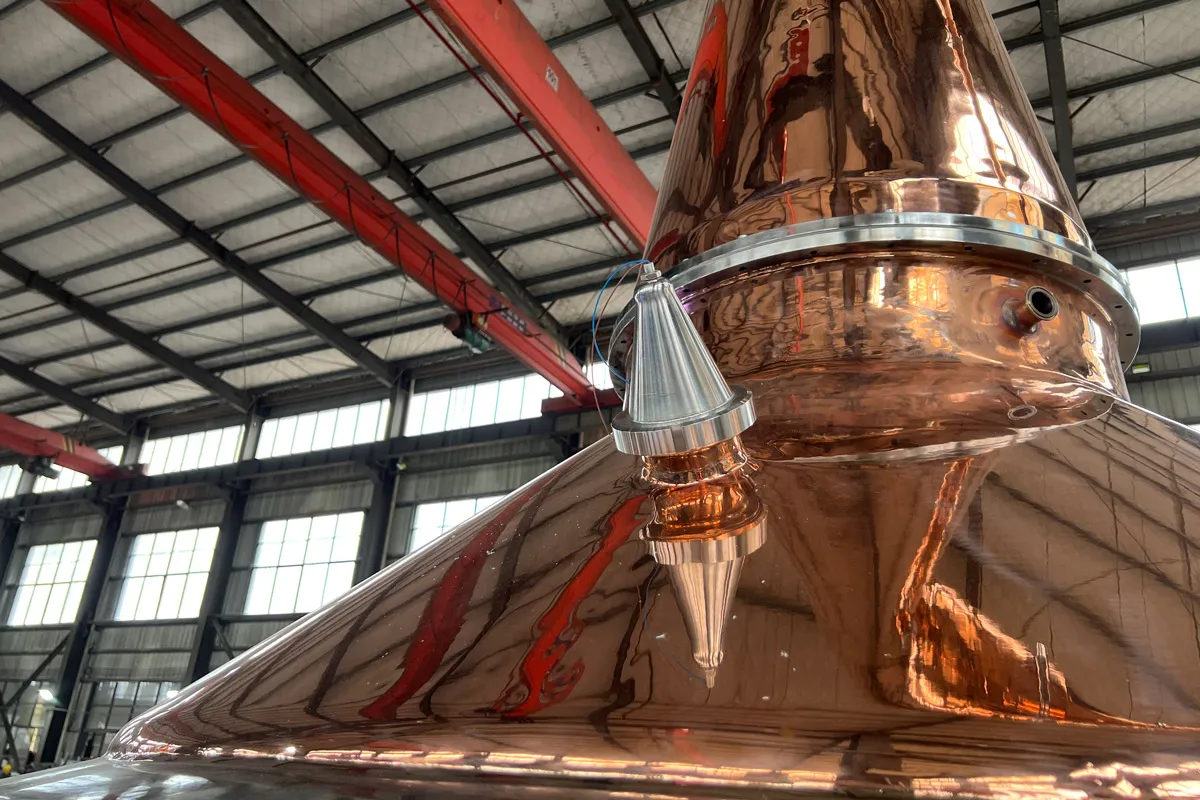

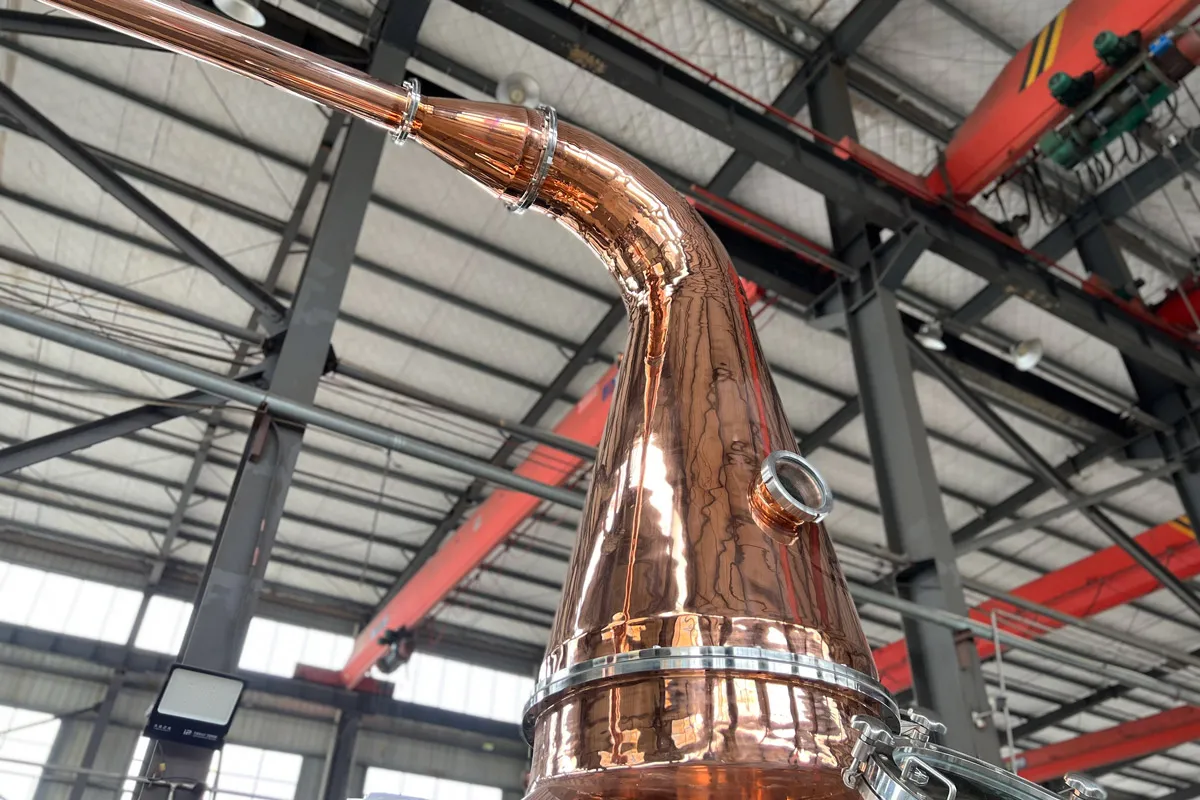

Swan neck(pear shaped type)

Material：red copper TP2, thickness：3mm；
Connection method: φ800*1800mm；
With sight glass, CIP claning ball ;

1

3

Lynn arm

Material：red copper TP2, thickness：3mm；
Connection method: φ133*2050mm；

1

4

Condenser

Material: red copper TP2, thickness: 3mm (Shell and tube type)
Connection method: flange connection, φ400*2000mm
With 2" tri-clamp cooling water inlet and outlet, thermometer, copper   cap, CIP claning ball

1

5

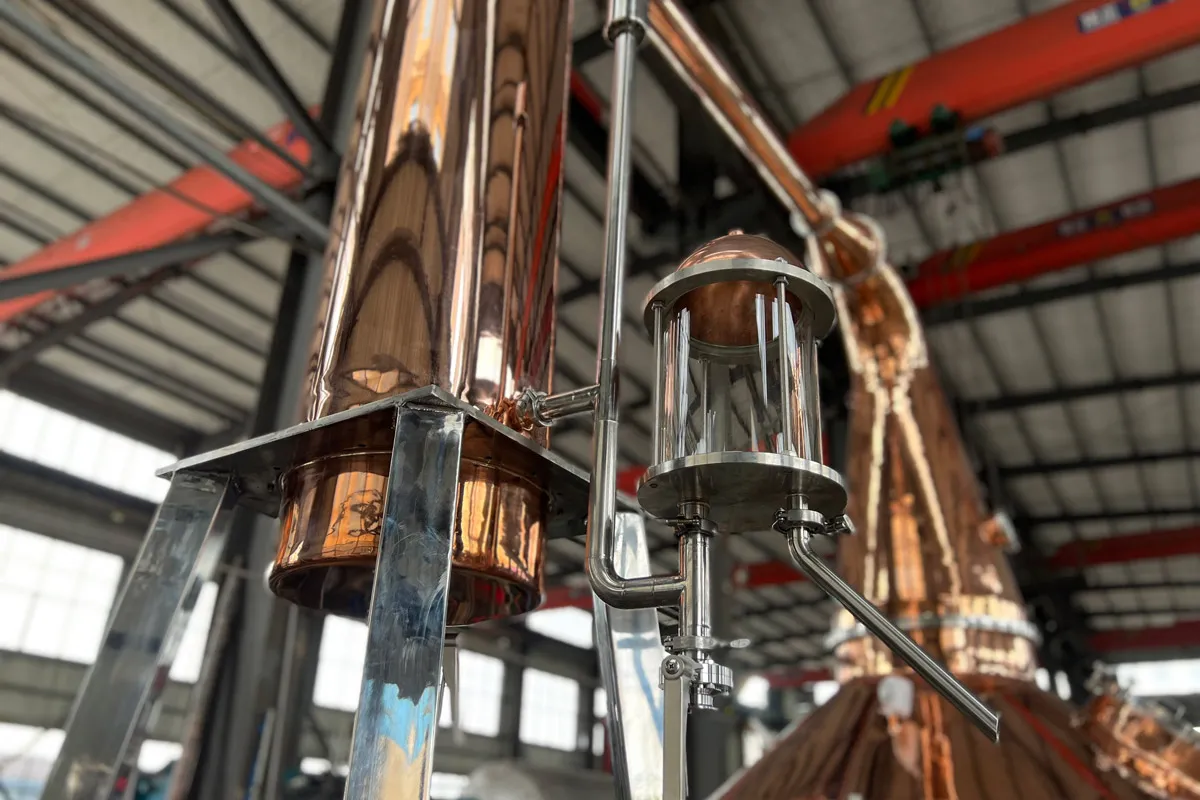

Spirits outlet

Material: SUS304 with Large glass, glass thicknes: 5mm, with copper dust   cover
Can put an alcohol hydrometer to measure the alcohol content

1

6

Bracket

Material: SUS304

1

7

Control box

Material: SUS304;
Used to correlate solenoid valves and PT100 temperature

1
