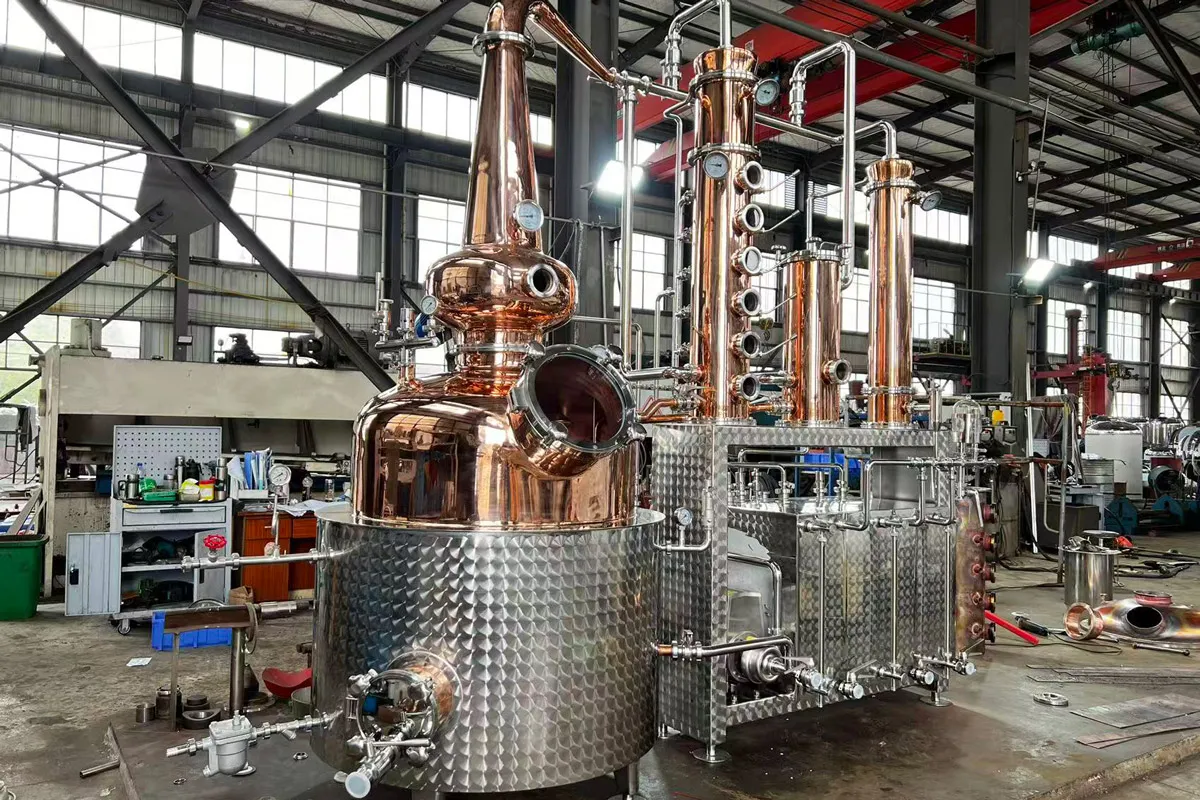

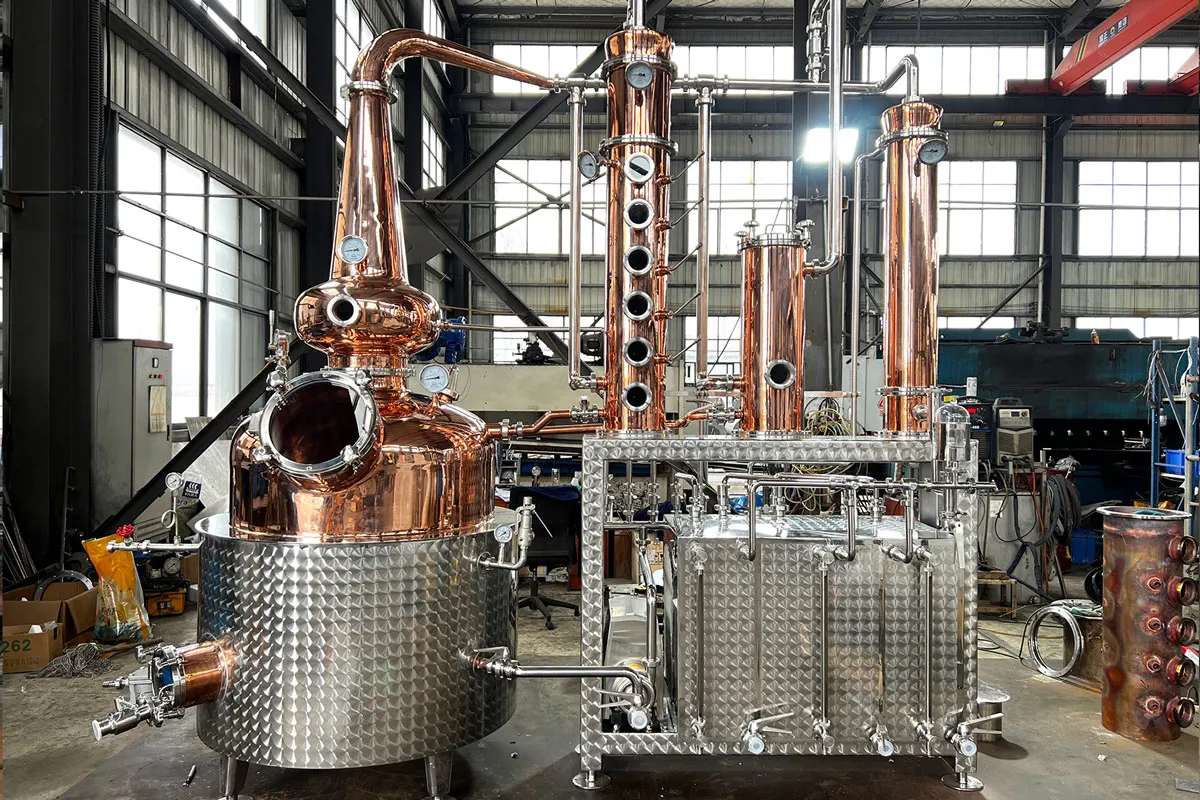

500L Multi Functional Distillation Equipment

No.

Model

Descriptions

Quantity

1

Still Pot

Actual volume750L, Working volume500L;
Inner pot: red copper TP2, thickness: 4m；
Dished head: red copper Tp2, thickness：4m;
Jacketed: SUS304, thickness: 4mm;
Insulated: 50mm, PU;
Stirring motor: explosion proof mixer 0.75KW/46rpm(EX) ;
Outer shell: SUS304, thickness: 2mm;
Temperature control: PT100;
Heating method: Steam heating
With glass manhole, cip cleaning ball, safty valve, sight light etc.

1

2

Swan neck(lantern type)

Material：red copper TP2, thickness：3mm；
Connection method: φ300*550*1100mm；
With cip cleaning ball, sight glass;

1

3

Lynn arm

Material：red copper TP2, thickness：3mm；

1

4

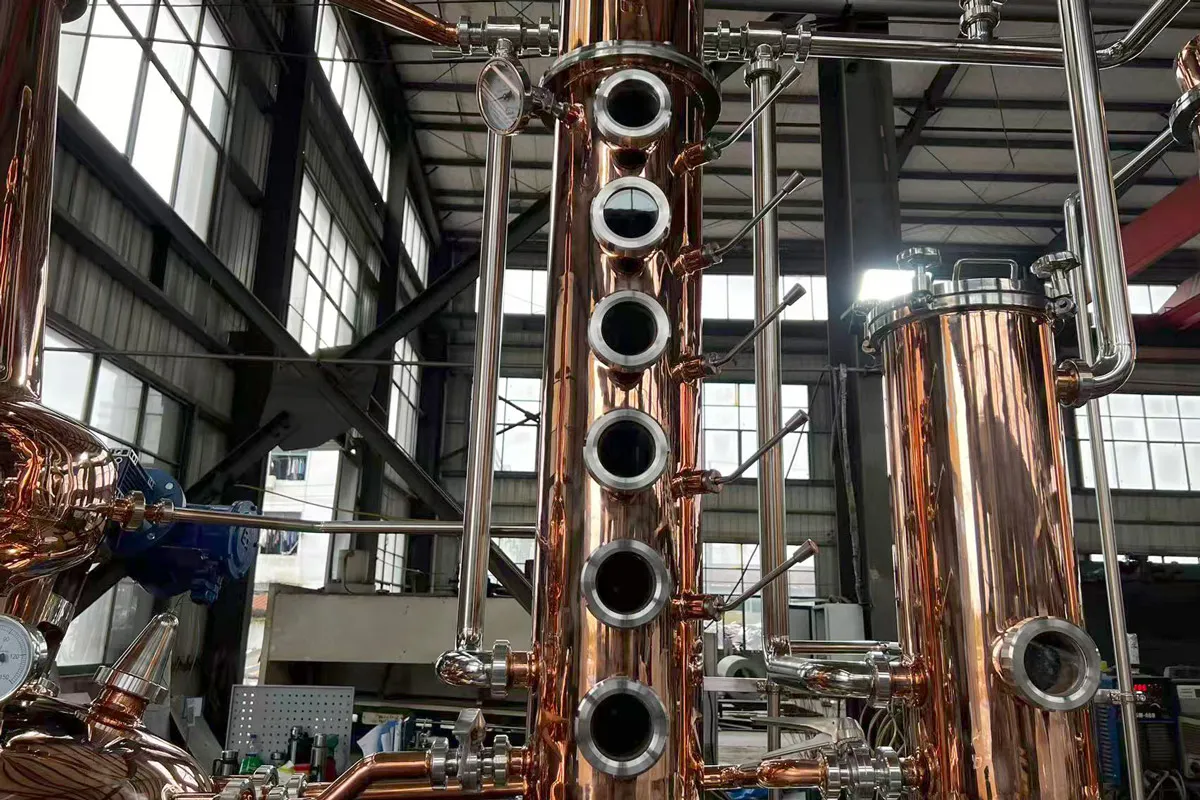

Still Column

Material: red copper TP2, thickness: 3mm;
Connection method: flange connection, φ300*1160mm
With 5 bubble plates and 6 sight glasses, each plates has copper bubble caps、CIP claning balls、check valves、Liquid level adjustment levers
With thermometer, reflux device

1

5

Dephlegmator

Material: red copper TP2, thickness: 3mm; (Shell and tube type)
Connection method: φ300*350mm;
With cooling water inlet and outlet;

1

6

Gin basket

Material: red copper TP2, thickness: 3mm
Size: φ300×820mm
With φ300 man hole, CIP cleaning   ball, copper basket, sight glass

1

7

Condenser

Material: red copper TP2, thickness: 3mm (Shell and tube type)
Connection method: flange connection, φ250*1000mm
With 1" tri-clamp cooling water inlet and outlet, thermometer, copper   cap, CIP claning ball

1

8

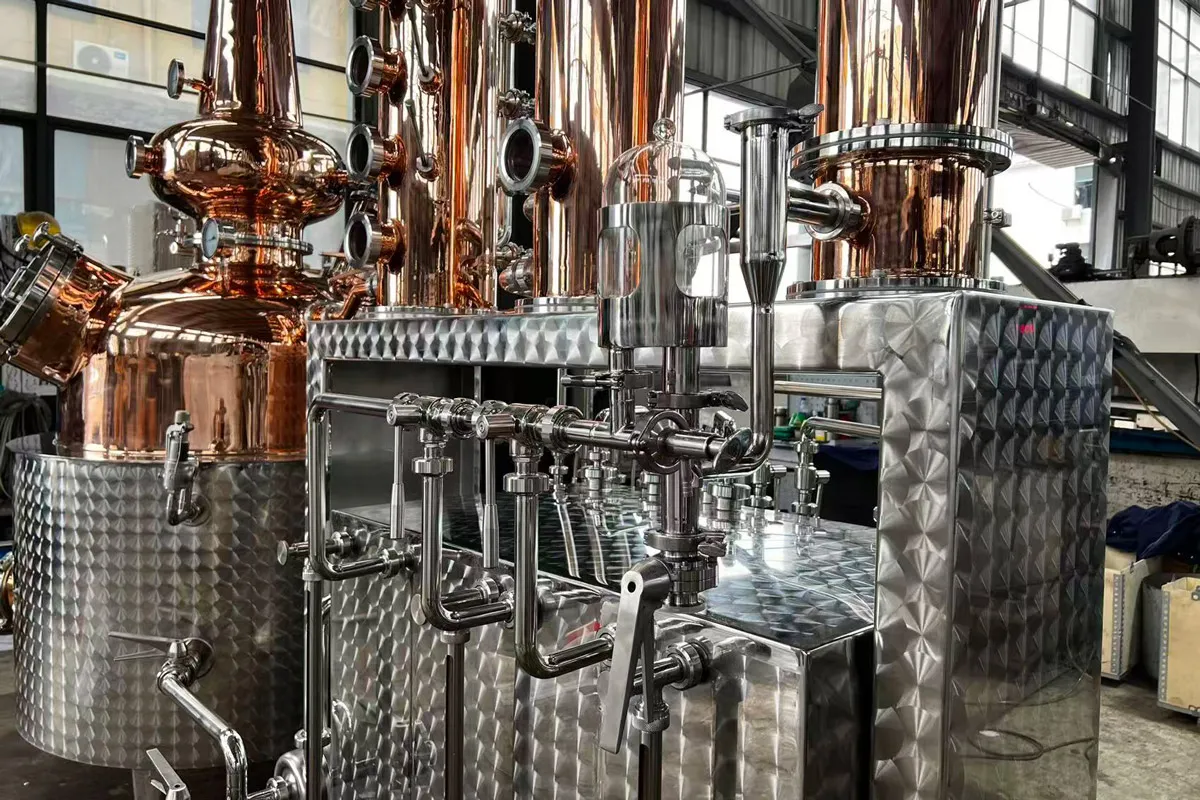

Spirits outlet

Material: SUS304 with glass bell jar;
Can put an alcohol hydrometer to measure the alcohol content;

1

9

CIP pump

Category: Sanitary centrifugal pump
Power: 0.75KW (explosion-proof)
Flow rate: 3T/H, head 24m
Workingmedium: water
Working temperature: 10-100℃
Features: Can clean the distillation kettle, copper head, column, gin basket,   dephlegmator, condenser, recei;

1

10

Bracket

Material: SUS304, thickness: 3mm;

1

11

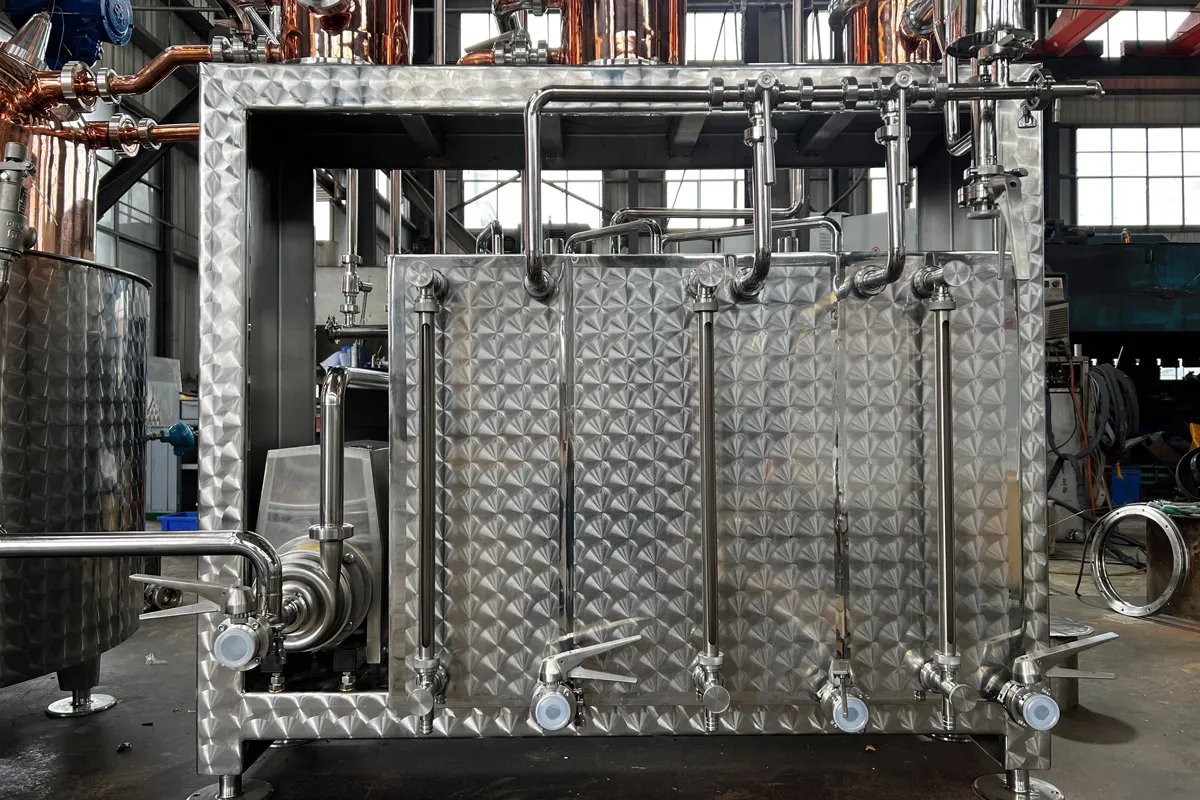

Receiving tank

Material: SUS304 fish wave plate
thickness: 3mm
Volume: 100L/150L/200L
With liquid level gauge, pressure relief valve, and drain valve

1

12

Control box

Material: SUS304; (Manual button type)
PT100, motor switch, CIP pump switch, sight light switch.

1

13

packing

3*export wooden boxes packaging:
L1640*W1640*H2100mm, ~650kg
L1250*W840*H1600mm, ~240kg
L1870*W620*H1450mm, ~330kg

1
