Bath Pasteurizer

Industrial water bath pasteurizer constructed with SUS304 stainless steel. Delivers precise low-temperature pasteurization for bottled & canned beer, dairy, juice and packaged food. Customizable capacity, energy-efficient design to extend product shelf life.

Home >> Products >> Pasteurization >> Bath Pasteurizer

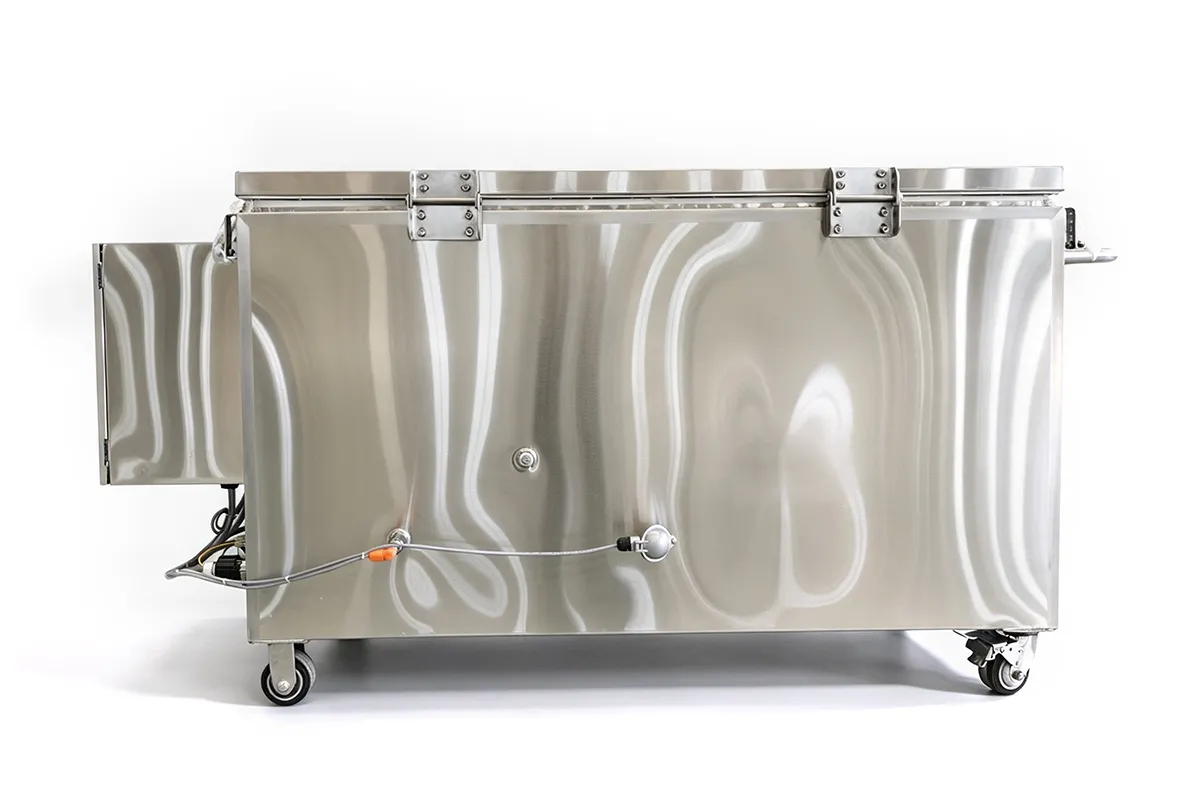

Full view of industrial SUS304 water bath pasteurizer machine

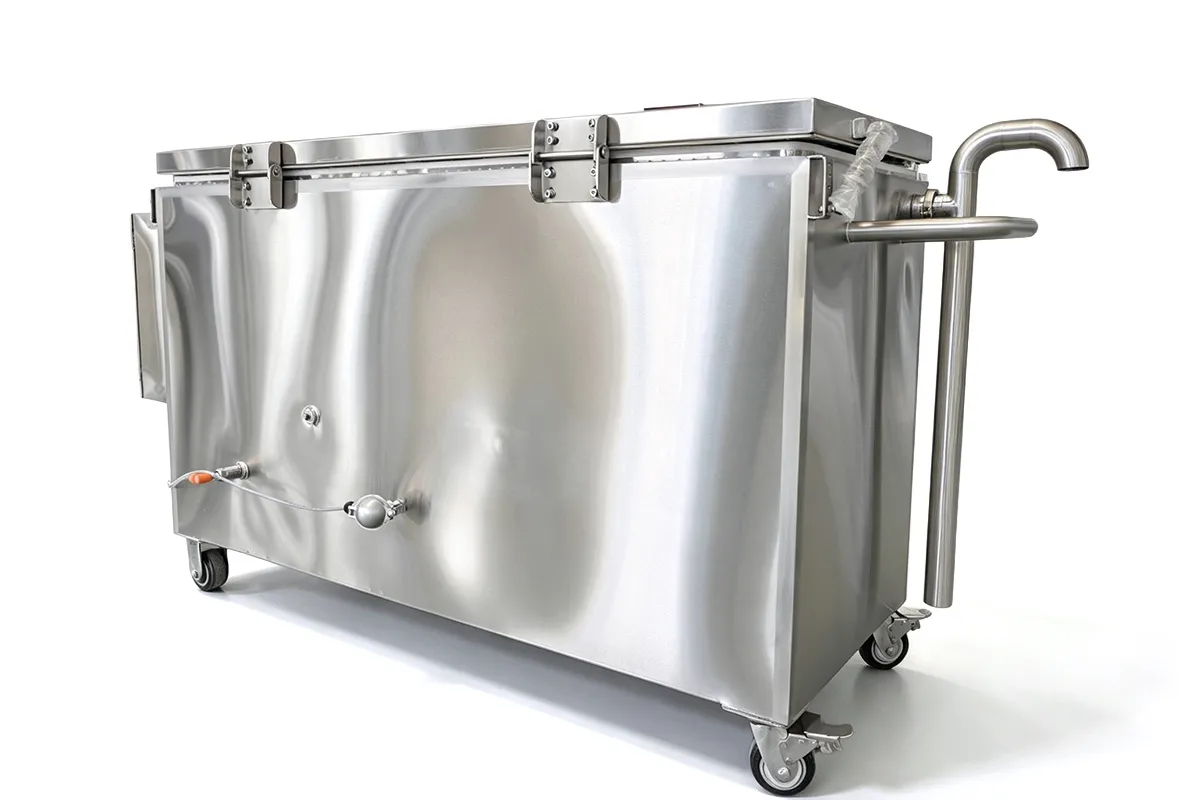

Interior structure of stainless steel bath pasteurizer tank

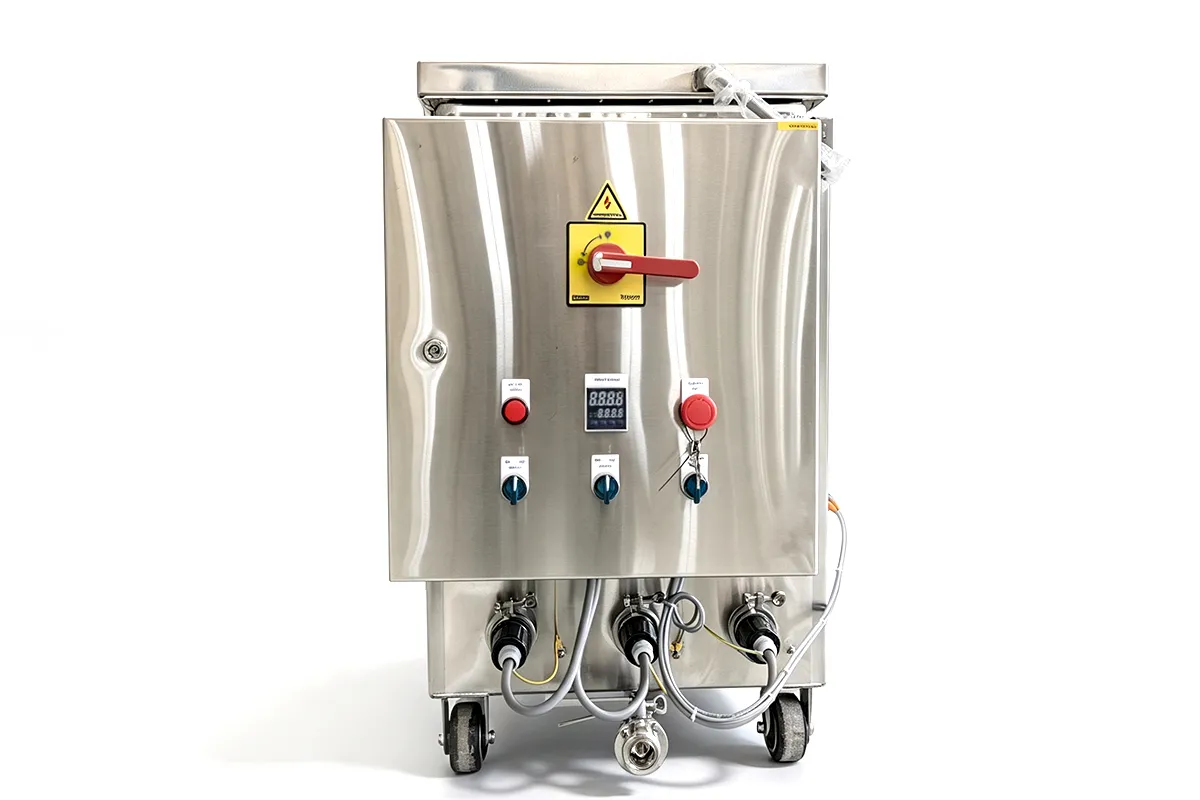

Water bath pasteurizer for bottled beer production line

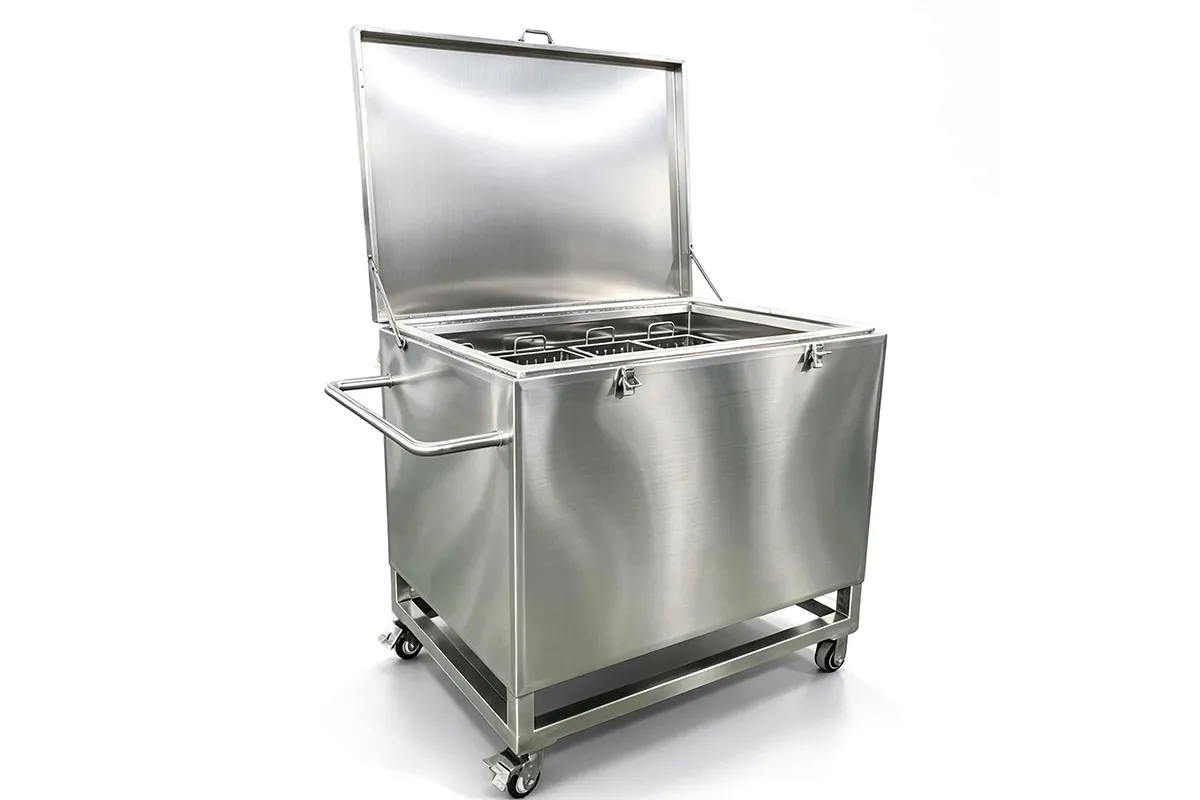

Digital temperature control panel of bath pasteurizer

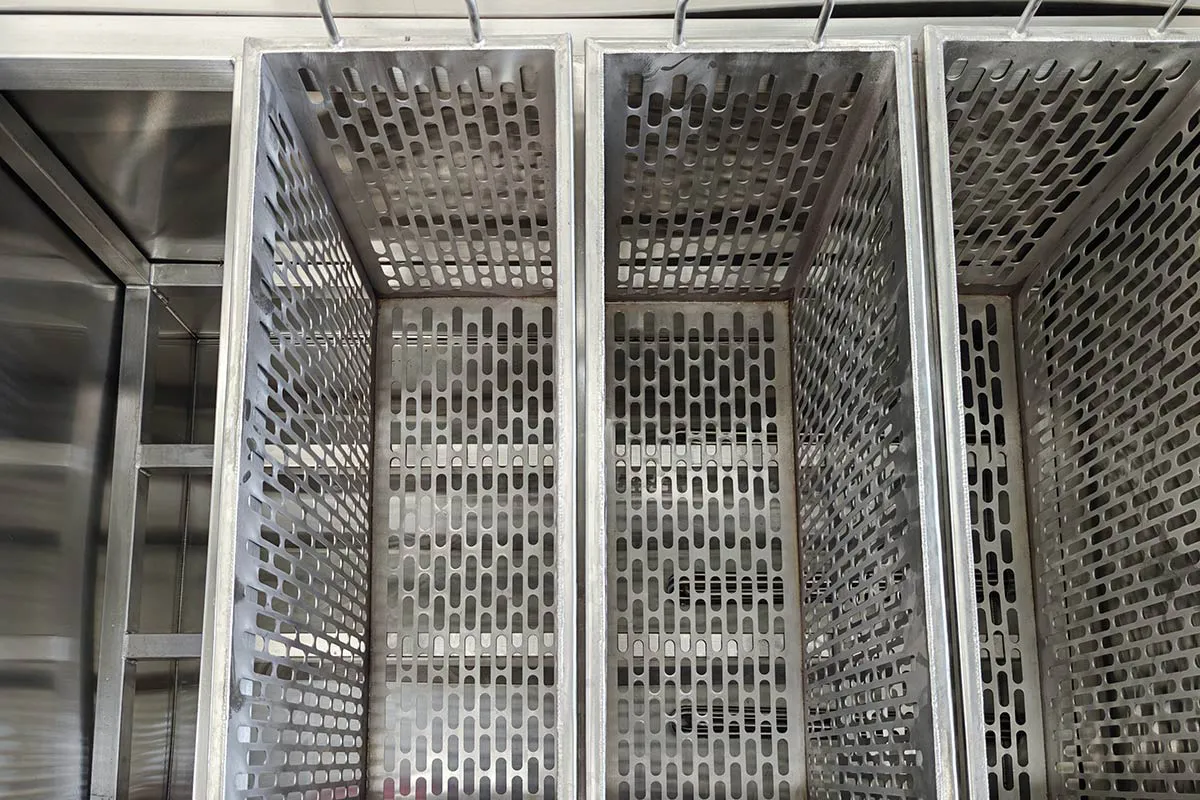

Automatic bath pasteurization machine for canned beverages

Bath Pasteurizer

Application industries: Beer; soda, juice, hard seltzer; kombucha etc

Heating method: electric

Control: Auto PLC control; PID control

Application: Limited production space&smaller capacity

If you need help configuring a system to suit your needs,we will help you find the right one for you!

Request a Quote Leave a Message

Table of Contents

Product Introduction
Product Features
Standard Configuration
Get A Turnkey Solution

Product Introduction

The Bath Pasteurizer brings numerous benefits by providing a flexible application for pasteurization of beer, juice, cider, and other beverages. A water bath pasteurization ensures consistent and even heat distribution, which can effectively eliminating harmful microorganisms while preserving flavour and nutritional quality. This machine is customized for various container size and types, with bucket of right size and quantity well fitted inside the water container. It is an ideal option for small to medium-scale production. By integrating a Water Bath Pasteurizer, different beverage producers can enhance product safety, extend shelf life, and maintain high-quality standards in a more cost-effective way.

Product Features

Mobile unit, skid mounted or on wheels

Plug and play operation

Auto temperature and time control

Over burning protection

Program control for control box (PLC)

Small occupied space

Super affordable budget

Standard Configuration

Chamber Pasteurizer-Spec
Dimension	1600×620×780mm 1000×650×876mm Customized dimension possible
Weight	100KG
Heating method	Electric
Power	220-600V, 50-60HZ, 3 phase Customized as different power supply status
Power port	3P+N+G, 220-600V Customization as special local power supply
Heating method 1	Electric heater: 27KW Heaters quantity: 3 sets
Main Material	SUS304
Container	SS304 material Insulated, with 50mm insulation thickness Inside frame for bucket holding Bottom installed electric heaters, grounded With sensors for dry burning protection Bottom draining outlet, water feeding inlet Automatic water heating for temp maintaining. Top lid, well closed seal Venting port.
Control Panel	PLC control panel, SS control cabinet Portable version installed with bath container Option: PIC panel. Automatic water heating&temp maintaining. Manual pasteurization
Liquid transfer	SS piping Fully assorted with valves and fittings
Installation	Wheal mounted Easy to remove by handles

Get A Turnkey Solution

ZYB Craft Driven by our commitment to excellence and passion for premium brewing solutions, we specialize in manufacturing custom-built brewing equipment tailored to the unique needs of our clients. Ready to scale up your brewing capacity or upgrade your brewery operation? Get in touch with ZYB Craft. Let’s work together to build a brewery that brings your passion and vision to life. Our expert team is on hand to discuss your project requirements, share professional insights, and walk you through the full process of configuring the ideal brewhouse equipment for your brewery.
