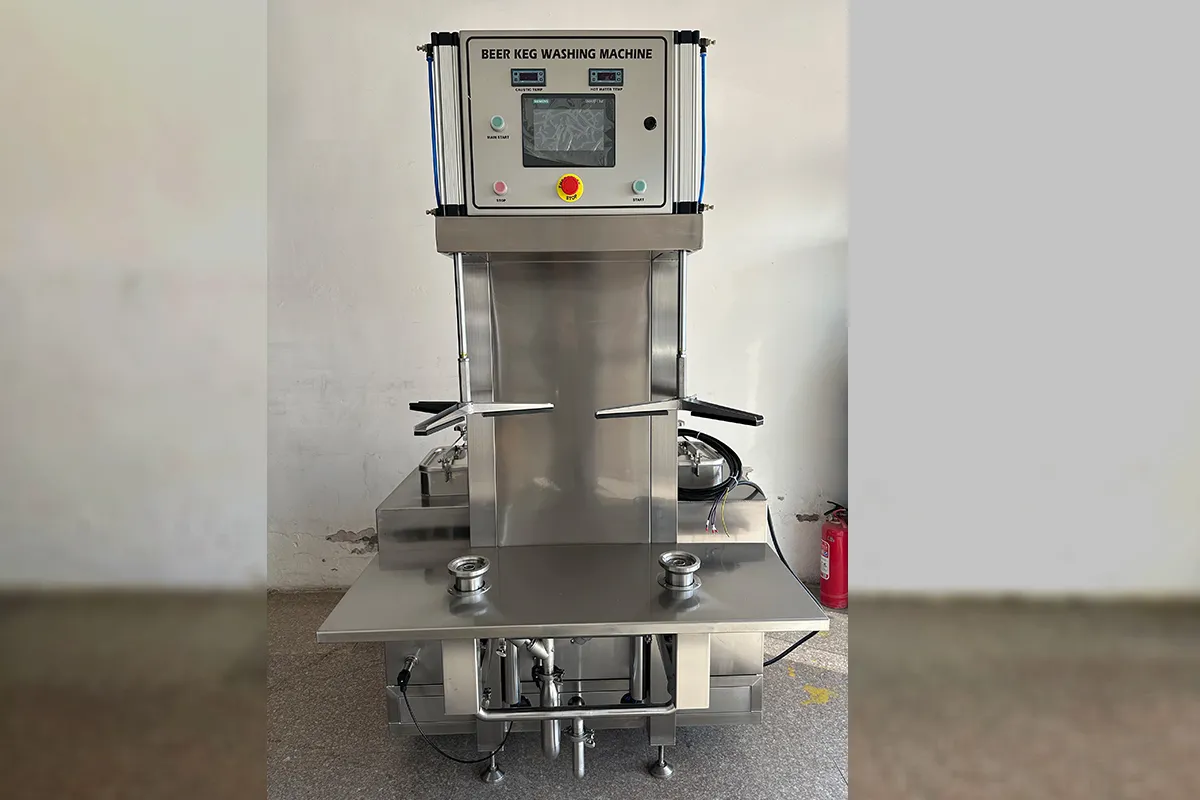

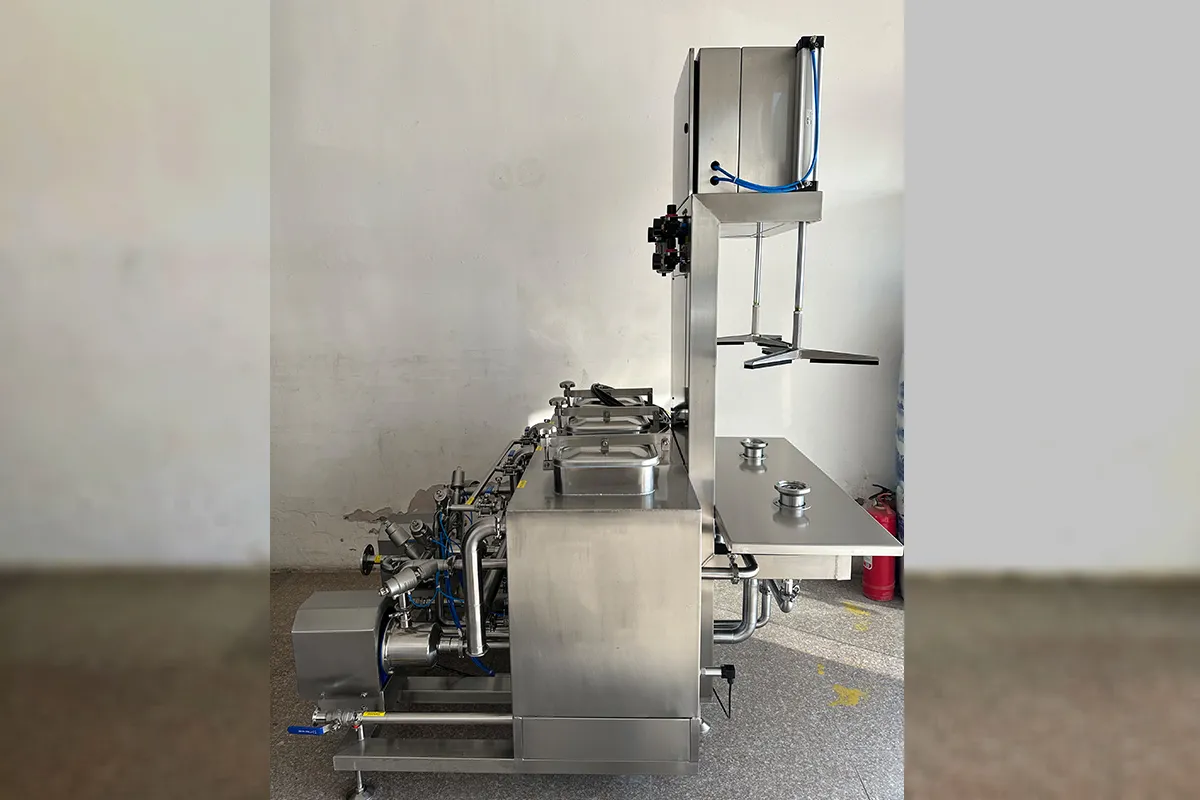

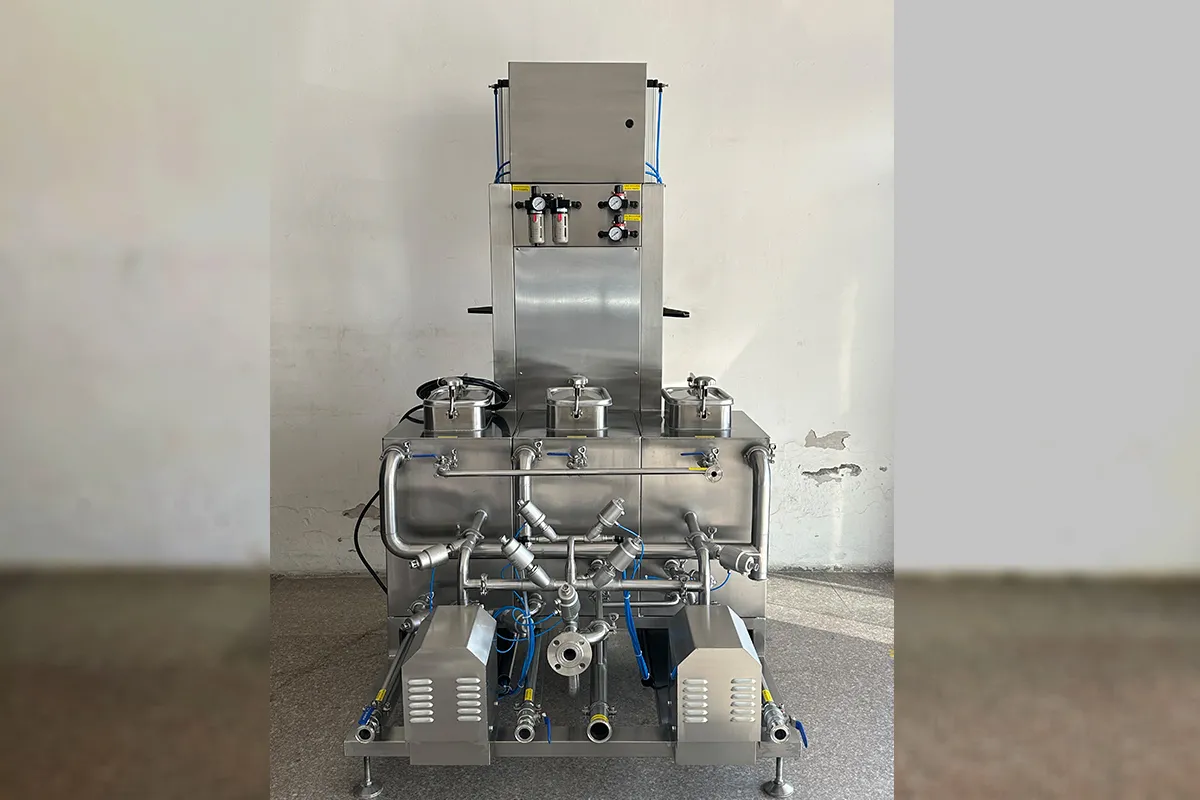

Double Heads Keg Washer

1

Size:W*L*H

1.40X1.60X2.03M

2

Weight

290KG

3

With slide or not

No

4

Packing Size （L*W*H)

1.55X1.75X2.25M

5

Gross Weight

420KG

6

Capacity

Washing part:

40-60pcs/h

7

Power

According to user   local power (3 Phases 380V 50Hz)

8

Power port

3P+N+G

9

Heater way

Steam Coiler

Electrical Heater

10

Power consumption

3KW

15KW

11

Main Material

SUS304

12

Water tank material   and volume

SUS304 / Single tank /   Volume=100L （3pcs）

13

Motor type and brand

SUS304 Pump Head

14

Temperature probe

NTC

15

Temperature  control mode

STC-200

16

Time setting way

Siemens PLC 200 Smart

17

Connect type

water inlet and drain   outlet

1.5" Tri-clamp

Steam inlet

DIN male fitting

18

Spear type

A

S

D

G

19

Keg type

EURO DIN AMERICAN   20L-60Lkeg

20

Washing part inlet   with pressure detection or not

No

21

Washing part outlet   with the residual liquid detection or not

No

22

Washing working   procedure

Lock down→ air   purge/drain off → hot water 1 washing→ air purge/drain off → caustic washing   → air purge/to caustic tank → hot water 2 washing → air purge/drain off   →sanitizer sterilize → CO2 purge/to sanitizer tank→CO2 purge/drain off→CO2   fill

Lock down→ air purge/drain off → hot water 1 washing→ air purge/drain off →   caustic washing → air purge/to caustic tank → hot water 2 washing → air   purge/drain off →acid washing → air purge/to acid tank→steam purge/drain off   →steam sterilized → steam keep pressure sterilized→CO2 purge/drain off→CO2   fill
