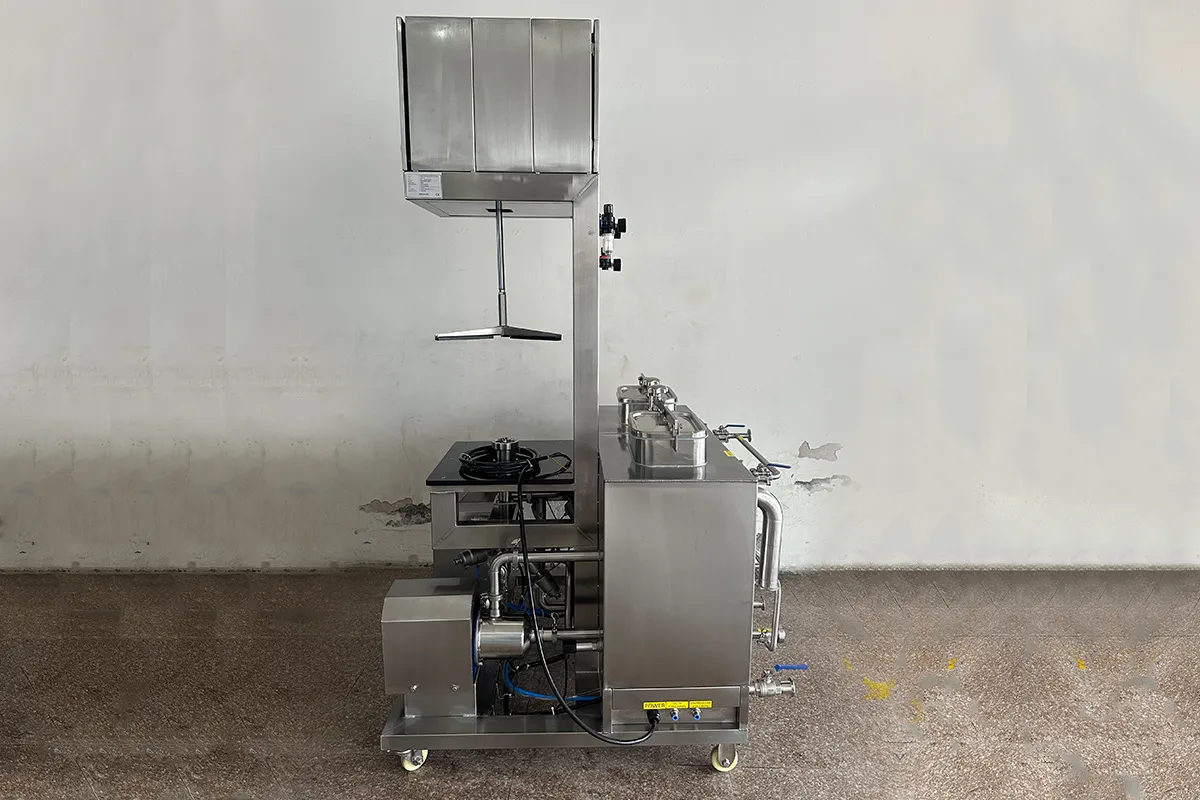

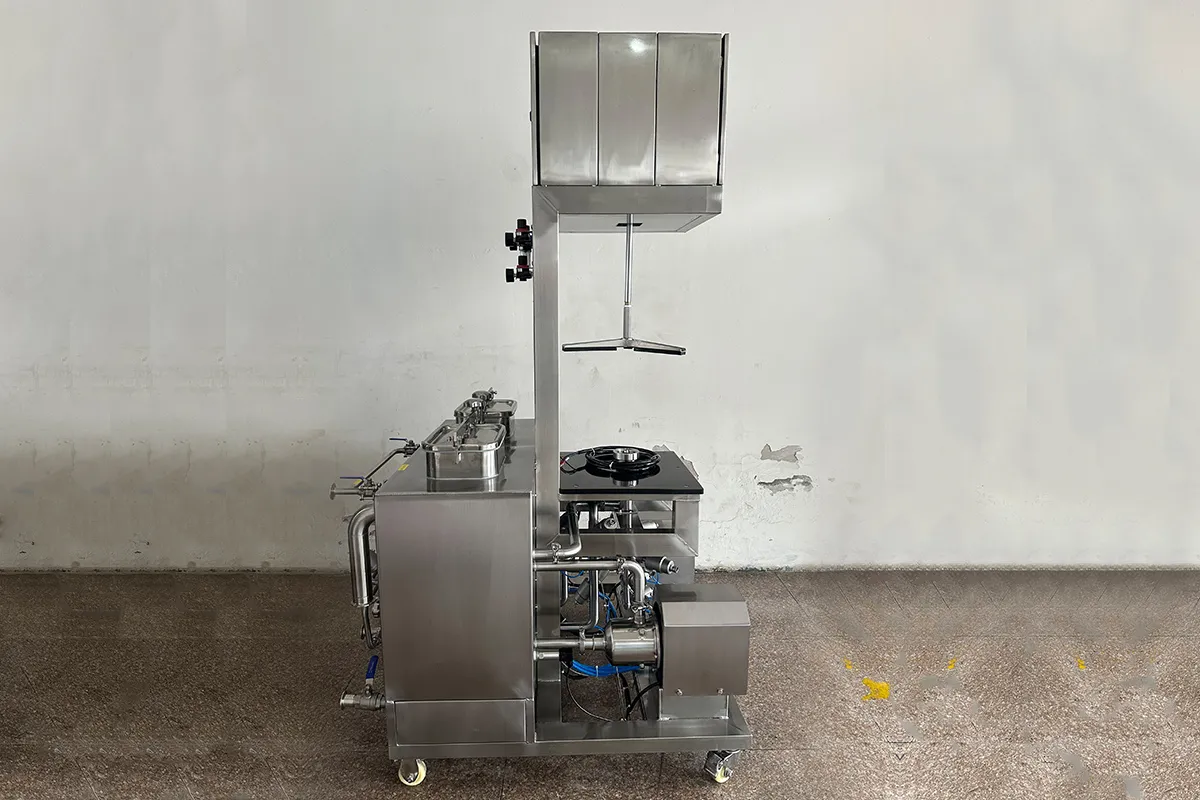

Single Head Keg Washer
High-pressure spray cleaning ensures thorough sanitation
Ideal for small batch production and test brews
Ultra compact design saves valuable floor space
Simple operation requires no professional training
Full CE certification for global export compliance
Food-grade 304/316L stainless steel construction
SPECIFICATION | BEER KEG WASHER | |||||
1 | Size:W*L*H | 1.20X1.05X2.03M | ||||
2 | Weight | 235KG | ||||
3 | With slide or not | No | ||||
4 | Packing Size （L*W*H) | 1.35X1.16X2.25M | ||||
5 | Gross Weight | 366KG | ||||
6 | Capacity | 20-30pcs/h | ||||
7 | Power | According to user local power (3 Phases 380V 50Hz) | ||||
8 | Power port | 3P+N+G | ||||
9 | Heater way | （Electrical Heater） | ||||
10 | Power consumption | 8.0KW | ||||
11 | Main Material | SUS304 | ||||
12 | Water tank material and volume | SUS304 / Single tank / Volume=100L （2pcs） | ||||
13 | Motor type and brand | SUS304 Pump Head | ||||
14 | Temperature prode | NTC | ||||
15 | Temperature control mode | STC-200 | ||||
16 | Time setting way | Siemens PLC 200 Smart | ||||
17 | Connect type | 1.5" Tri-clamp | ||||
18 | Spear type | A | S | D | G | |
19 | Keg type | EURO DIN AMERICAN 20L-60Lkeg | ||||
20 | Washing part inlet with pressure detection or not | No | ||||
21 | Washing part outlet with the residual liquid detection or not | No | ||||
22 | Washing working procedure | Lock down → air purge/drain off → hot water washing→ air purge/drain off → caustic washing → air purge/to caustic tank → hot water 1 washing → air purge/drain off → hot water 2 washing → air purge/drain off →sanitizer sterilize →CO2 purge/to sanitizer tank→CO2 fill | ||||
