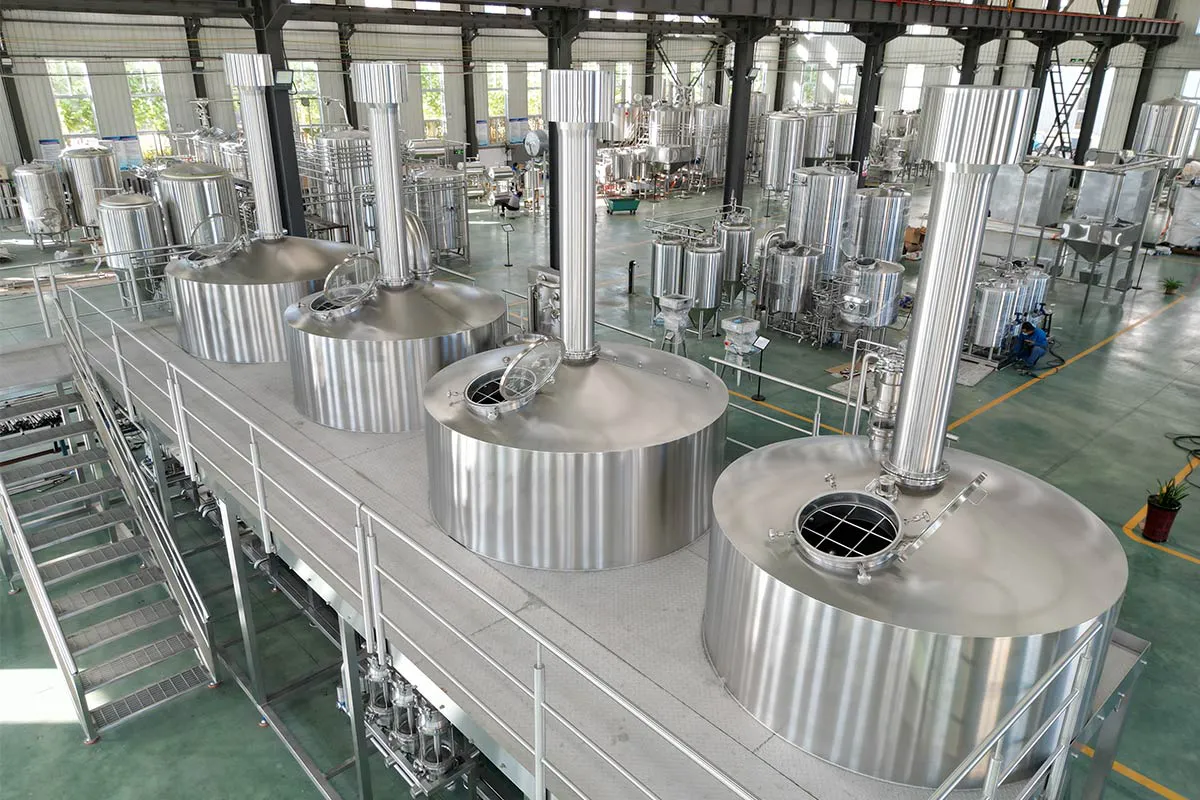

25HL Four Vessel Automatic Brewhouse
Quantity：1 set
Price: 165,000.00 USD. (The whole stock brewhouse unit)
Delivery time: Ready to ship
Connection standard: DIN11851, screw
Advantage:
Modular skid mounted
Easy to move
Perfect combination
Item | Spec | Qty | Remark | |
Part 1: Exist Brewhouse unit ready to ship | ||||
Vessels | Mash Tun | 25HL | 1 pc | Bottom stir, paddle type |
Lauter Tun | 25HL | 1 pc | Bottom stir, blade type | |
Kettle | 25HL | 1 pc | Steam heating&calandra | |
Whirlpool tank | 25HL | 1 pc | Flat bottom, with sprayer | |
Mash pump | 15M3/H,18M | 1 set | Water cooling | |
Lauter pump | 3M3/H, 18M | 1 set | Water cooling | |
Kettle pump | 5M3/H, 36M | 1 set | Water cooling | |
Whirlpool pump | 20M3/H, 40M | 1 set | Water cooling | |
CIP Prime pump | 15M3/H, 24M | 1 set | Self prime pump | |
Wort sink | / | 1 set | On platform | |
Energy recovery | 370MM | 1 set | Tubular heat exchanger | |
Tubular HE | / | 1 set | Wort cooling to 80 degree | |
Plate HE | 50HL/H | 1 set | Wort cooling in 30-40min | |

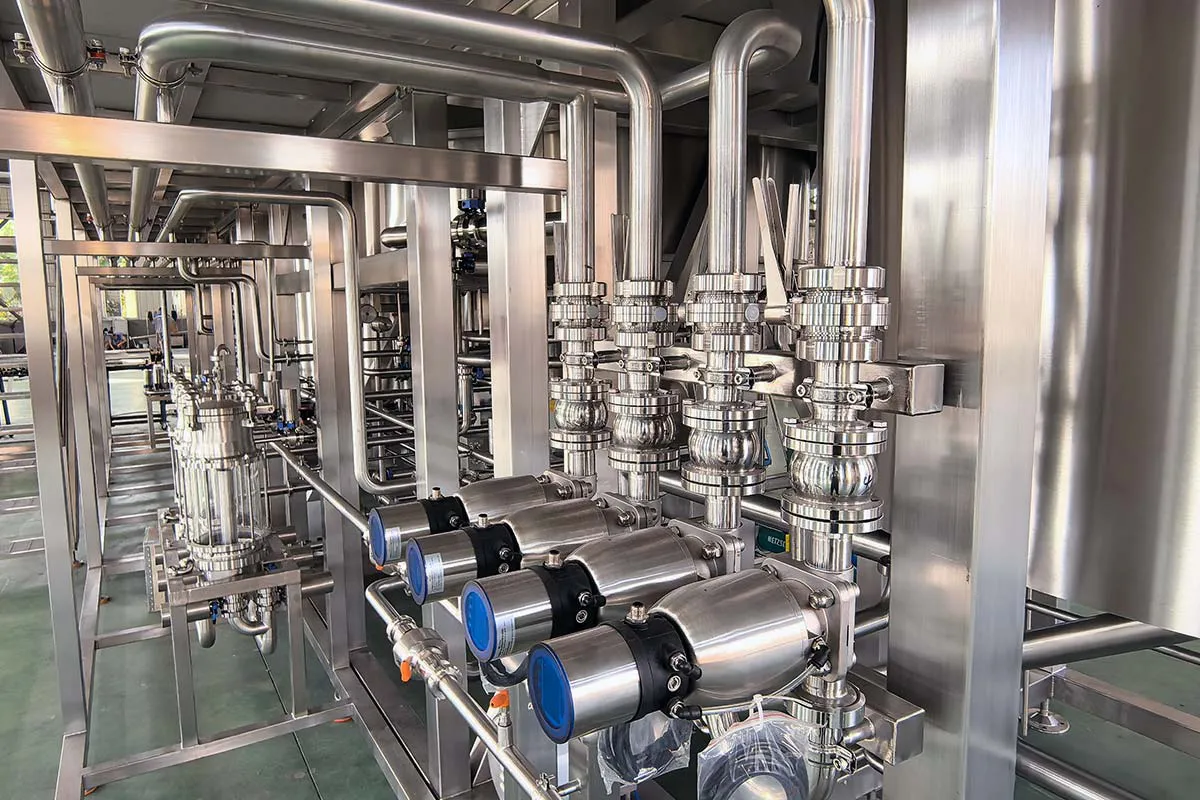

Piping& Valves | Butterfly Valves | DN50 | Assorted | Screw connection, proximity switch |
(pneumatic) | ||||
Regulating valve | DN65/50/40 | 5 sets | Diaphragm type, pneumatic | |
Flow meter | SM9000 | 4 sets | Brand: IFM | |
Piping | DN50 | Assorted | Piping&fittings, DIN11851 | |

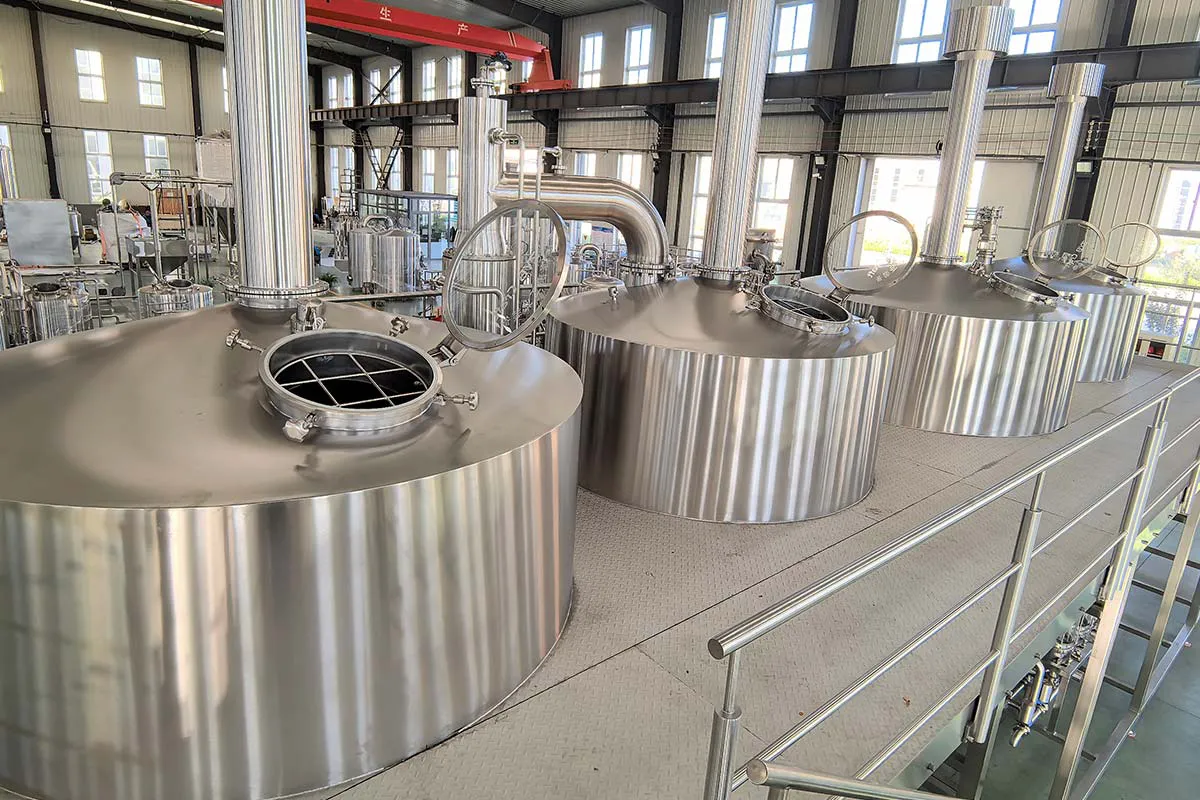

Platform | Platform | / | Assorted | SS, the whole platform unit |

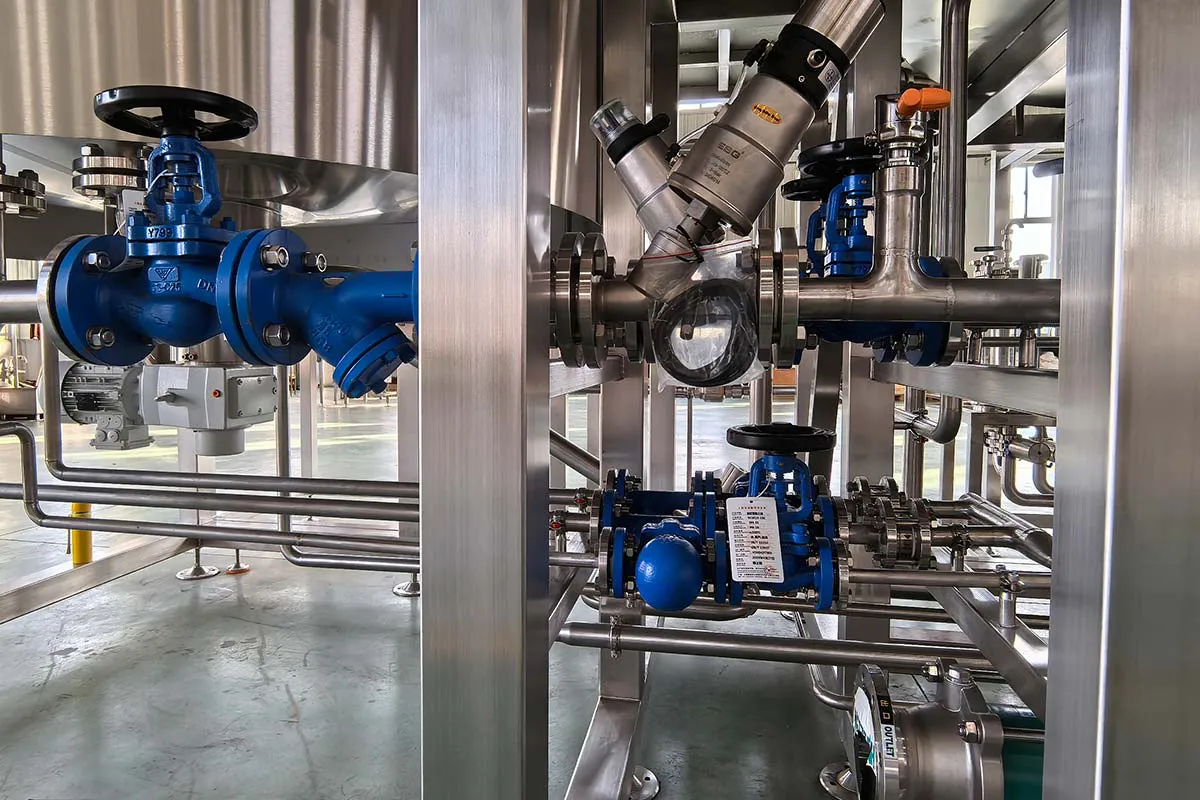

Steam heating | Steam fittings | DN50/32 | Assorted | Stop valves&check valve etc |
Steam line | DN50/32 | Assorted | Steam supply&condensing | |
Spent grain transfer | Spent grain pump | 8M3/h | 1 set | Brand: NETZSCH-Germany |
Connector | / | 1 pc | From grain out door to screw pump, with sensors,Screw pump) | |
Grain transfer pipe | / | assorted | Defined as facility request | |
Part 2: Items recommended to consist of whole brewhouse unit | ||||
Item | Spec | Qty | Remark | |
Water station | Hot water tank | 75HL | 1 pc | For 2-4 brews/day |
Hot water pump | 15M3/h | 1 set | Water cooling | |
Cold water tank | 50HL | 1 pc | With cooling jacket | |
Cold water pump | 10M3/h | 1 set | VFD&pressure control | |
Water station piping | Assorted | Full piping line | ||
Control system | Main control panel | / | 1 set | SS control panel, IP55 Siemens S7-1500 |
Pneumatic panel | / | 1 set | EU regulated | |
Monitor | 19” | 1 set | Industrial PC, Schneider | |
Software | / | 1 set | SmartBrew Software | |
Cables&channels | / | 1 Set | For whole BH system | |
Remark: If this is the brewhouse can be used for your current system expansion or can be used as part of your brand new brewing system, PM or contact us by other way for more detailed technical proposal further commercial negotiation. | ||||
