GRAND DIAMOND BREWERY

Projects:

10HL brewing system

Location:

#988F,Group 50,Kbal Pean 1 village,Sangkat poipet,poipet City Banteymeanchey Province,Kingdom of Camboida

GRAND DIAMOND BREWERY 10HL Brewing System Project

Project Description:

The basic configuration as below:

Milling unit:

Malt mill+Platform+auger+grist hopper+hydrator

Brewhouse:

1000L 3 vessel brewhouse(Mash tun+Lauter tun+Kettle/Whirlpool tun)

Double stages plate heat exchanger

Water system

20HL Hot water tank +hot water pump

20HL Cold water tank+cold water pump

Cellar system:

4×10HL CCT +3X20HL CCT+fully configured glycol piping and valves with insulation

Cooling unit:

2x10hp chiller

1X2000L Glycol water tank

Control system:

Automatic Siemens PLC control with touch screen

CIP station

150L CIP station: Alkali tank+acid tank+pump+piping etc.

Kegging unit

Kegs

Air unit:

Air compressor

Aeration station

Air pipes

Related Pictures

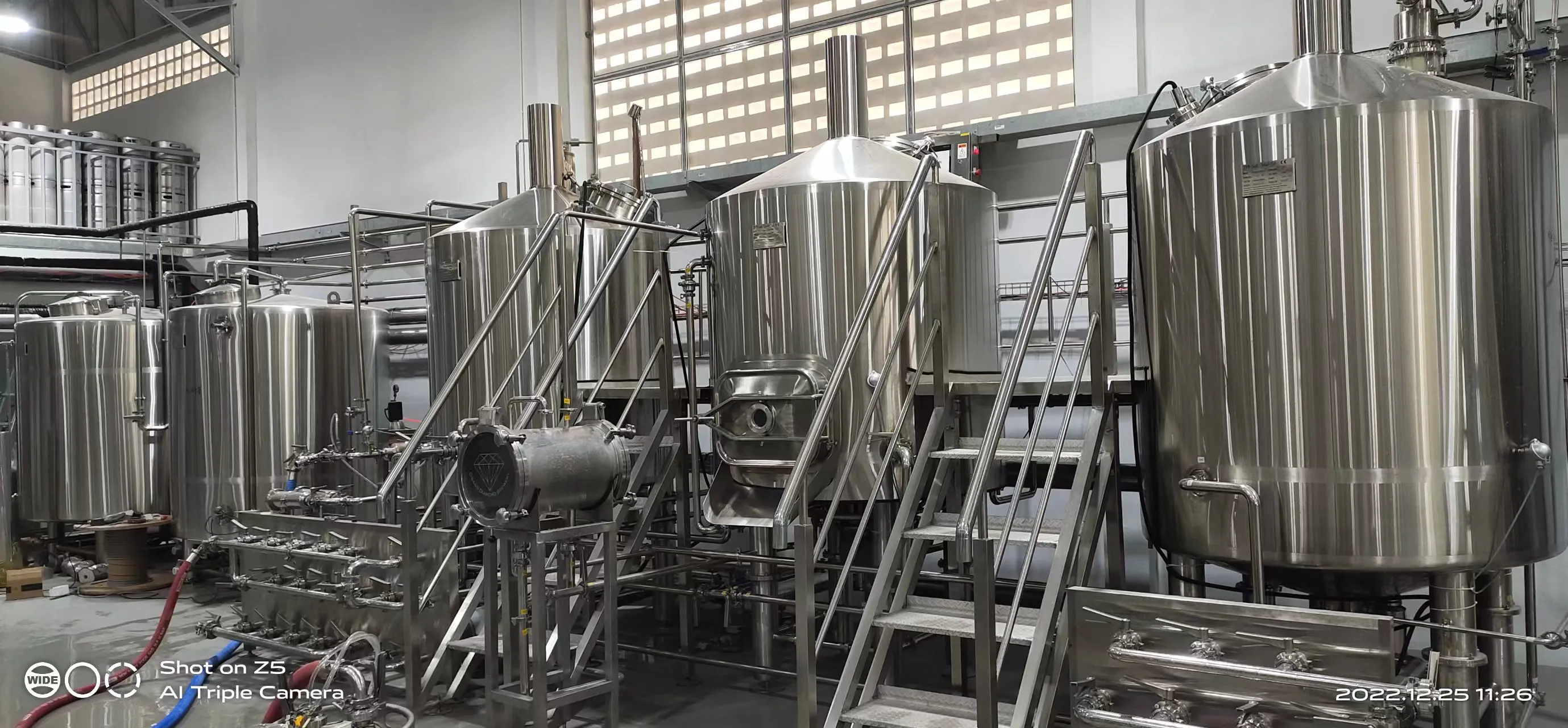

GRAND DIAMOND BREWERY 10HL brewing system complete installation

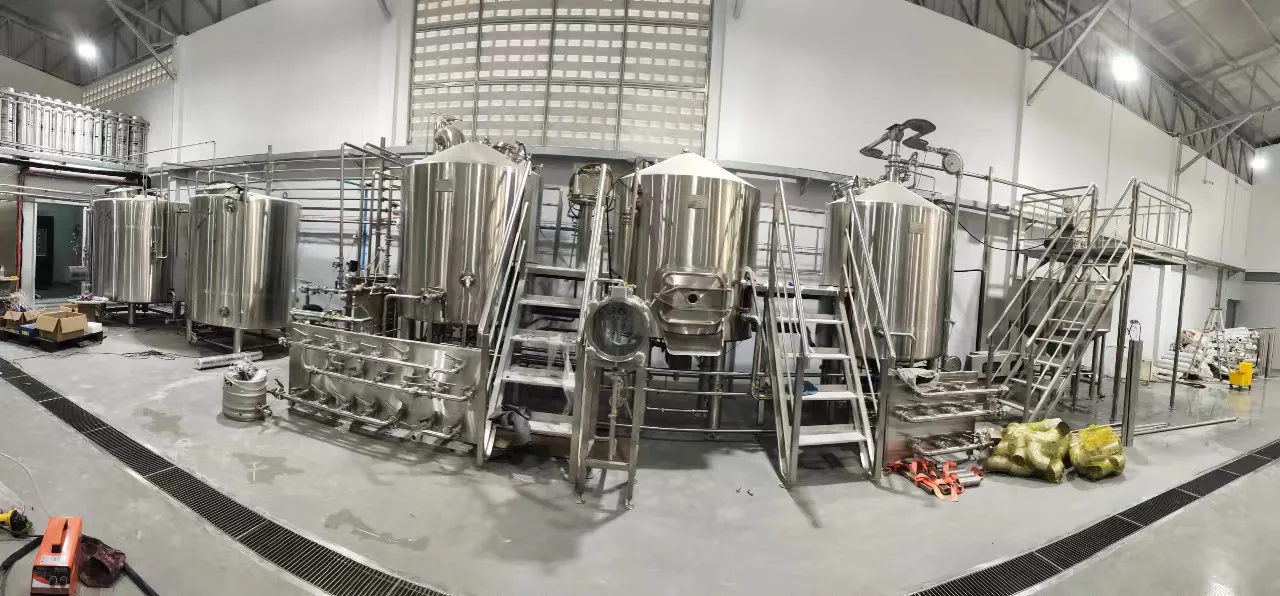

Brewmaster operating 10HL brewery equipment at GRAND DIAMOND BREWERY

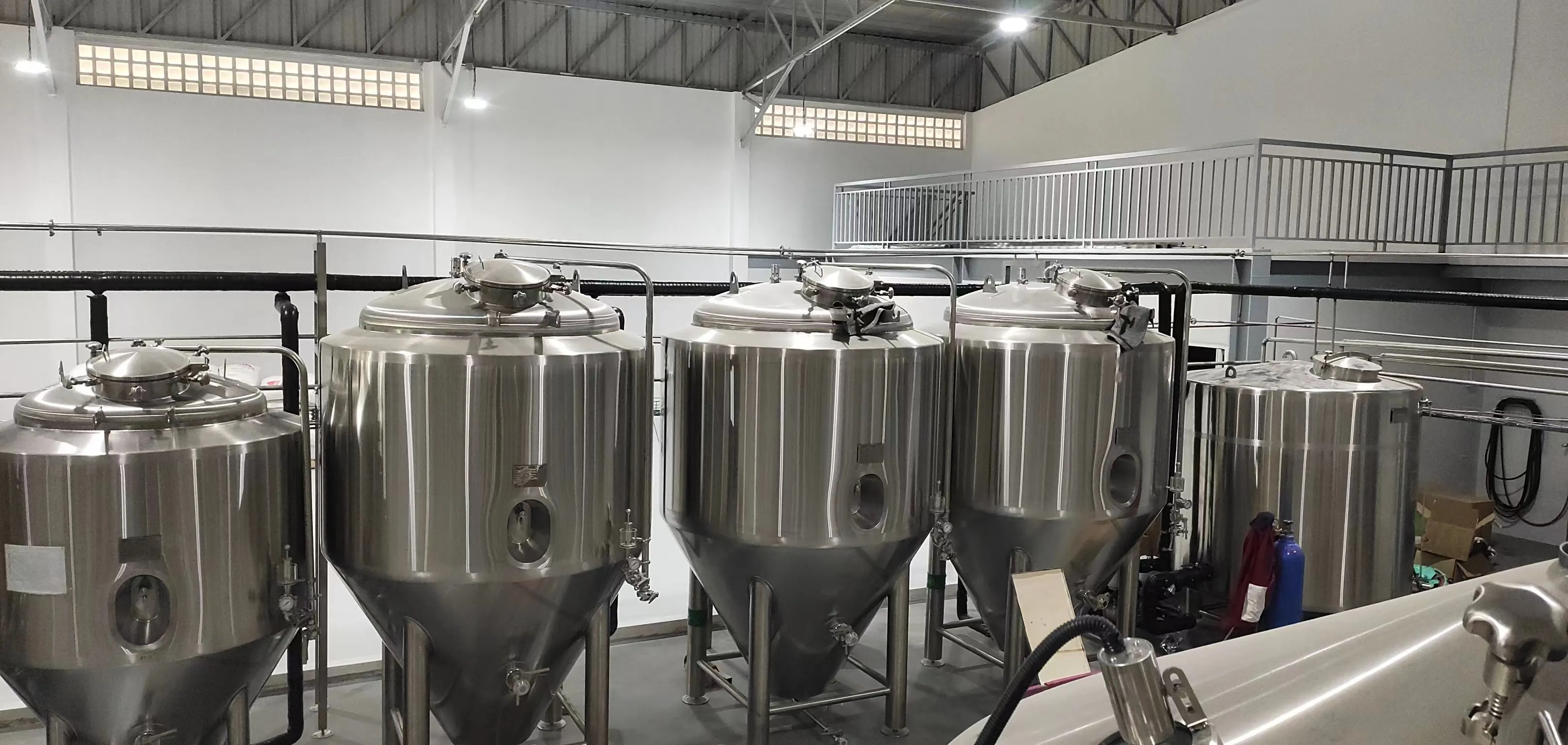

10HL mash lauter tun and kettle whirlpool vessels at craft brewery

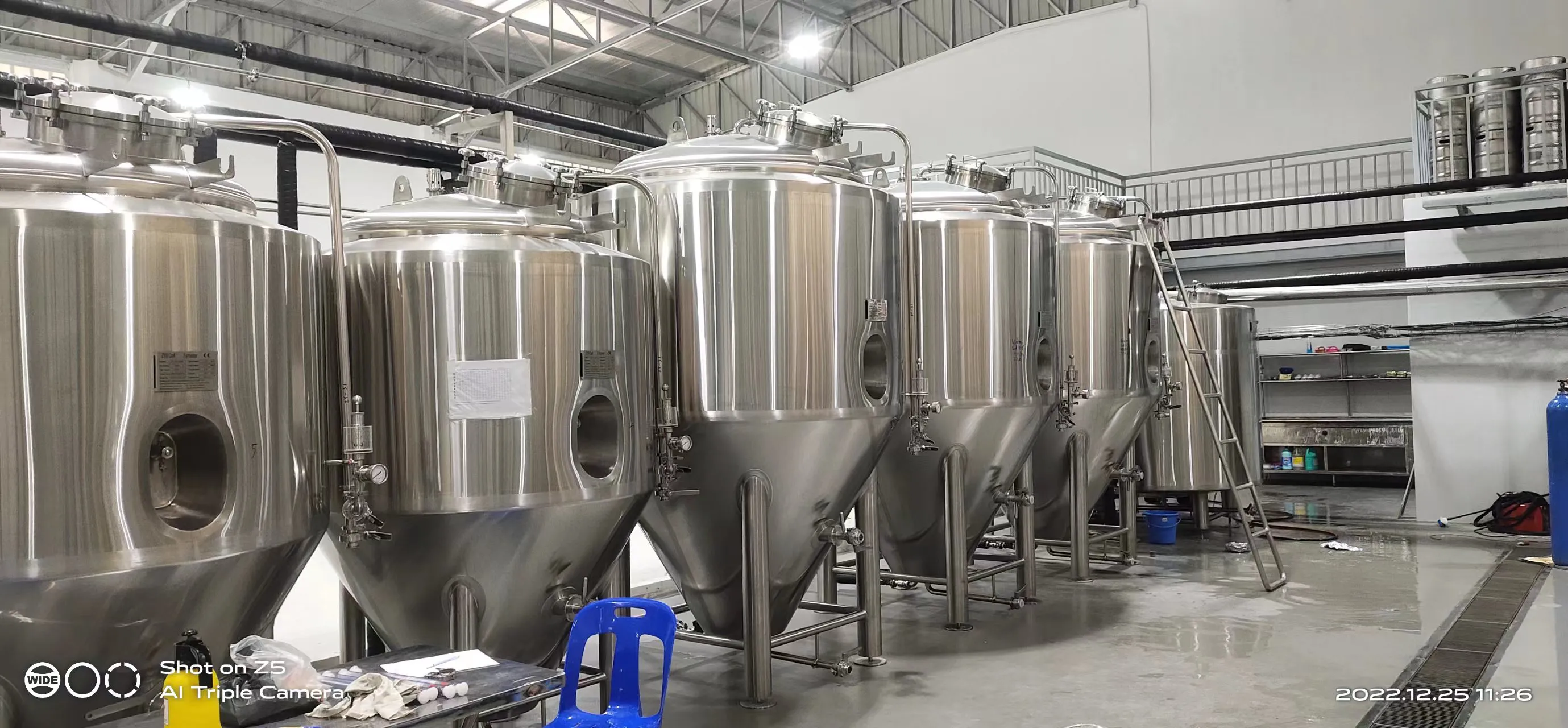

Stainless steel fermentation tanks at GRAND DIAMOND BREWERY 10HL brewery

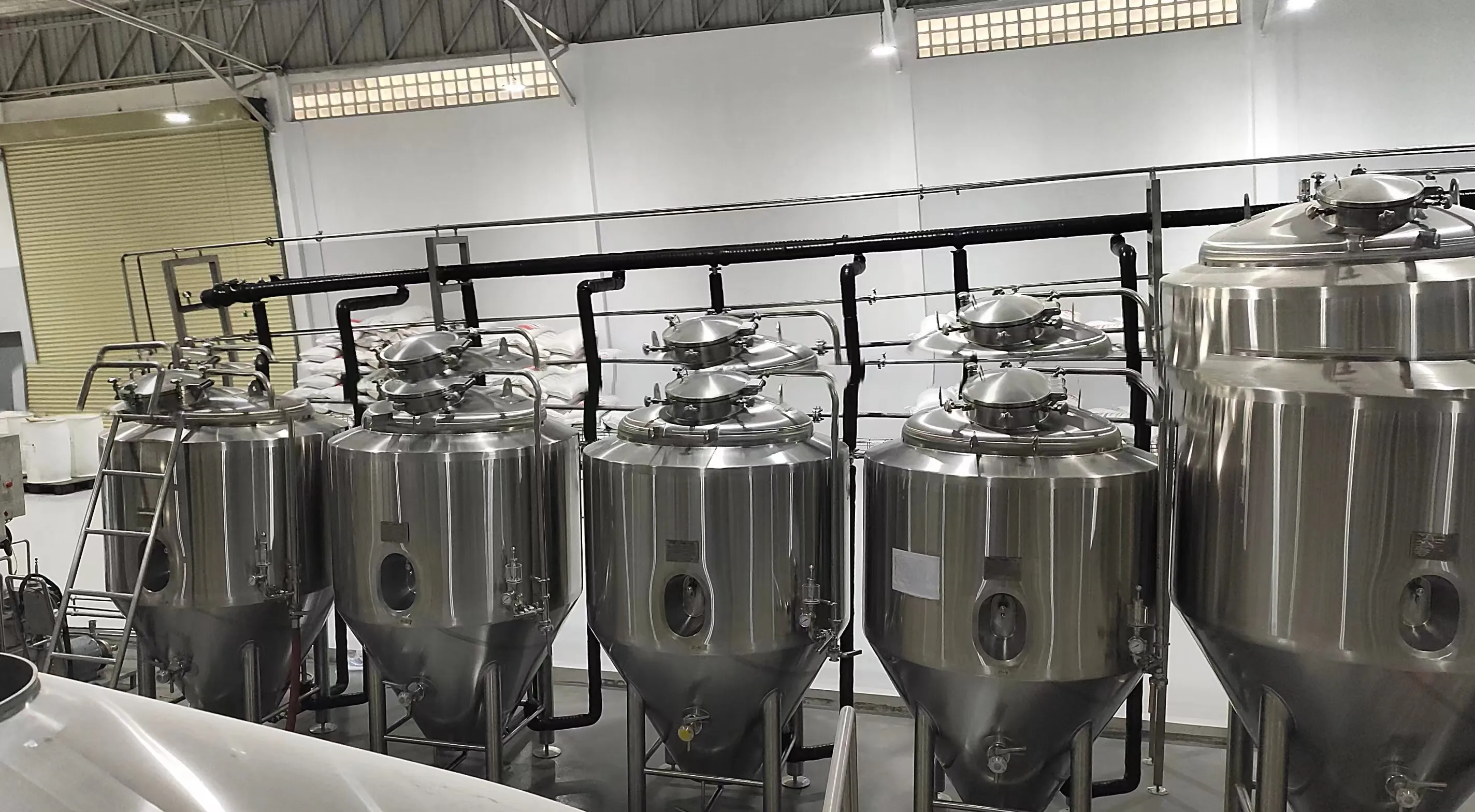

GRAND DIAMOND BREWERY taproom with visible 10HL brewing area
