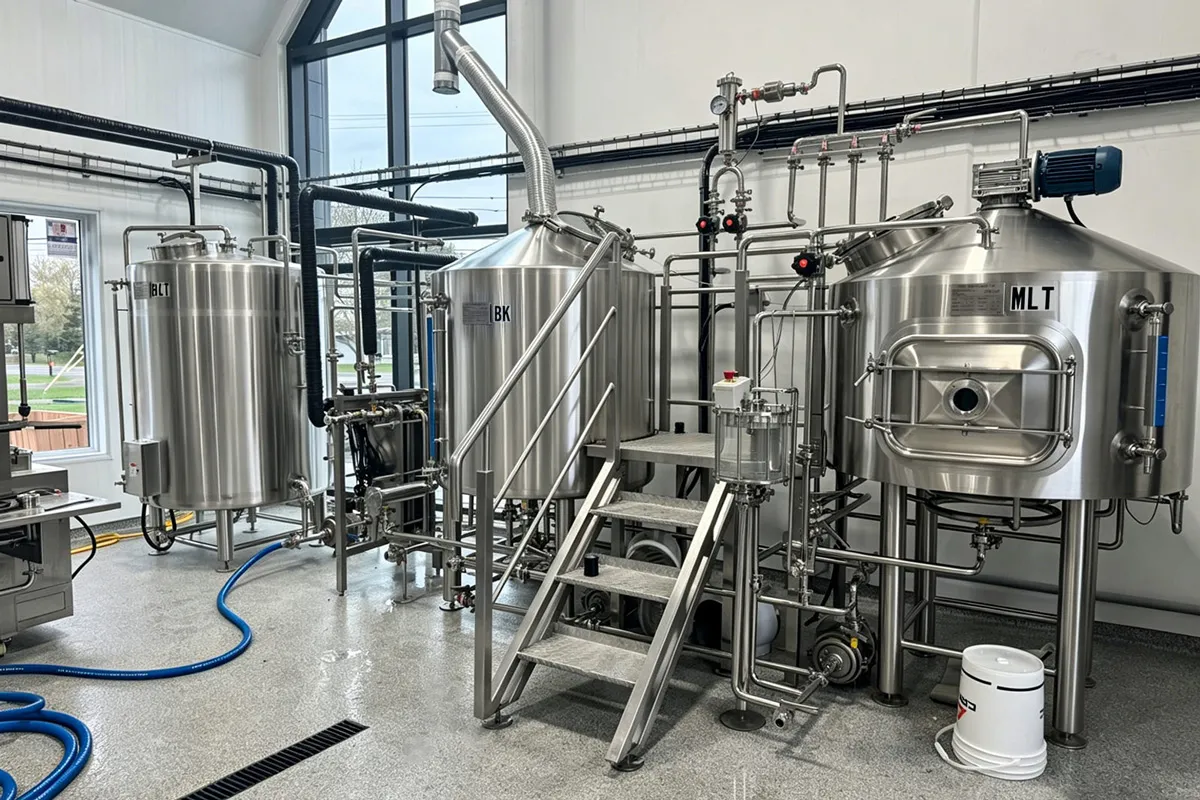

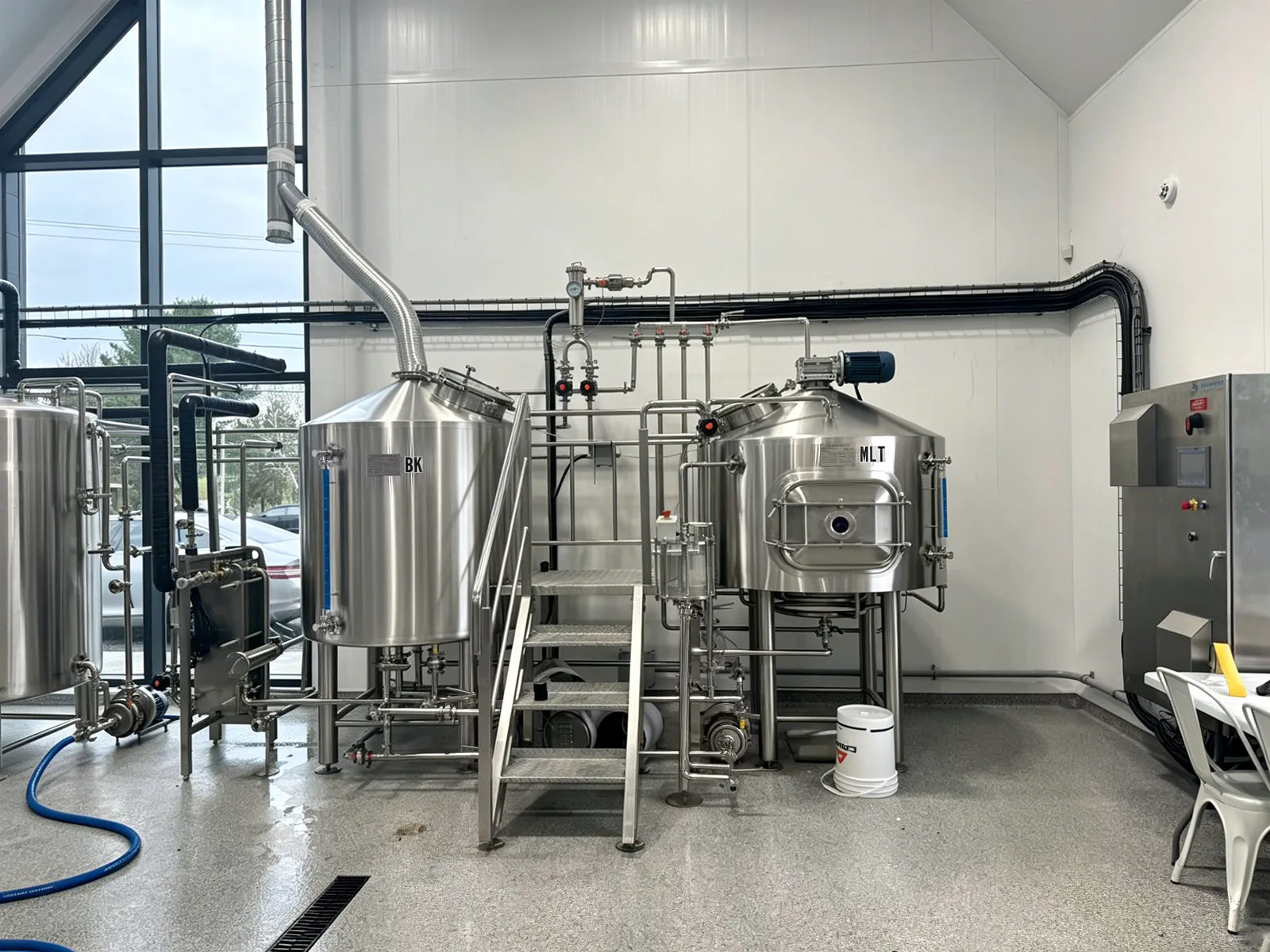

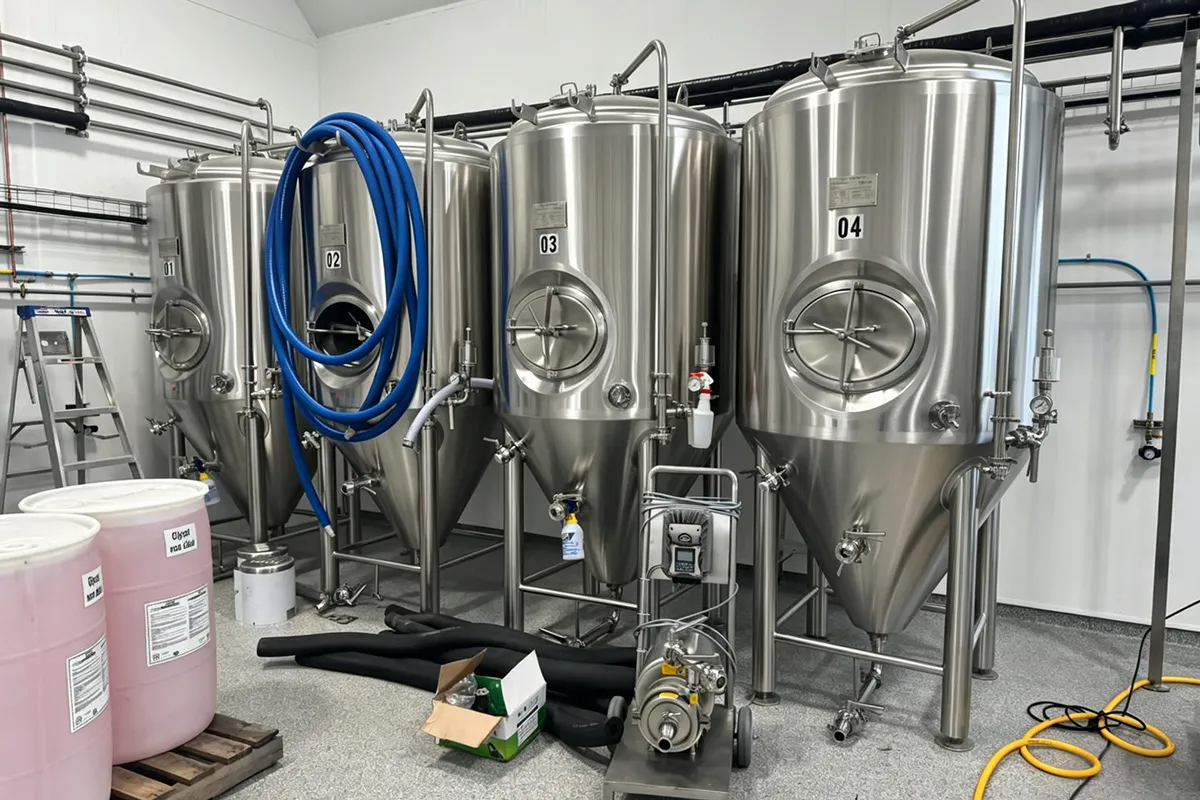

5BBL Two Vessel Brewhouse
Capacity：5BBL per brew
Configuration：

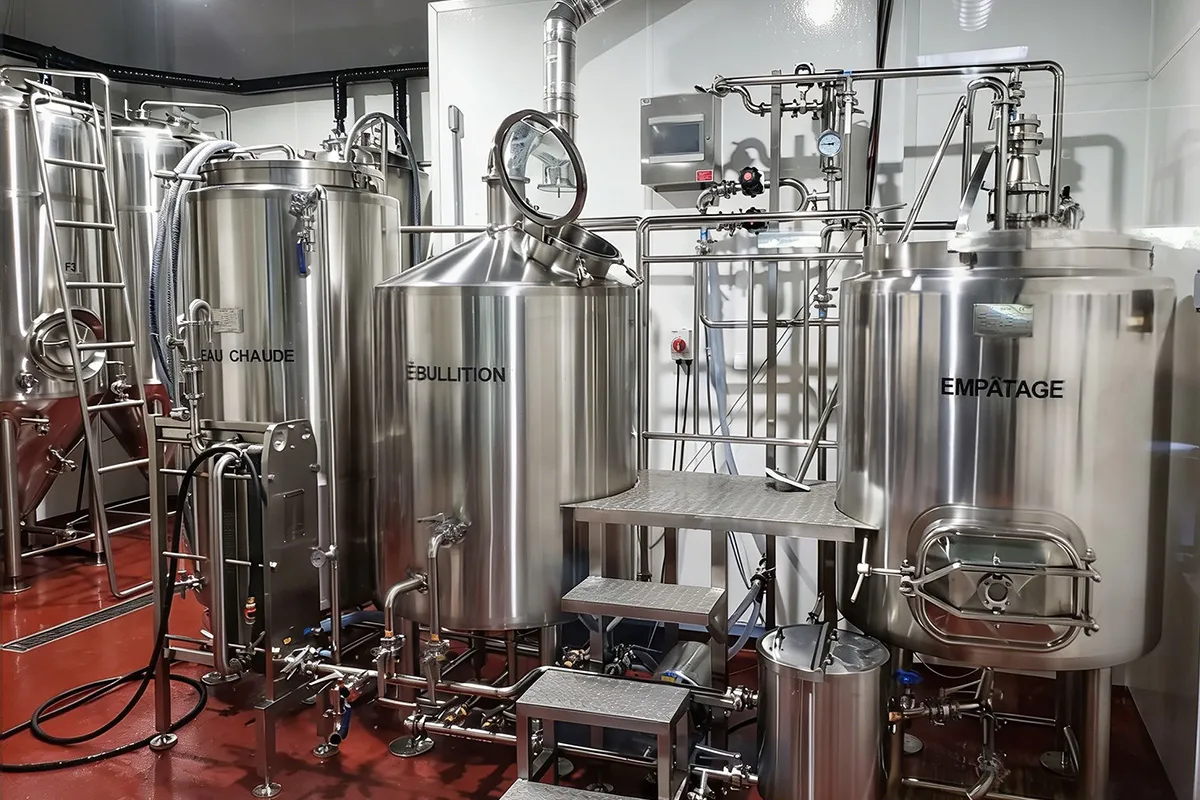

Mash tun/lauter tun+kettle/whirlpool tank
Heating method: Steam/electric/gas heating
Structure：Pre assembled or skid mounted
Water system: 10-15BBL hot water tank
Control unit: PID control panel or PLC panel
Material: SUS304/304L
The 5BBL brewhouse is more used for brewpubs and the small capacity breweries.
The system designed by ZYB is more compact, which occupies very less space in facility, and it is easy to operate. Further more the reasonable design brings good guarantee on beer quality.
meanwhile always with good guarantee on beer brewing quality.
Considering the power supply, there is a big range of heating method, we can do, steam heating; electric heat; direct gas fired; and pressurized water heating etc.
Small floor plan
Big range configuration&heating method
Easy to operate
Flexible on different customization
A big gravity range as different recipe request.
Flexible heating method as facility request.
5BBL Two Vessel Brewhouse | |||
Brewhouse | |||
Mash/Lauter tun | 5BBL | 1 pc | Cone or domed seal top Tor stir with shaft connector to lower twist force Support leg wit adjustable leg bolts |
Kettle/whirlpool tank | 5BBL | 1 pc | Cone or domed seal top Tangent wort inlet Two clean wort outlet Support leg wit adjustable leg bolts |
Heat exchanger | 10BBL/H | 1 set | Double stage, with aeration unit |
Lauter pump | 1m³/h | 1 set | Centrifugal pump, VFD control |
Mash/wort pump | 3m³/h | 1 set | Centrifugal pump, VFD control |
Steam condenser | DN200 | 1 set | Installed with kettle for wort condensing With spray nozzles Cold water spraying while boiling process. |
Wort grant | 10L | 1 set | Visible glass |
Valves&piping | DN32 | Assorted | Manual butterfly valve Quantity as exact brewing process design. |
Water station | |||
Hot water tank | 10BBL | 1 pc | Material: SUS304 Insulated on top, cylinder, bottom Heating method: Steam jacket; Steam coil Hot water storage from wort cooling. Optional: Three times of Brewhouse capacity. |
Hot water pump | 3m³/h | 1 set | Centrifugal pump SS304L pump head Optional: Extra backup pump for efficiency or in case of maintaining. |
Control system | |||
Main Control panel | 1 set | Stainless steel material, IP55/65 | |
Basic fitting brand: | / | PLC: Siemens or Allen-Bradley Speed controller: Danfoss; Allen-Bradley Low voltage: Schneider Control panel: TUV or UL/CUL certified Other customization possible | |
Special design for higher gravity brewing
Stacked solution of mash/lauter tun and HLT
PLC control panel
Pneumatic valves for basic automation
Copper outer cladding
