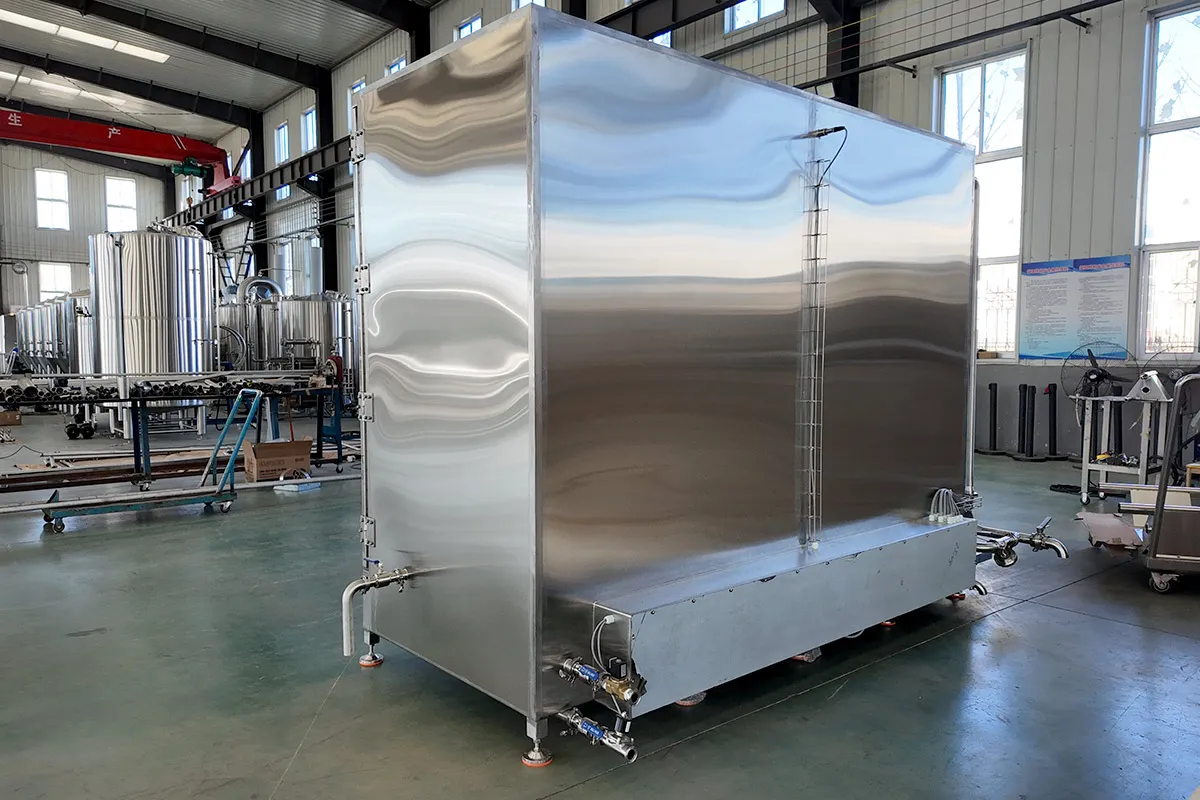

Chamber pasteurizer - Dual pallets
Pallets quantity: Dual pallets
Optional: Full pallet or half pallet
Application industries: Beer; soda, hard seltzer; kombucha etc
Heating method: Steam/electric
Control: Auto PLC control; PID control
A good option for micro breweries, kombucha factory, or seltzer factory who has limited space but with higher demand to extend the shelf life.
Most of the micro breweries just do basic filling, which request faster beer consumption in the market before the taste changing. But it is hard to say how long time your client from bar, restaurants etc can have the beer sold out. Then it comes out the question if and how we should find a solution to have the beer and other related product with longer shelf life.
Here It is a newly developed chamber pasteurizer, following the change of craft beer industry,with the main purpose of extending the beer shelf life efficiently. Further more, this is widely used for other product like hard seltzer, soda, kombucha etc.
Acceptable budget: This is affordable for every brewery, who is with the intention of shelf lift intention.
Small space occupied: It is a big space saving compared with tunnel pasteurizer. Especially for breweries who has very limited space, quick connection on steak, water and power.
Easy to operate: basically the concept of “plug and play”, the end users can just do quick connection on water, electric or steam, move the whole pallet inside, then keep the pasteurization process ongoing as pre set data.
Lower labor cost: Simple the production of move in and out, and transport on pallets makes jobs even easier.
Energy saving: Compared with tunnel pasteurizer, the power and steam/gas consumption is much decreased. Besides, the water reusing, steam condensed water recovery helps even more on energy cost.
Chamber Pasteurizer-Spec | |
Dimension | 2900×1200×2370mm |
Weight | 110KG |
Capacity(Dual pallets) | Bottles of 500ml: 800-1000 bottles Cans of 330ml: 1500-2000 cans |

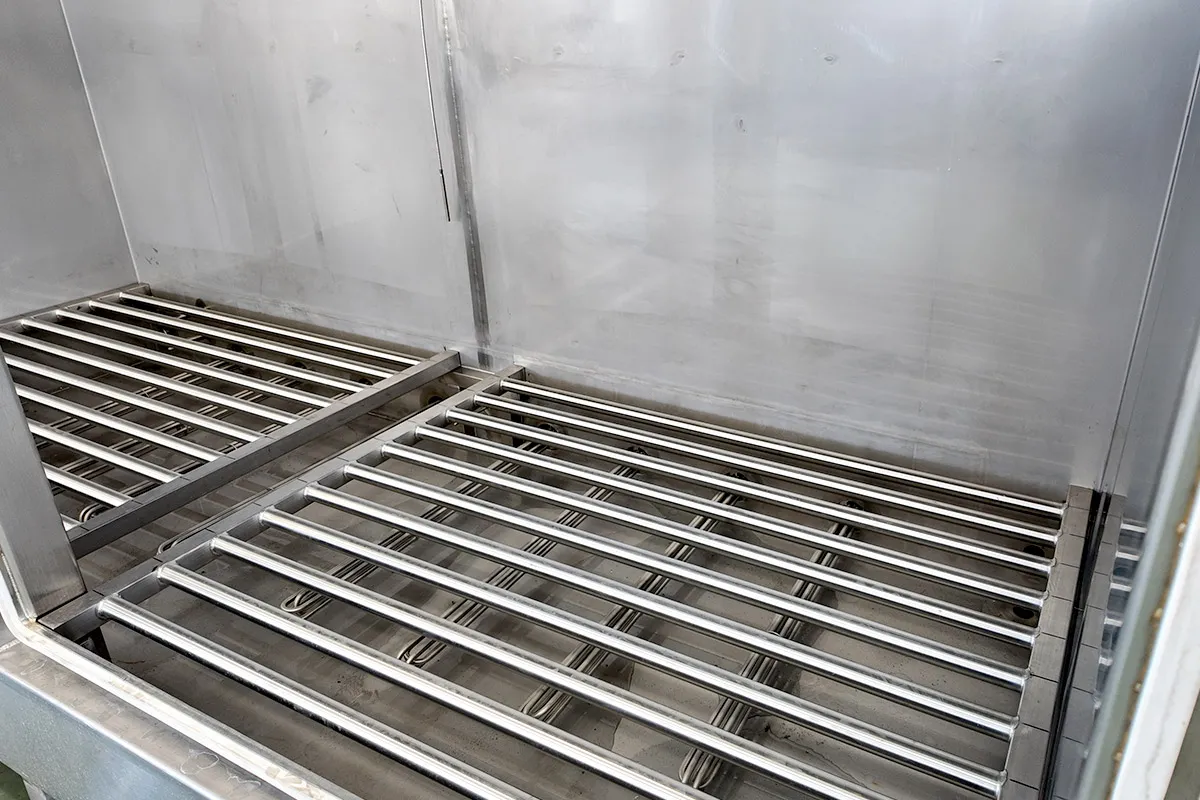

Pallet | EU standard:1200×800mm US standard: 40×48in |
Power | 220-600V, 50-60HZ, 3 phase Customized as different power supply status |
Power port | 3P+N+G, 220-600V Customization as special local power supply |
Heating method 1 | Electric heater: 54KW Heaters quantity: 6 sets |
Heating method 2 | Steam coil With steam coil in water bath Heating via steam circulation in side |
Main Material | SUS304 |

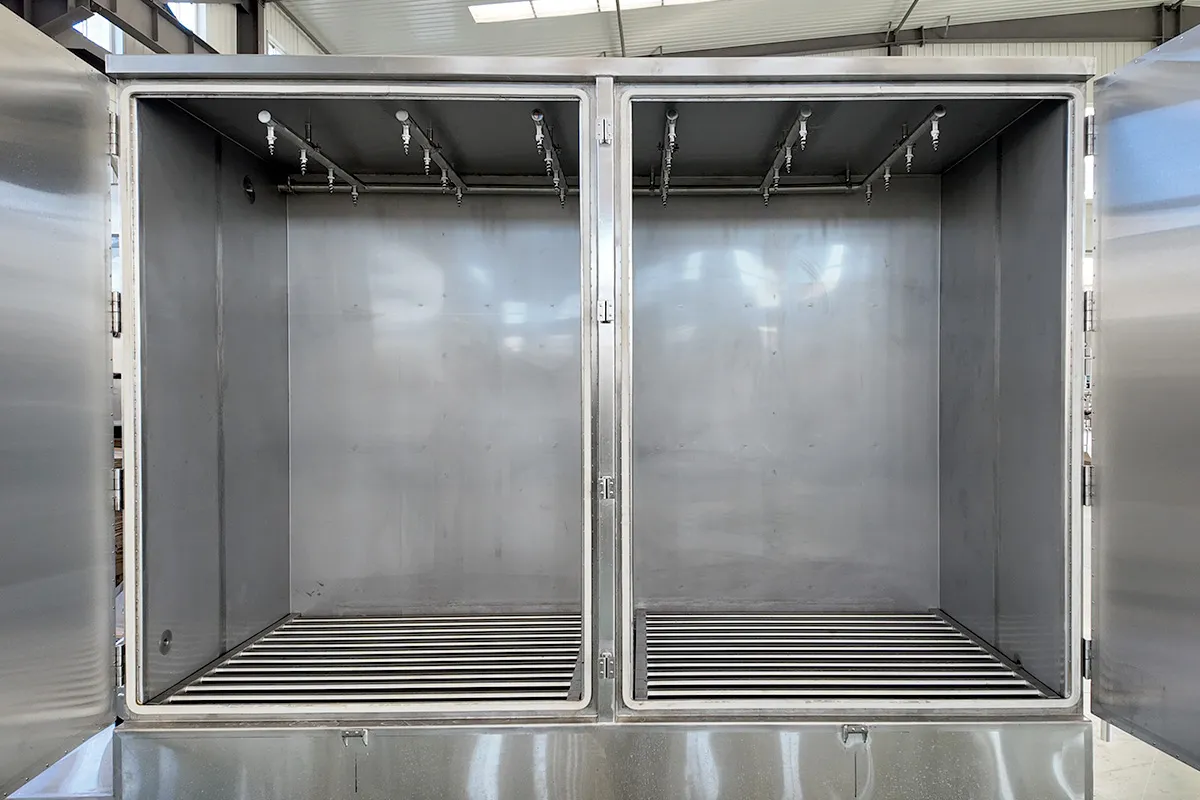

Chamber | SS304 material Insulated, with 50mm insulation thickness Inside spray nozzles, quantity as exact size&use. Bottom water bath, for hot water heating&storage&spraying via pump circulation. Top venting port |

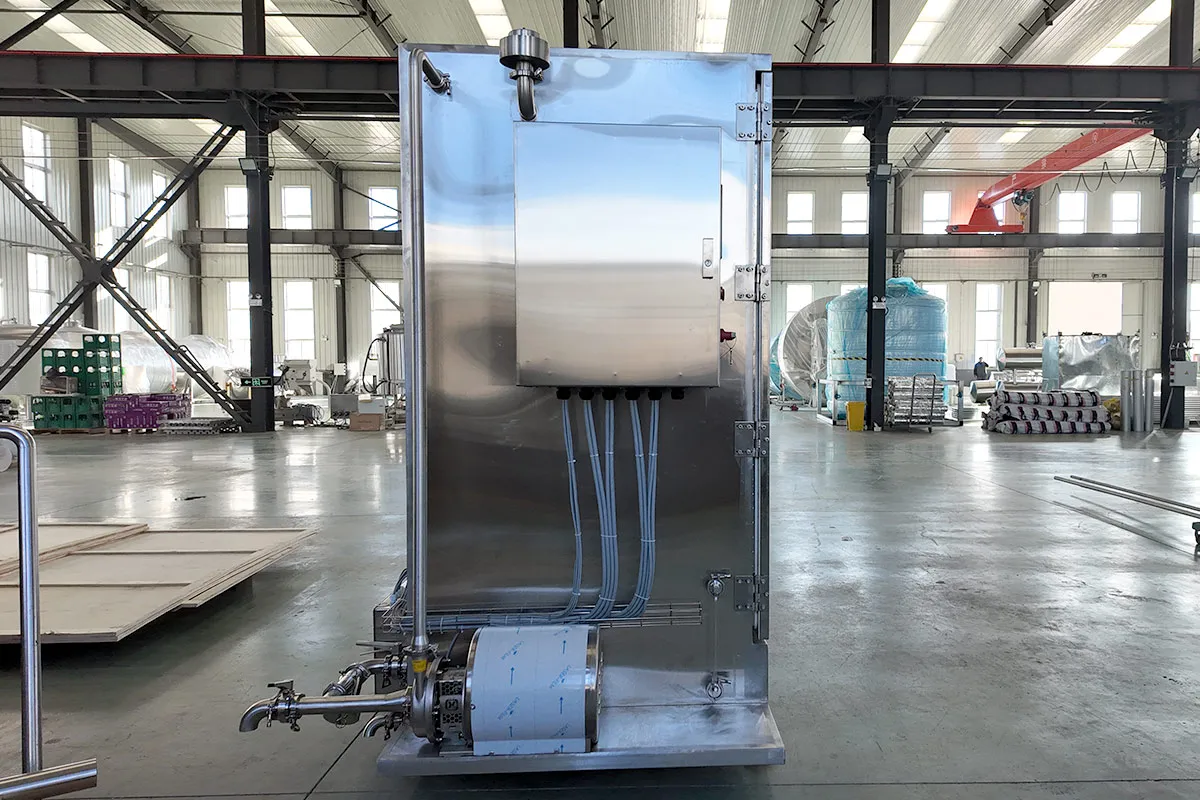

Pump | Centrifugal type SUS304L Pump Head Motor brand: ABB CE/UL/CUL/CSA certified Brand: LYSF (Lafa Laval joint venture in China) |

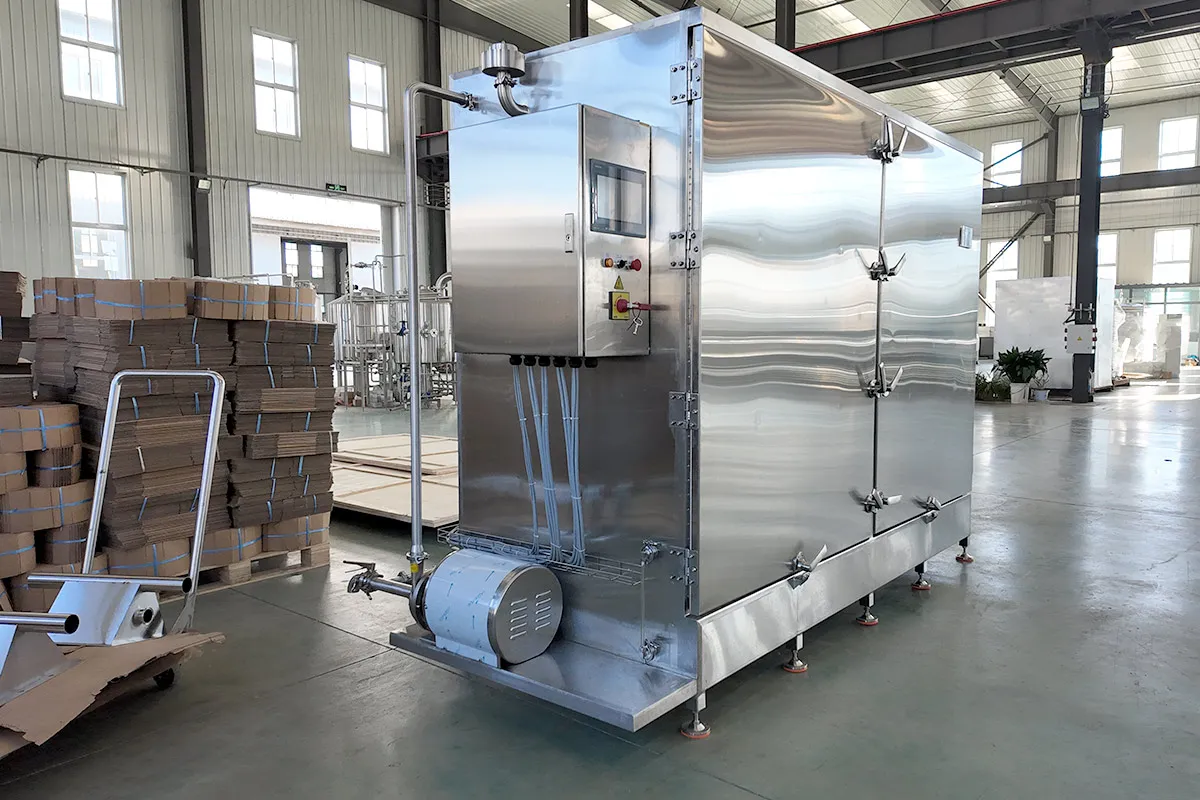

Control Panel | PLC control panel, SS control cabinet Siemens PLC, S7-1200 VFD controller used for pump control; Danfoss VFD HMI: 12” Siemens touch screen Function: Automatic pasteurization Manual pasteurization Smooth switch between auto and manual control Backup: PID panel for manual control |
Liquid transfer | SS piping Fully assorted with valves and fittings |
Steam line | SS industrial piping for steam Flange connection Full steam line configured Steam line&condensing line |
Installation | Skid mounted Fully assembled Easy to remove |
