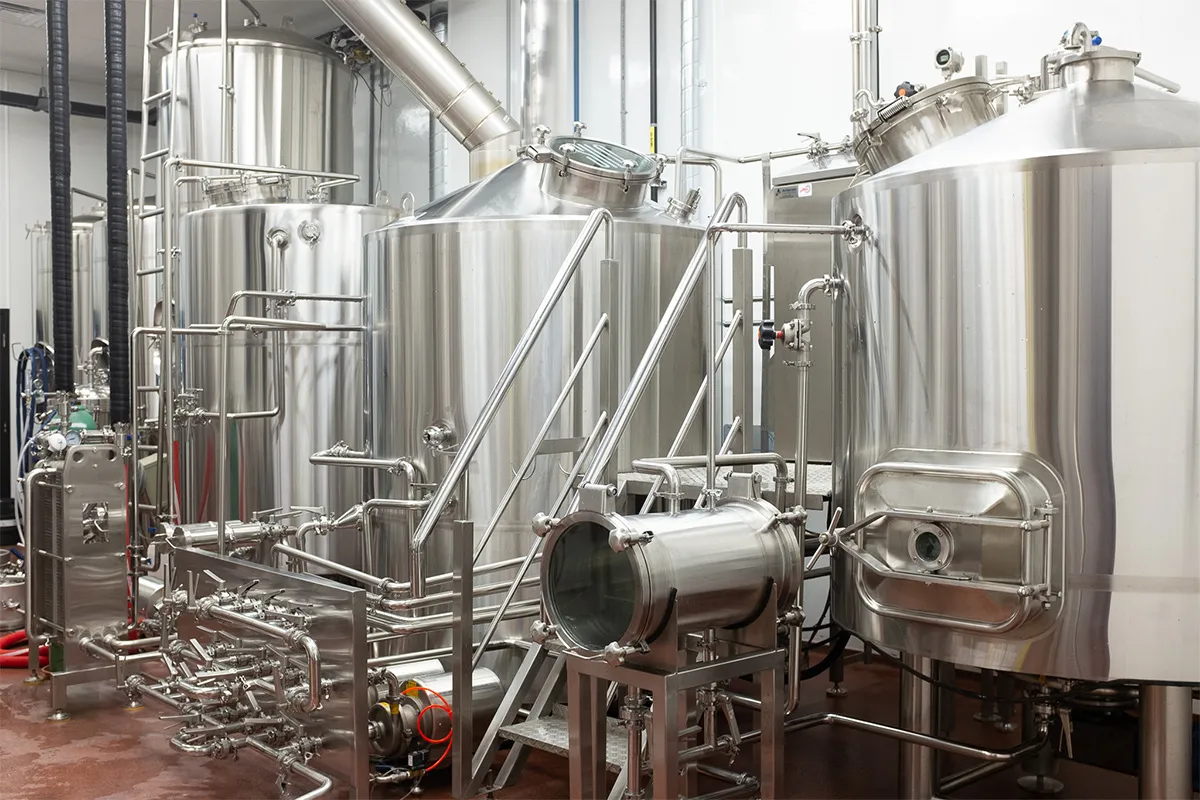

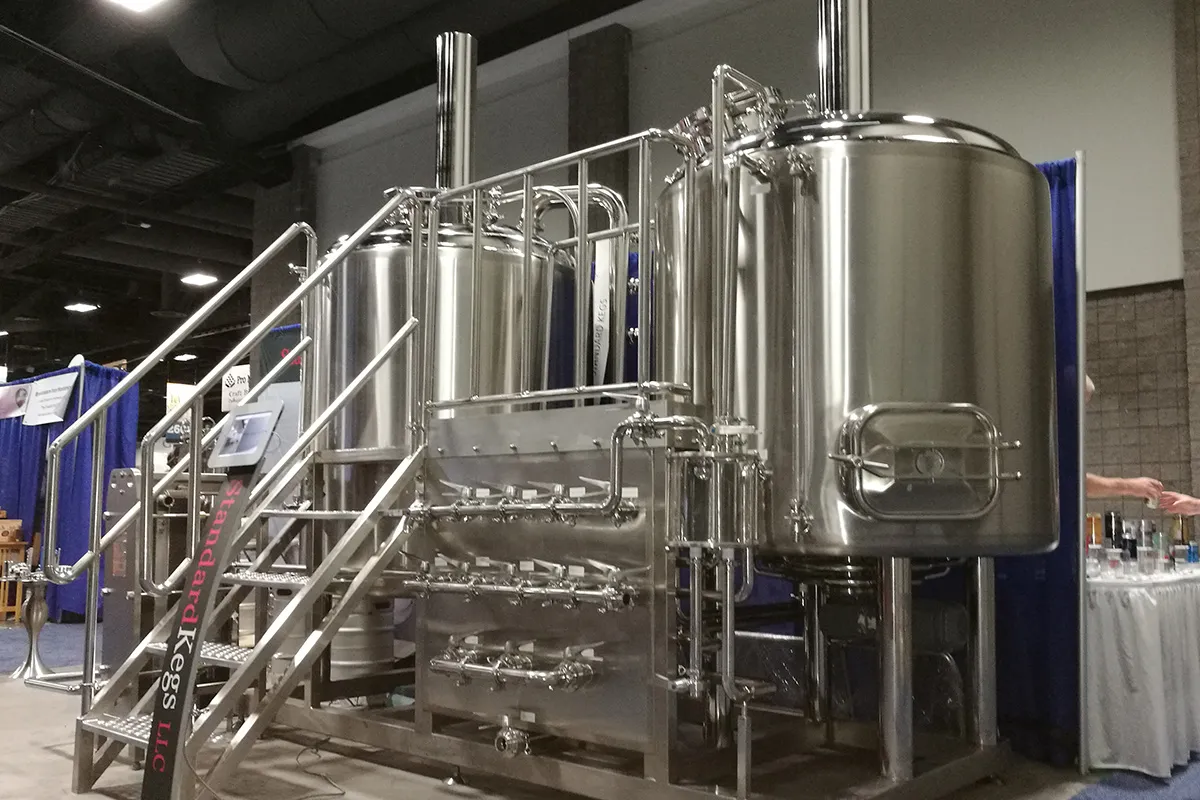

10BBL Brewhouse Unit
Mash tun/lauter tun+kettle/whirlpool tank
Mash tun+Lauter tun+kettle/whirlpool tank
Heating method: Steam/electric/gas heating
Gravity range: 10-16
Structure：Pre assembled or skid mounted
Water system: 20-30BBL hot liquor tank+20BBL Cold water tank
Control unit: PID control panel or PLC panel
Optional automatic control

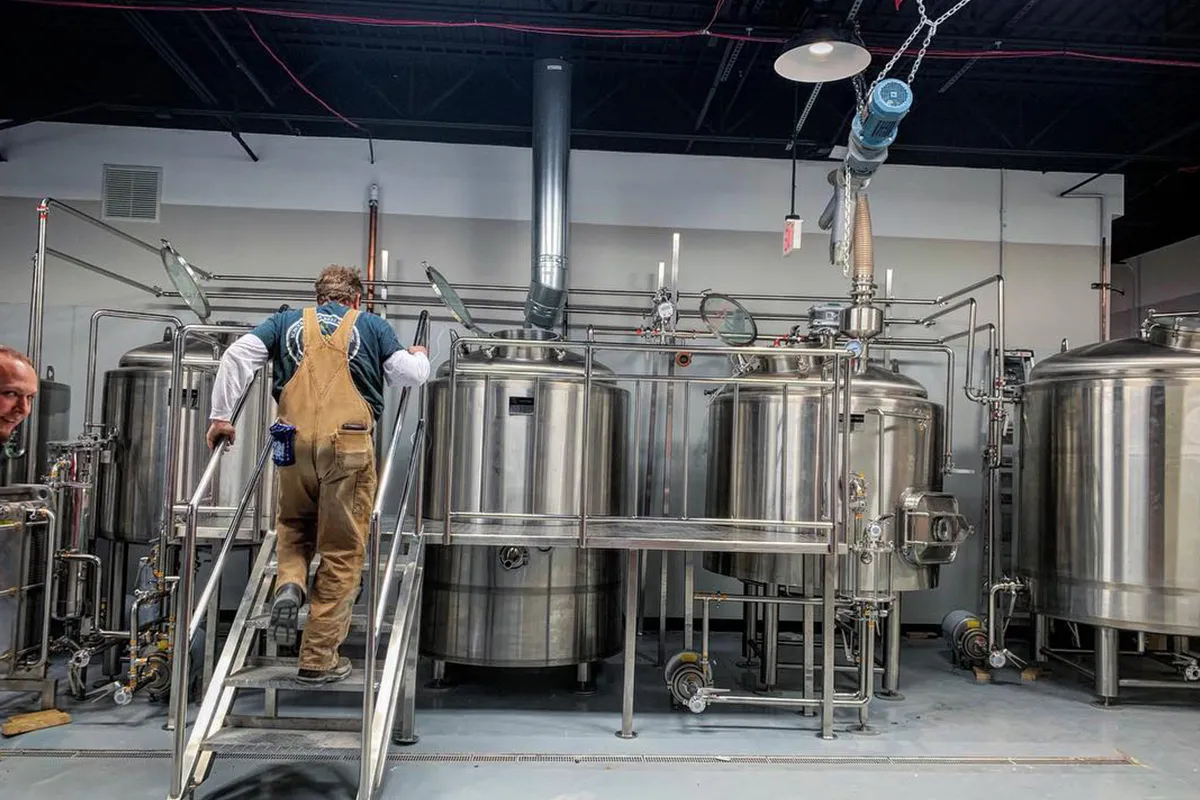

The 10BBL brewhouse is well fitted for small and medium size brewing capacity, which is with both beer production and tap room combined in the same facility.
It fits a big range of brewing capacity, which is a good size and design principle for the brewing in North America.
A tubular heat exchanger is specially configured for the hops additive while whirlpool process, so the hoppy style brewing with higher aroma flavor.
The steam heating method is higher recommended, however others like direct electric heat and gas fired system can be customized to fit the easier heating source in facility, and help with the local lower cost on investment of public parts.
The same design can be put into use of use of slight bigger system up to 15BBL size.
More flexible brewing recipe as investor’s customized request.
Further customization as facility and investor’s preference
Flexible heating method as facility request.
Easy to expand in case any production increase
Higher automation customization.
5BBL Two Vessel Brewhouse | |||
Brewhouse | |||
Mash/Lauter tun | 10BBL | 1 pc | Cone or domed seal top Tor stir with shaft connector to lower twist force Support leg wit adjustable leg bolts With grist hydrator installation for combination of grain handing unit Automatic lautering process control |
Kettle/whirlpool tank | 10BBL | 1 pc | Cone or domed seal top Tangent wort inlet Two clean wort outlet Support leg wit adjustable leg bolts Heating method: Electric heating of 40-60KW Direct gas fired: Burning chamber&exhaust pipe Steam heating, flexible for small brewing size. Steam condensing mounting with KWT. |
Heat exchanger | 20BBL/H | 1 set | Double stage, with aeration unit |
Lauter pump | 3m³/h | 1 set | Centrifugal pump, VFD control UL/CSA certified Optional: Pump mechanical with water cooling |
Mash/wort pump | 5m³/h | 1 set | Centrifugal pump, VFD control UL/CSA certified Optional: Pump mechanical with water cooling |
Vapor condenser | DN200 | 1 set | Installed with kettle for wort condensing With spray nozzles Cold water spraying while boiling process. |
Wort grant | 10L | 1 set | Visible glass Optional: Horizontal wort grant |
Valves&piping | DN32/50 | Assorted | Manual butterfly valve&diaphragm valve Quantity as exact brewing process design. Optional pneumatic butterfly valves |
Water station | |||
Hot water tank | 20BBL | 1 pc | Material: SUS304 Insulated on top, cylinder, bottom, insulation: 80mm Hot water storage from wort cooling. Heating method: Electric or steam. Jacket or coil installation under steam heating Optional: 30BBL HLT for more brewing request. |
Hot water pump | 5m³/h 24m | 1 set | Centrifugal pump SS304L pump head Optional: Extra backup pump for efficiency or in case of maintaining. |
Cold water tank | 20BBL | 1 pc | Material: SUS304 Temp maintaining: 3 degree Typically for wort cooling Insulated on top, cylinder, bottom, Polyurethane insulation, thickness: 80mm Cooling jacket combined with glycol loop With hot water after wort cooling returning to HLT. |
Cold water pump | 5m³/h 24m | 1 set | Centrifugal pump SS304L pump head US/CSA certified Pressure control&VFD control |
Control system | |||

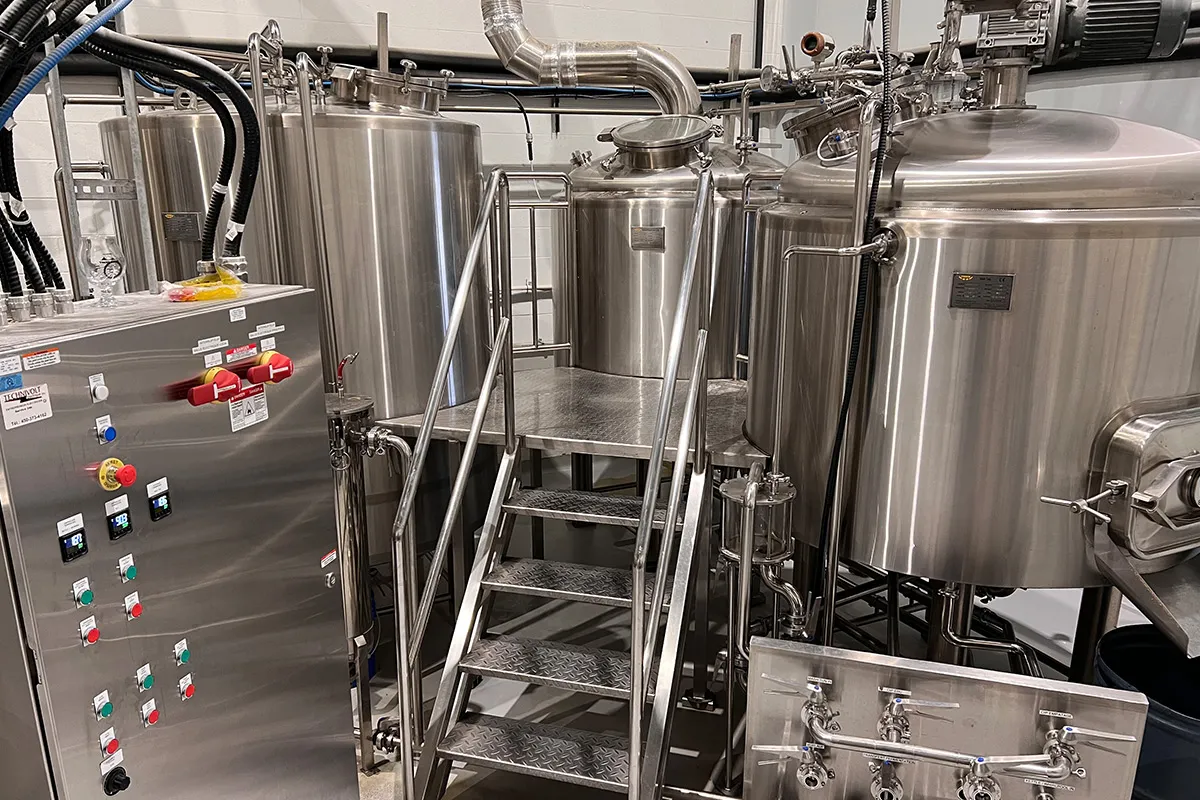

Main Control panel | 1 set | Stainless steel material, IP55/65 | |
Basic fitting brand: | / | PLC: Siemens or Allen-Bradley Speed controller: Danfoss; Allen-Bradley Low voltage: Schneider Control panel: TUV or UL/CUL certified Other customization possible | |
Possible for combination with distilling unit
Special design for higher gravity brewing
Stacked solution of mash/lauter tun and HLT
PLC control panel
Pneumatic valves for basic automation
