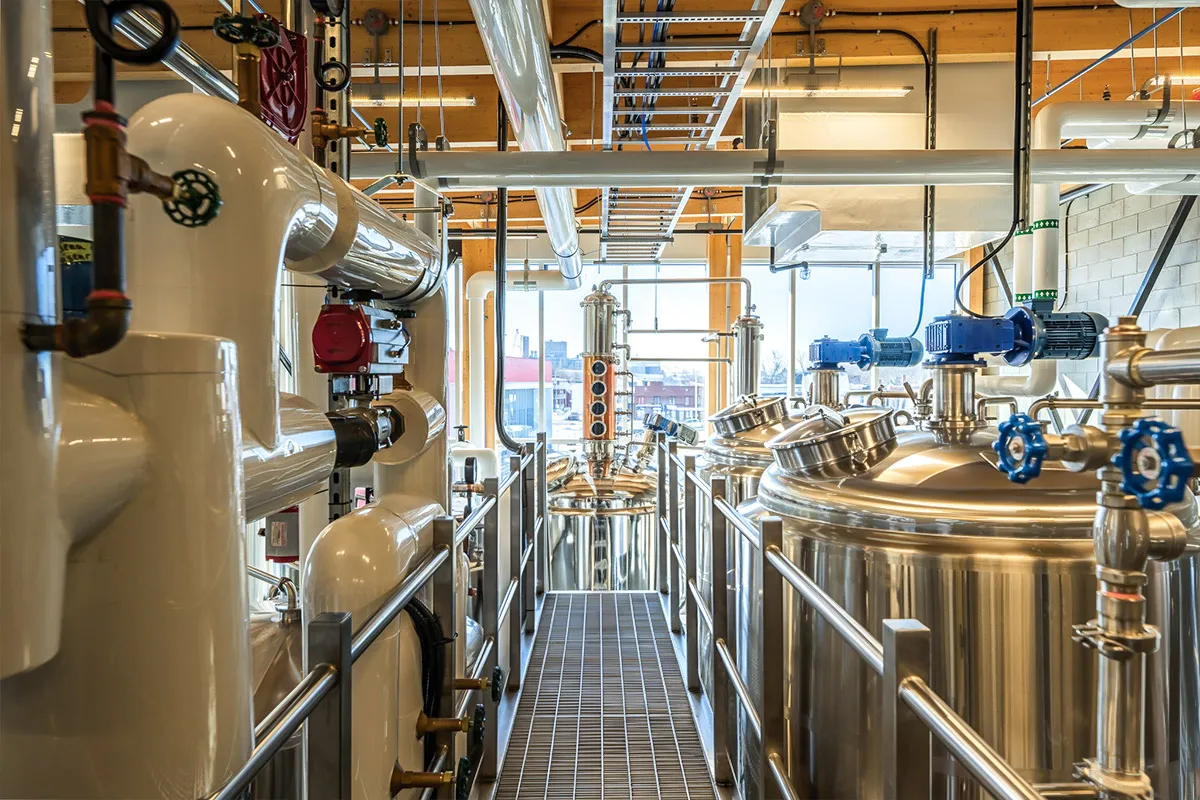

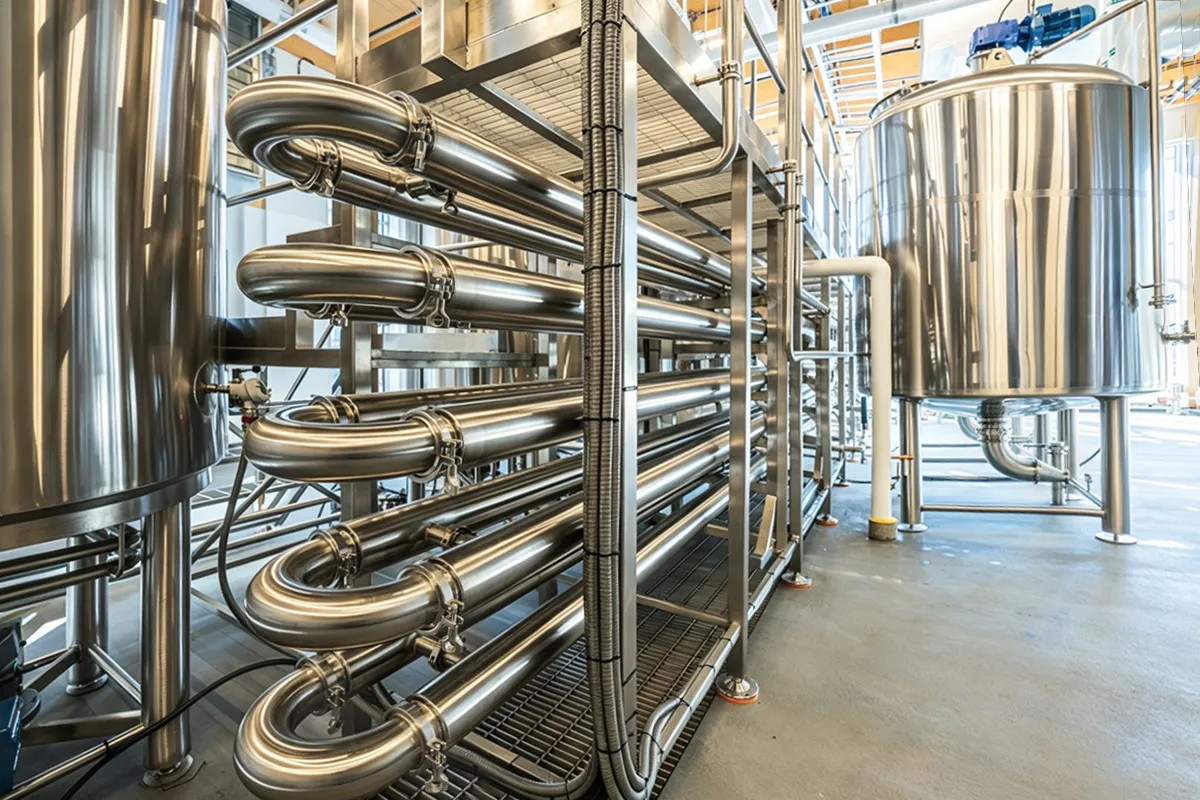

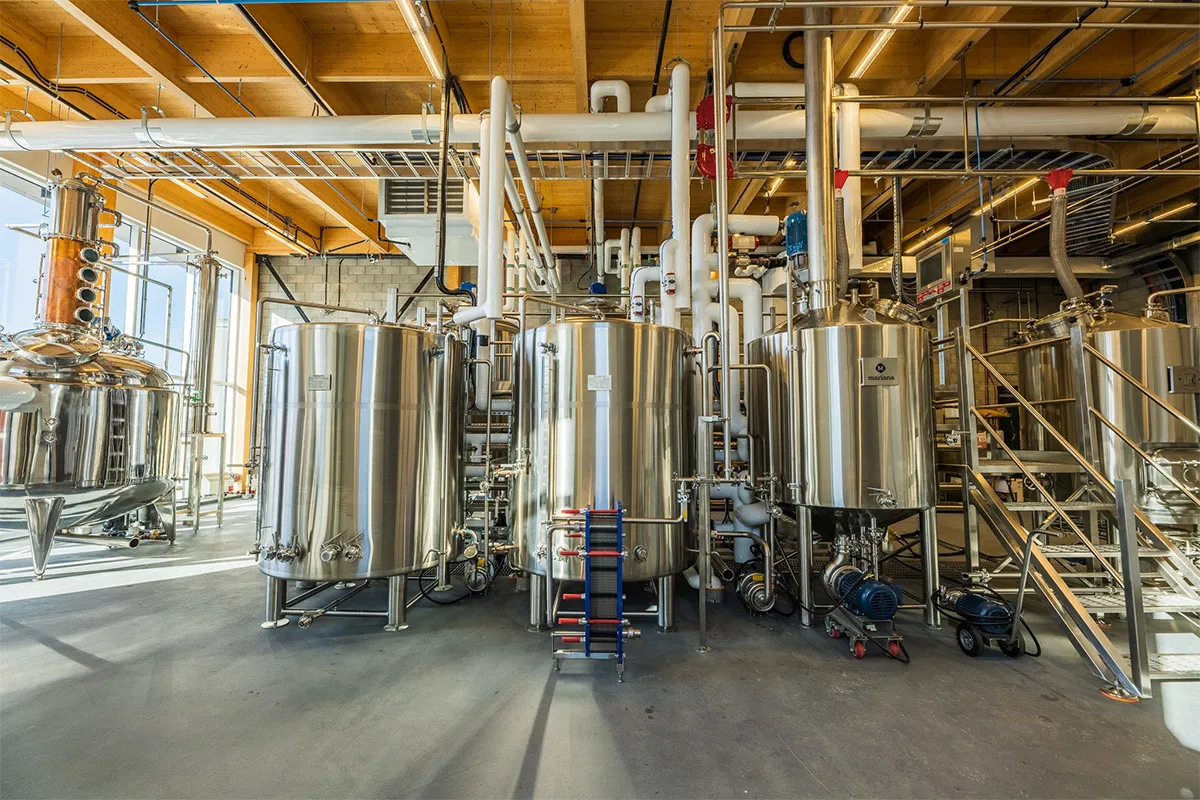

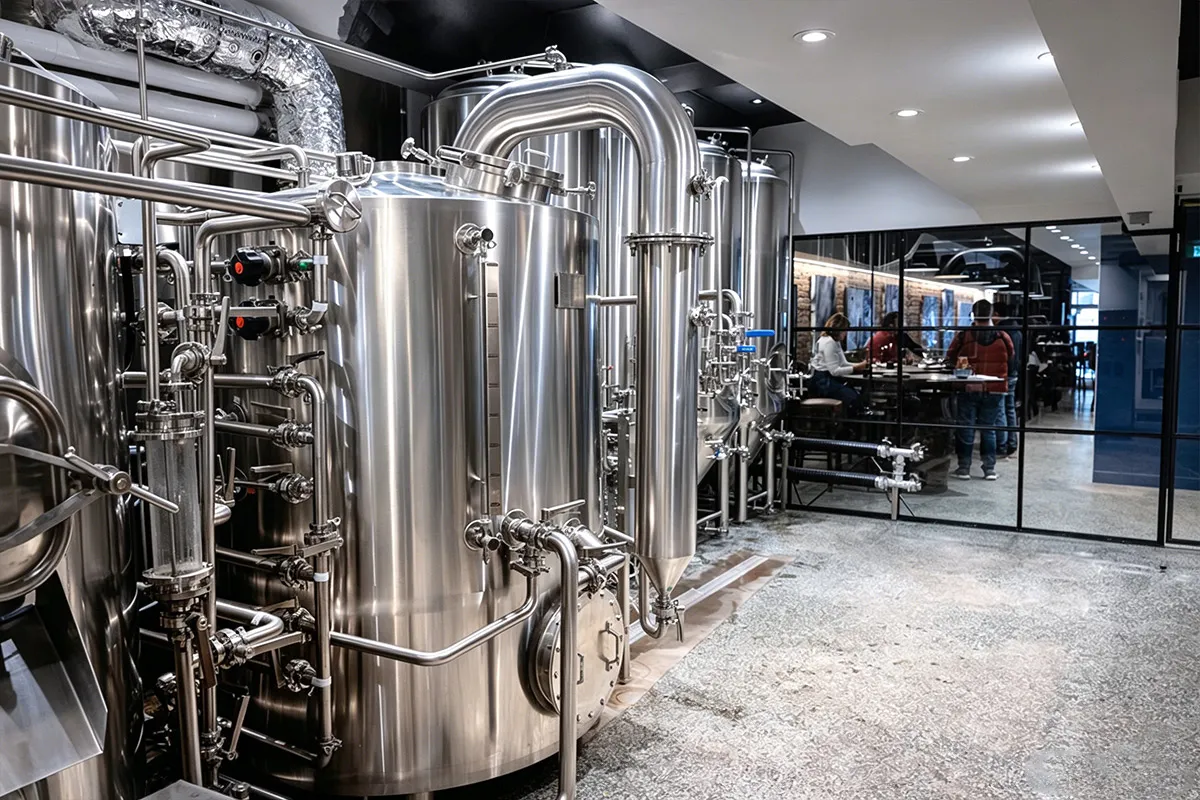

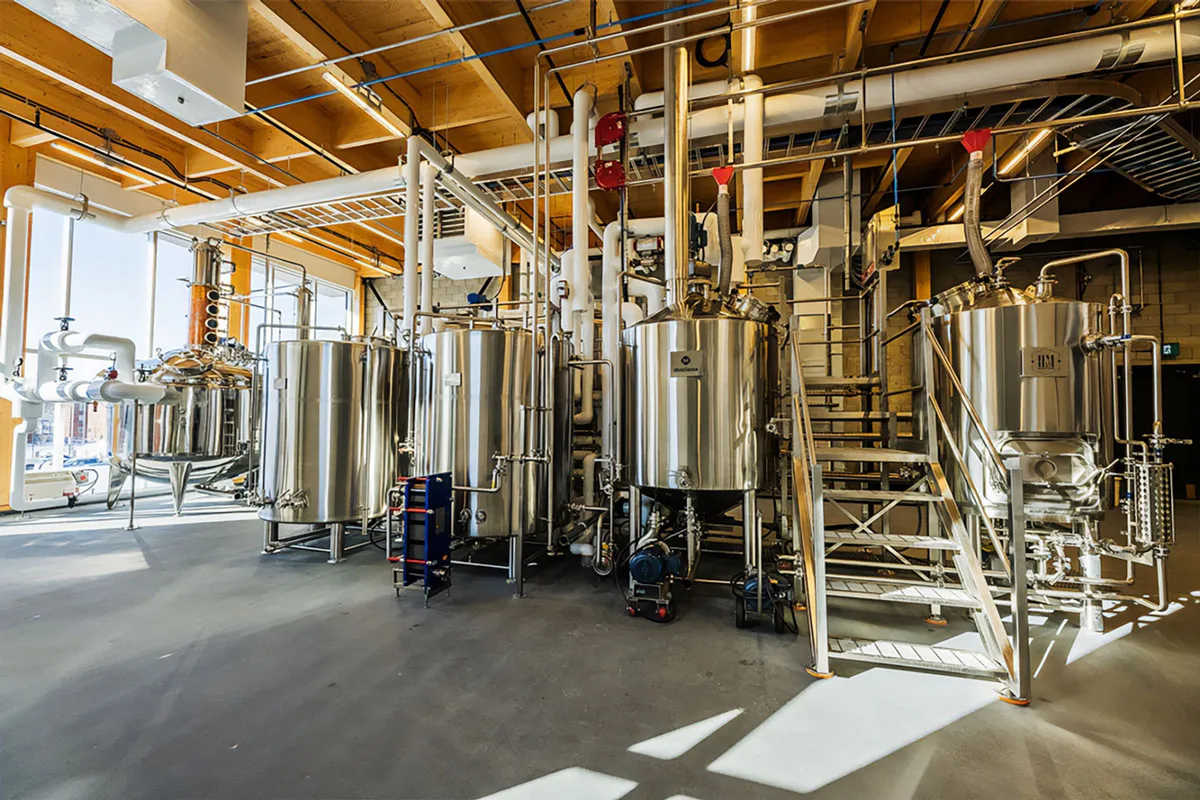

7BBL Brewouse System
Mash tun/lauter tun+kettle/whirlpool tank
Heating method: Steam/electric/gas heating
Structure：Pre assembled or skid mounted
Water system: 15BBL hot liquor tank+15BBL Cold water tank
Control unit: PID control panel or PLC panel
Optional automatic control
The 7BBL brewhouse is well fitted for small scale production capacity, which is flexible for commercial brewing or pub brewing.
With flexible heating method, it follows the easier possibility of facility.
Gas fired system is with burning chamber underneath and good exhaust venting condition.
Electric heating is with UL or CUL certified electric heaters.
Steam heating follows the regulated pressure of 1 bar in North America, a reasonable steam jacket design helps with good evaporation.
The system designed by ZYB is more compact, which occupies very less space in facility, and it is easy to operate.
The whole system fits the request of big range of 110-600V; 50-60HZ.
Well fitted for local regulation.
Small floor plan
Big range configuration&heating method
Flexible on different customization
A big plato range as different recipe request.
Flexible heating method as facility request.
5BBL Two Vessel Brewhouse | |||
Brewhouse | |||
Mash/Lauter tun | 7BBL | 1 pc | Cone or domed seal top Tor stir with shaft connector to lower twist force Support leg wit adjustable leg bolts |
Kettle/whirlpool tank | 7BBL | 1 pc | Cone or domed seal top Tangent wort inlet Two clean wort outlet Support leg wit adjustable leg bolts Heating method: Electric heating of 40-60KW Direct gas fired: Burning chamber&exhaust pipe Steam heating, flexible for small brewing size. |
Heat exchanger | 14BBL/H | 1 set | Double stage, with aeration unit |
Lauter pump | 3m³/h | 1 set | Centrifugal pump, VFD control UL/CSA certified Optional: Pump mechanical with water cooling |
Mash/wort pump | 5m³/h | 1 set | Centrifugal pump, VFD control UL/CSA certified Optional: Pump mechanical with water cooling |
Vapor condenser | DN200 | 1 set | Installed with kettle for wort condensing With spray nozzles Cold water spraying while boiling process. |
Wort grant | 10L | 1 set | Visible glass Optional: Horizontal wort grant |
Valves&piping | DN32/50 | Assorted | Manual butterfly valve&diaphragm valve Quantity as exact brewing process design. Optional pneumatic butterfly valves |
Water station | |||
Hot water tank | 15BBL | 1 pc | Material: SUS304 Insulated on top, cylinder, bottom, insulation: 80mm Hot water storage from wort cooling. Optional: Three times of Brewhouse capacity. Heating method: Electric or steam. |
Hot water pump | 5m³/h 24m | 1 set | Centrifugal pump SS304L pump head Optional: Extra backup pump for efficiency or in case of maintaining. |
Control system | |||
Main Control panel | 1 set | Stainless steel material, IP55/65 | |
Basic fitting brand: | / | PLC: Siemens or Allen-Bradley Speed controller: Danfoss; Allen-Bradley Low voltage: Schneider Control panel: TUV or UL/CUL certified Other customization possible | |
Possible for combination with distilling unit
Special design for higher gravity brewing
Stacked solution of mash/lauter tun and HLT

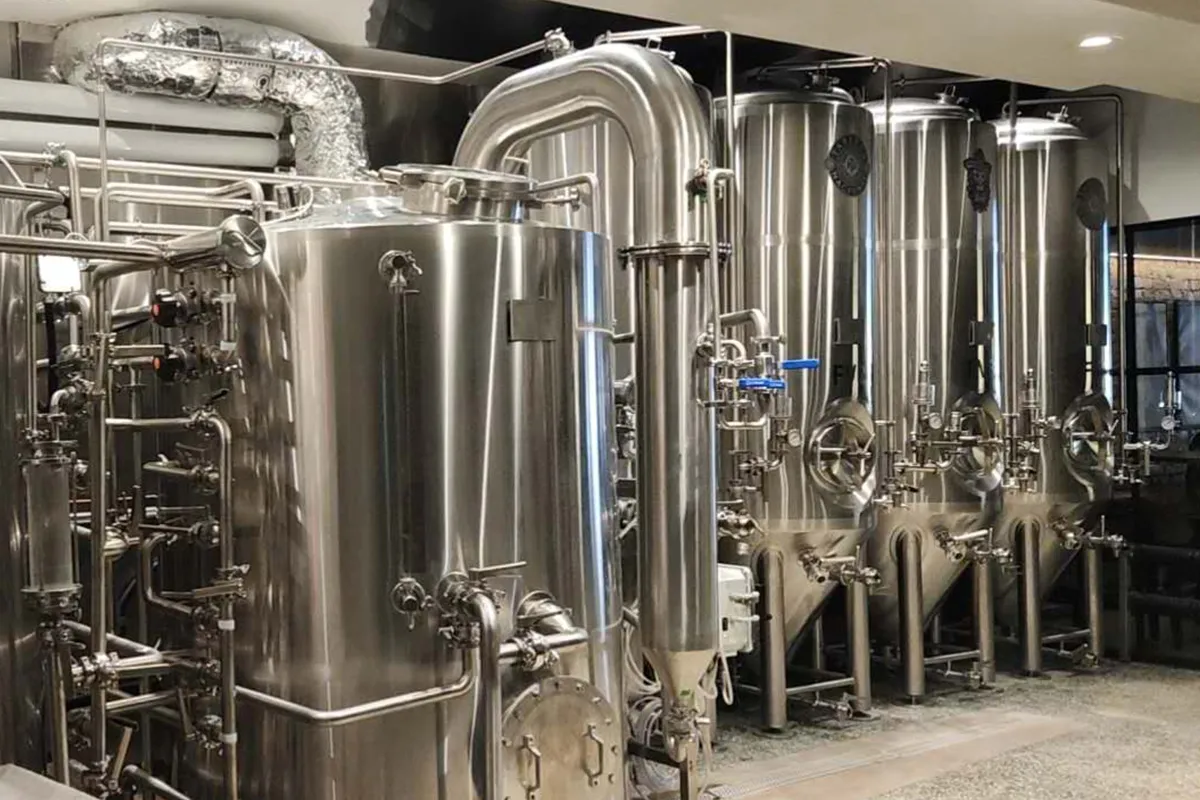

PLC control panel
Pneumatic valves for basic automation
