Combined Brewhouse System
Capacity：500L-1000L per brew
Configuration：Mash/boiling tank+lauter/whirlpool tank
Heating method: Steam/electric/gas heating
Structure：Pre assembled or skid mounted
Water system: 10-20HL hot water tank
Control unit: PID control panel or PLC panel
Material: SUS304/304L/Copper cladding
The Combined Brewhouse System under more compact design, which fits more German brewing habit and brewing request. This configuration makes the brewing flexible for either infusion or decoction brewing.
The further customization is possible if client wants to make it well matched with the brewing recipe.
It is for basic brewing process request, but with further possibility of automation.

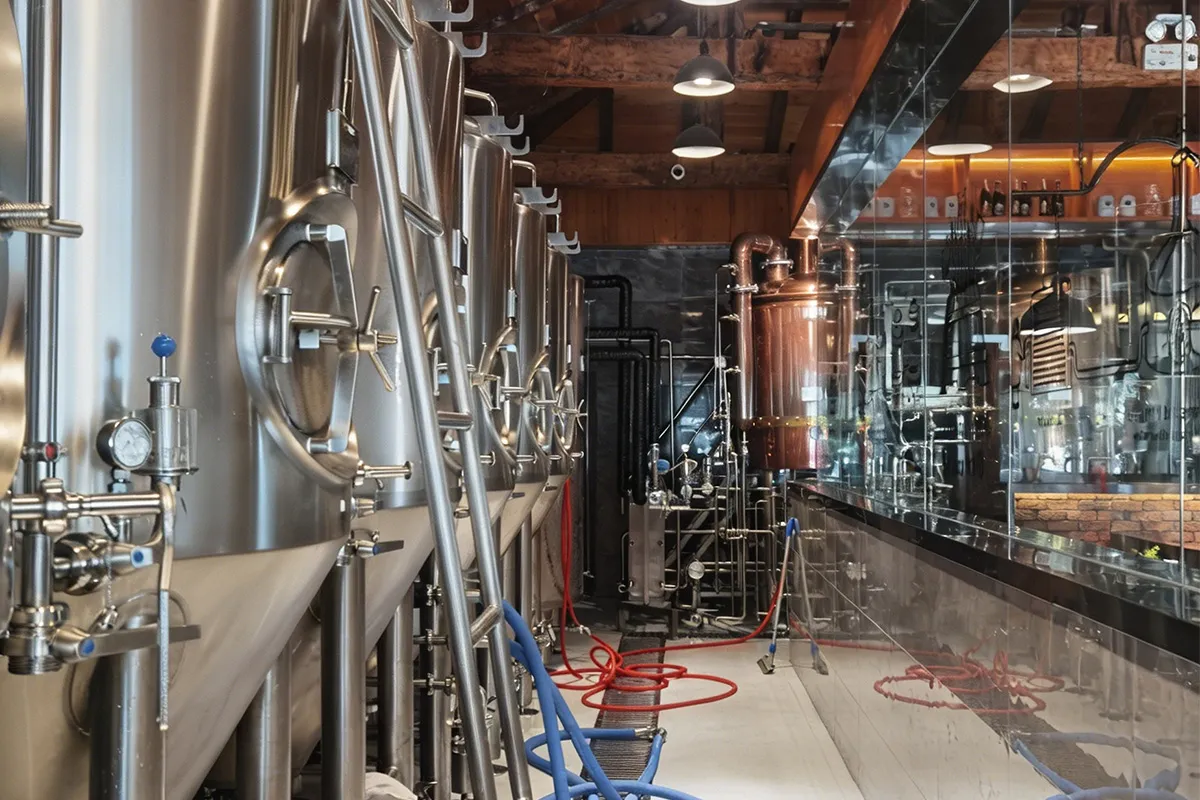

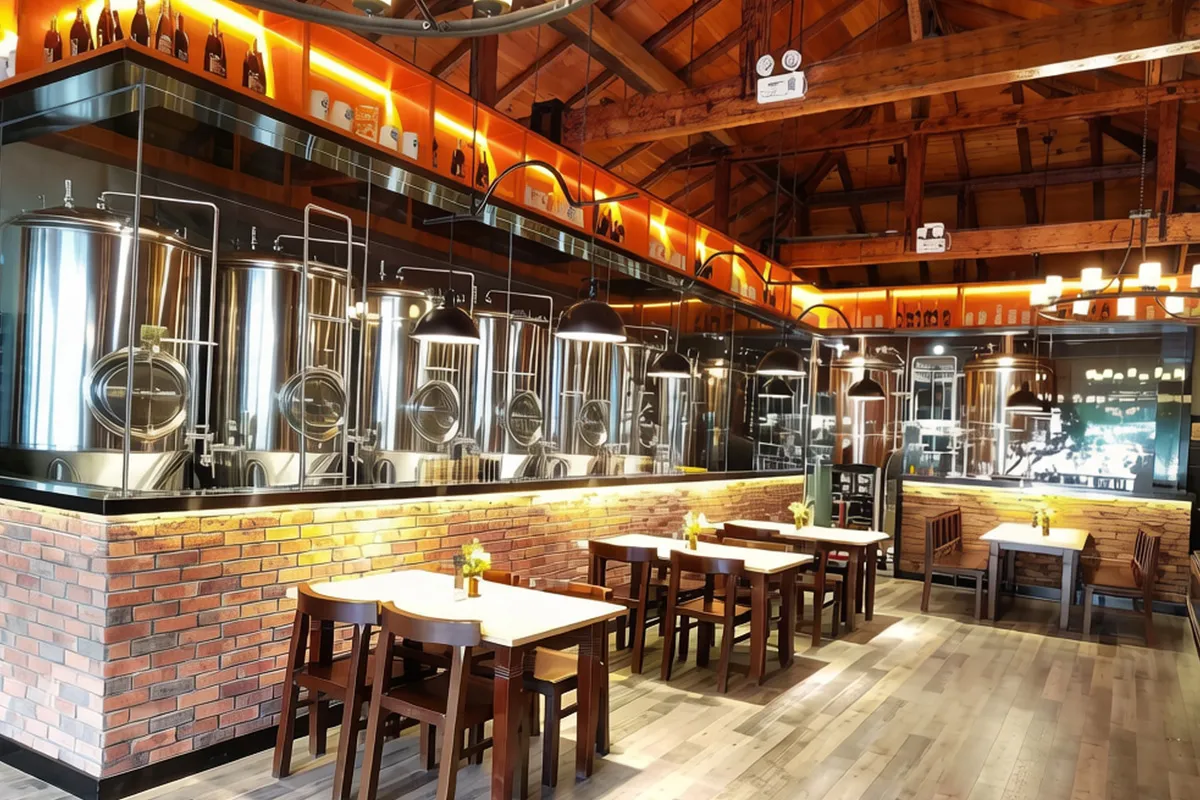

Space saving is another good advantage while still fits the request of different brewing request.
Big saving on floor plan
Skid mounting to save installation time&cost
Flexibility on either infusion or decoction brewing.
A big plato range possible
Different heating method
500L-1000L Combined Brewhouse | |||
Combined Brewhouse | |||
Mash/boiling tank | 500-1000L | 1 pc | Cone or domed seal top Top stir, with shaft connector, VFD control Steam jacket on cylinder&cone bottom, separate control Outer cladding: SS304 or copper Support leg wit adjustable leg bolts |
Lauter whirlpool tank | 500-1000L | 1 pc | Stacked solution Upper level lauter tun; lower level whirlpool tank Lauter tun with top stir, VFD control, blade stir unit Filter plate, bottom wort collection coil & counter washing pipe Grain out paddle for automatic grain out & spent grain removing Whirlpool tank with flat bottom but slight slope Central outlet for clean wort Support leg wit adjustable leg bolts |
Heat exchanger | 1000-2000L/H | 1 set | Double stage, with aeration unit Hot water from first stage wort cooling returning to HLT Second stage via glycol cooling when necessary. |
Lauter pump | 1-3m³/h | 1 set | Centrifugal pump, VFD control |
Mash/wort pump | 3-5m³/h | 1 set | Centrifugal pump, VFD control |
Steam condenser | DN200 | 1 set | Installed with kettle for wort condensing With spray nozzles Cold water spraying while boiling process. |
Wort grant | 10L | 1 set | Visible glass |
Valves&piping | DN32/25 | Assorted | Manual butterfly valve Quantity as exact brewing process design. |
Water station | |||
Hot water tank | 1000-2000L | 1 pc | Material: SUS304 Insulated on top, cylinder, bottom Heating method: Steam jacket; Steam coil Hot water storage from wort cooling. Optional: Three times of Brewhouse capacity. |
Hot water pump | 5m³/h | 1 set | Centrifugal pump SS304L pump head Optional: Extra backup pump for efficiency or in case of maintaining. |
Control system | |||
Main Control panel | 1 set | Stainless steel material, IP55/65 | |
Fitting brand: | / | PLC: Siemens or Allen-Bradley Speed controller: Danfoss/Beckhoff/Allen-Bradley Low voltage: Schneider Control panel: TUV or UL/CUL certified Other customization possible | |
Skid mounting
Automatic control system
Cold water system for wort cooling

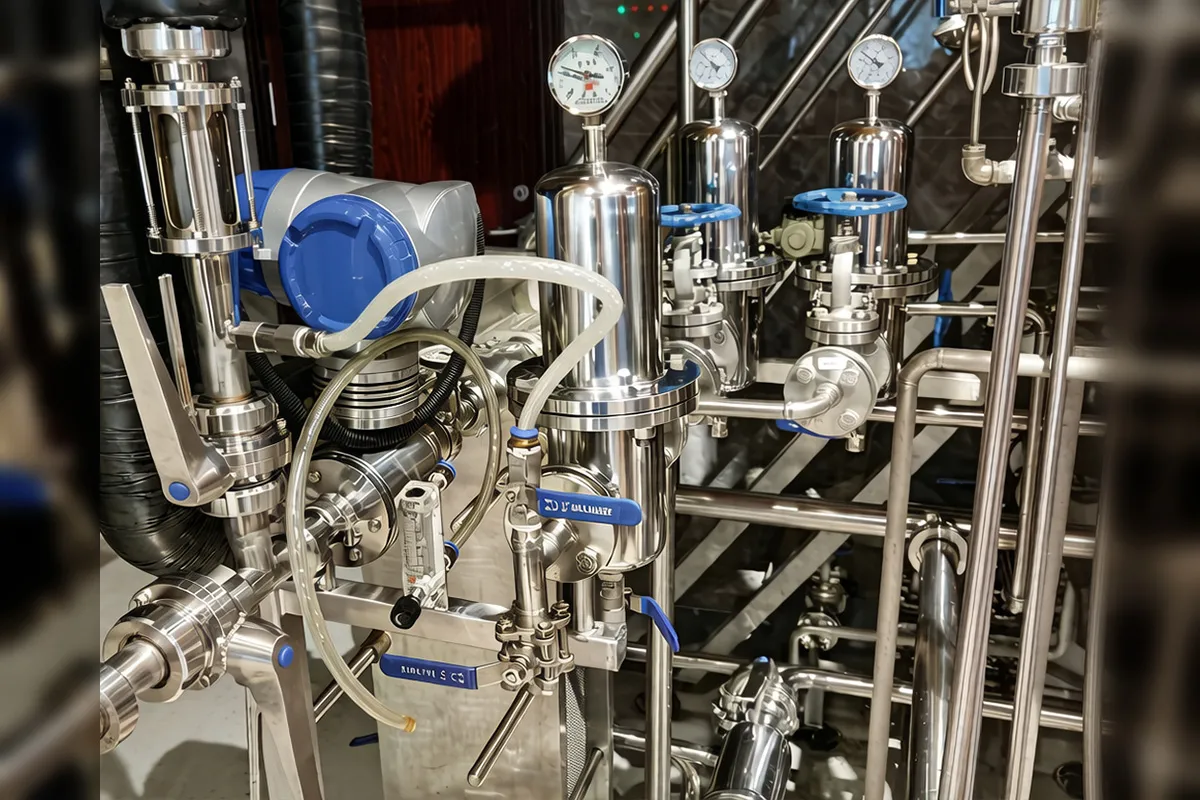

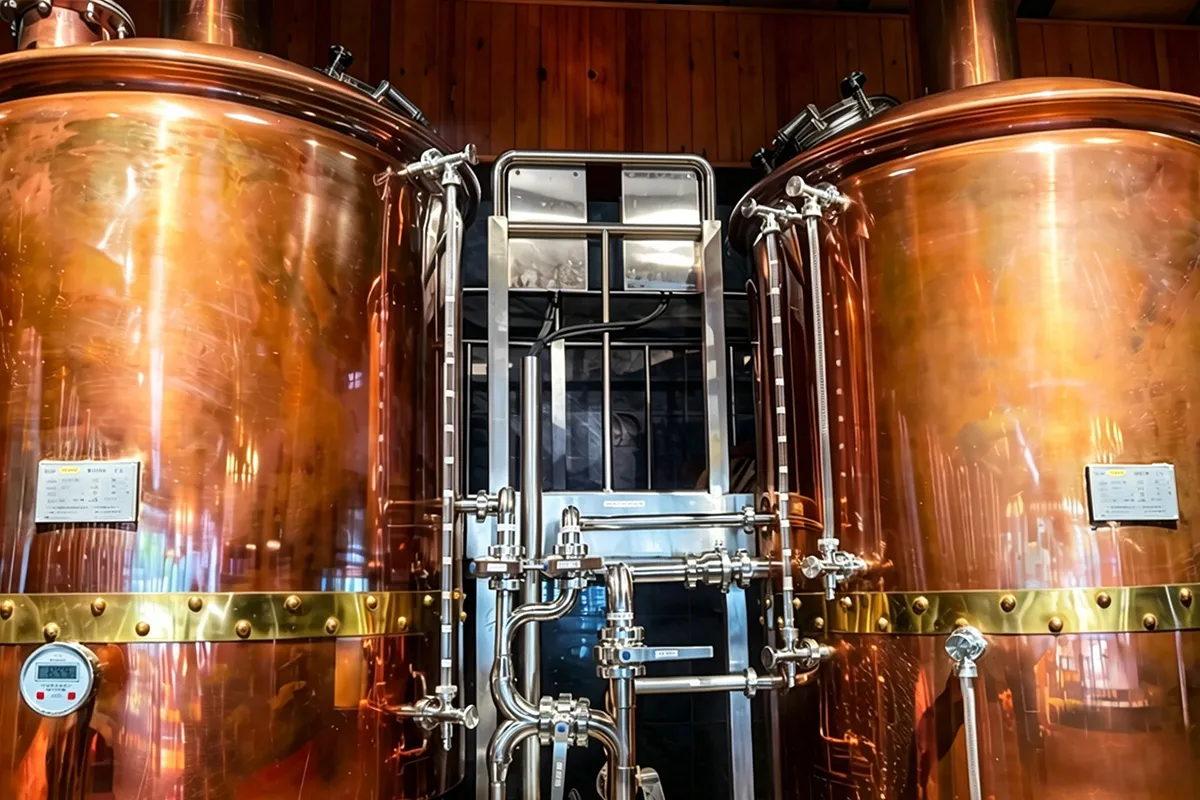

Copper or partial copper cladding
PLC control panel
