Deeper Roots Brewing 10HL Semi Automatic Brewery Project

Deeper Roots Brewing in Denmark operates a 10HL semi automatic brewery system for authentic craft beer production. Combines manual control with automated precision for consistent quality.

Home >> Cases >> Europe

Deeper Roots Brewing

Projects:

10HL Semi Automatic Brewery

Location:

Annebergparken 28c 4500 Nykøbing Sjælland Denmark

Deeper Roots Brewing 10HL Semi Automatic Brewery Project

Project Description:

The basic configuration as below:

Full grain handling system:

Malt mill 500kg, stainless steel

Auger transfers milled malt from mill outlet to the grist case

Chain disc conveyor extended to mash tun directly and combined with grist hydrator.

Brewhouse:

10HL combined 3 vessel brewhouse (mash tun+lauter tun + kettle/whirlpool tank), pneumaticl valves , steam heating

Water system

20HL HLT with pump, combined with brewhouse unit

Cellar system:

6×20HL CCT fully preassembled hard piping and fittings for glycol.

Control system:

SS control panel, with Siemens PLC, S7-1500 serial

Siemens HMI monitor mounted on brewhouse brewdeck.

Cooling system

5HP chiller, 1000L glycol tank

CIP

100L CIP trolley, 3 vessels

Related Pictures

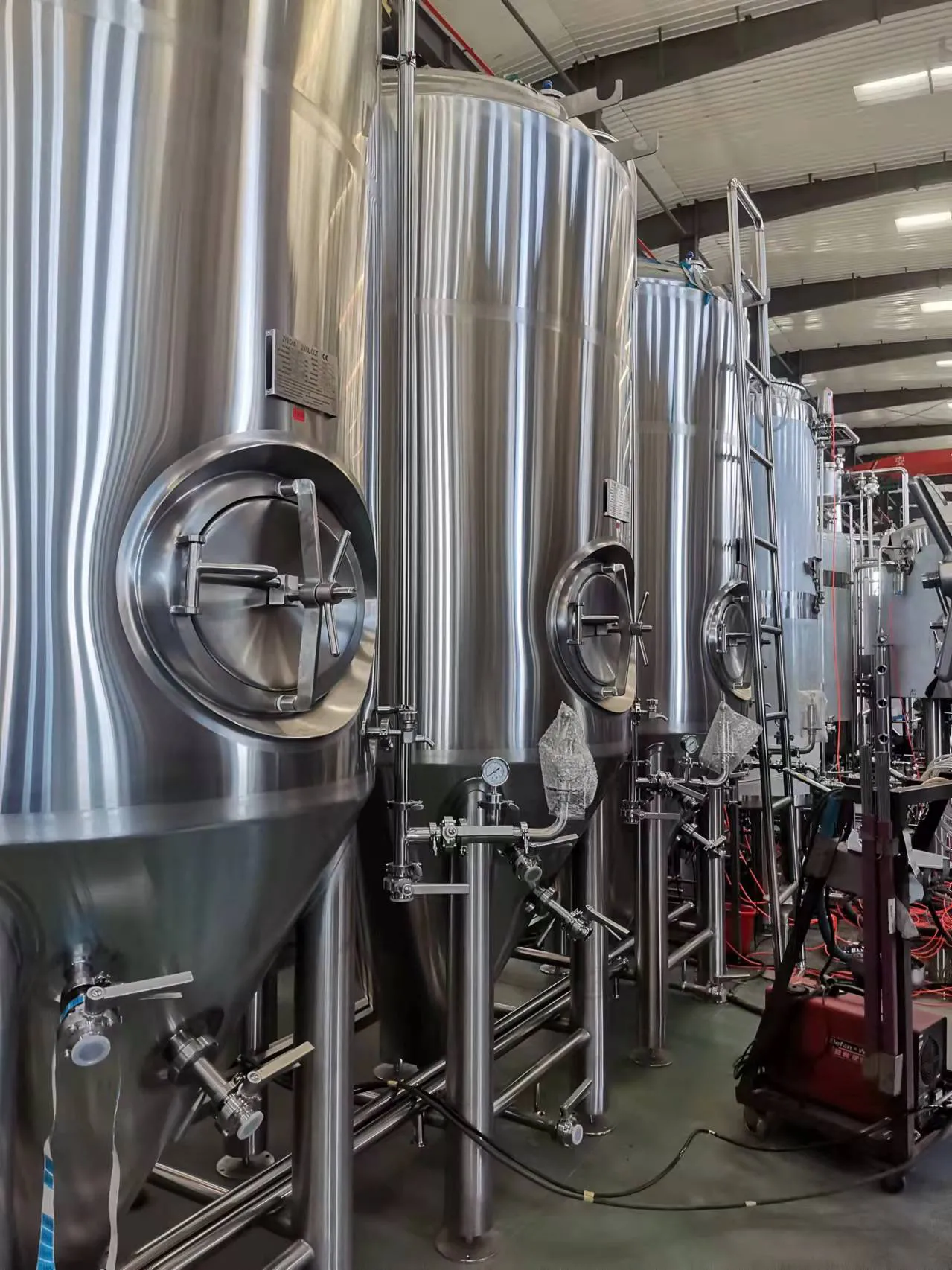

Deeper Roots Brewing 10HL semi automatic brewhouse complete system installation

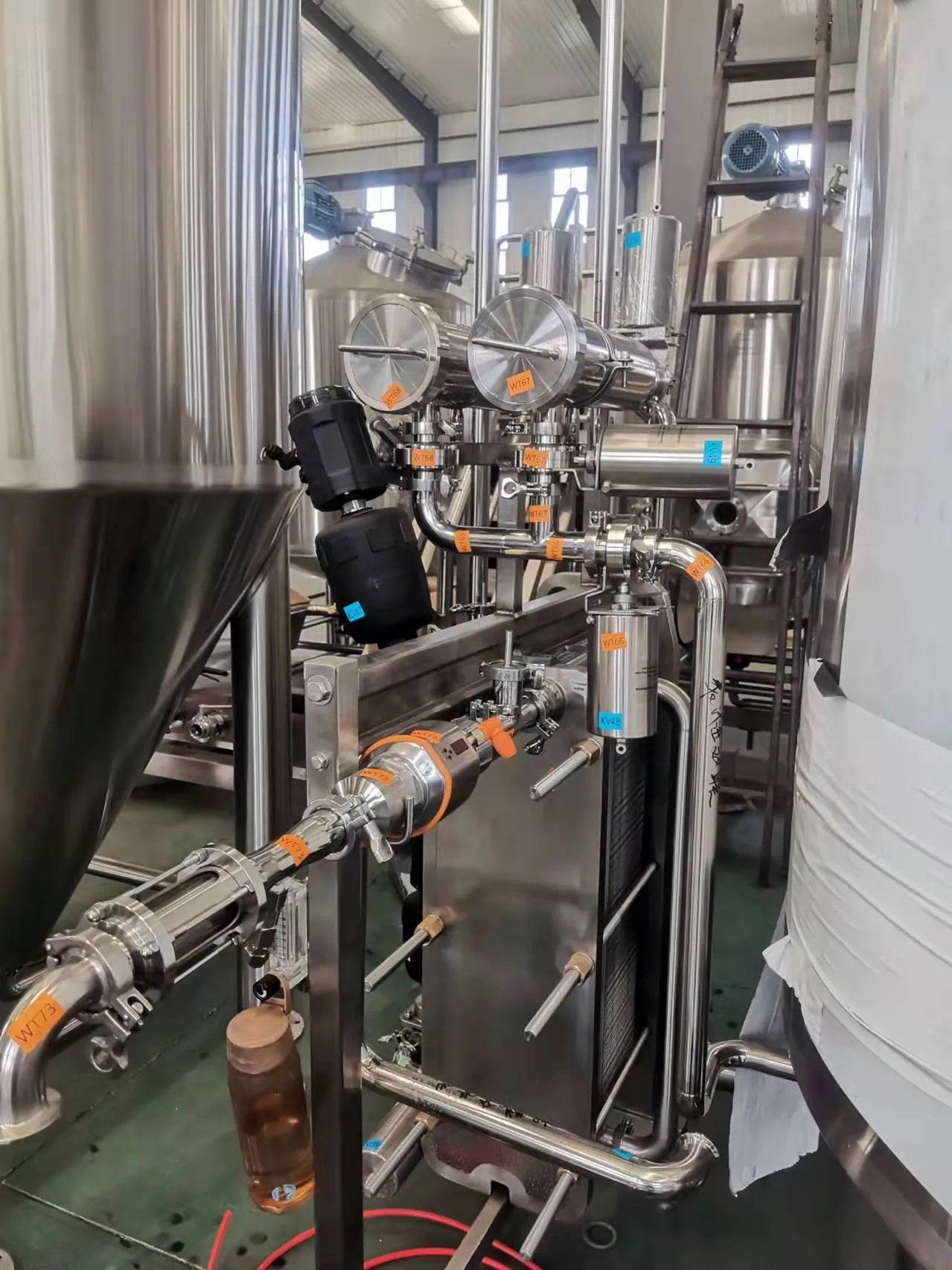

Brewmaster operating control panel on 10HL semi automatic brewery equipment

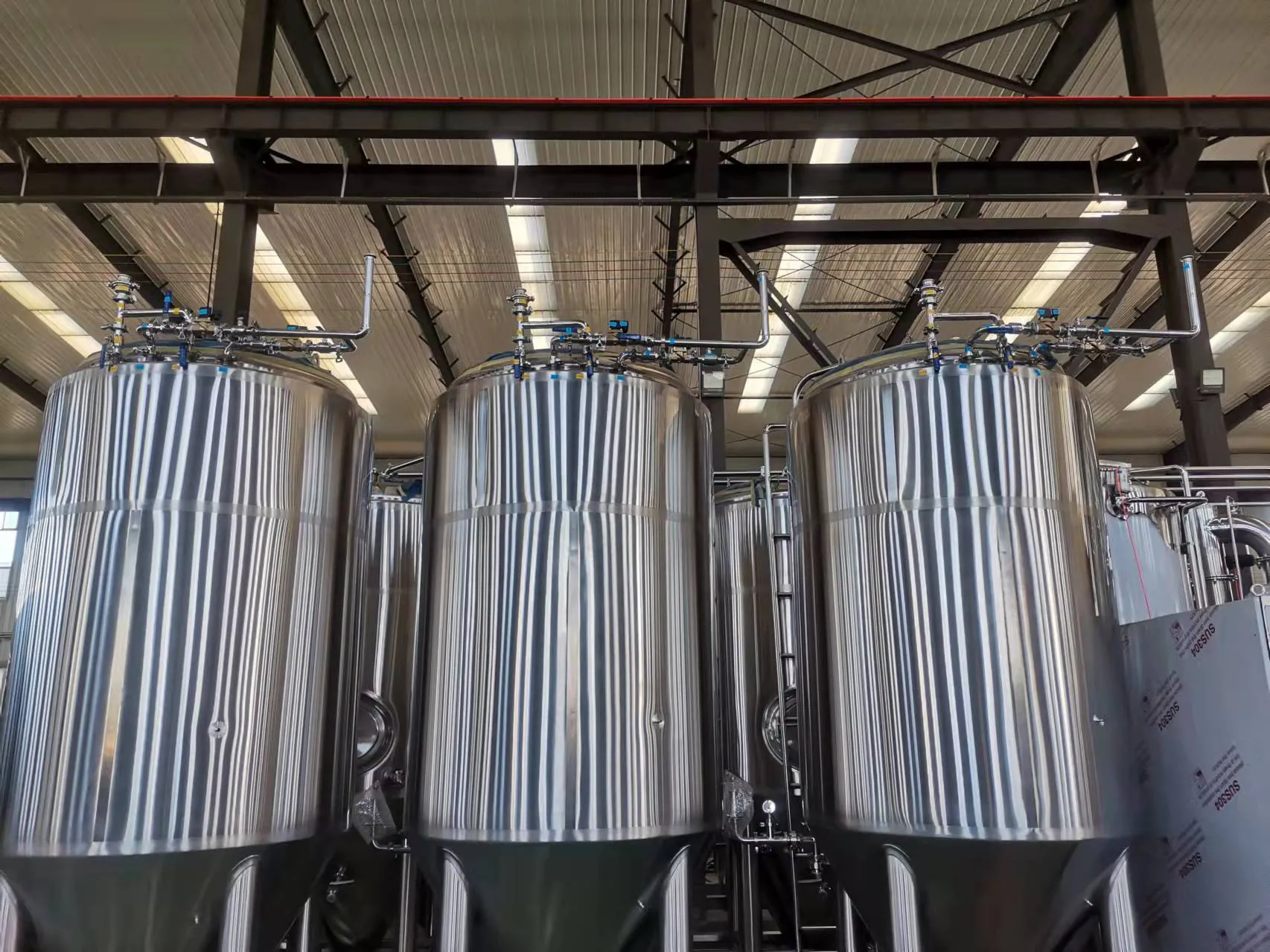

10HL mash lauter tun and kettle whirlpool vessels at Danish craft brewery

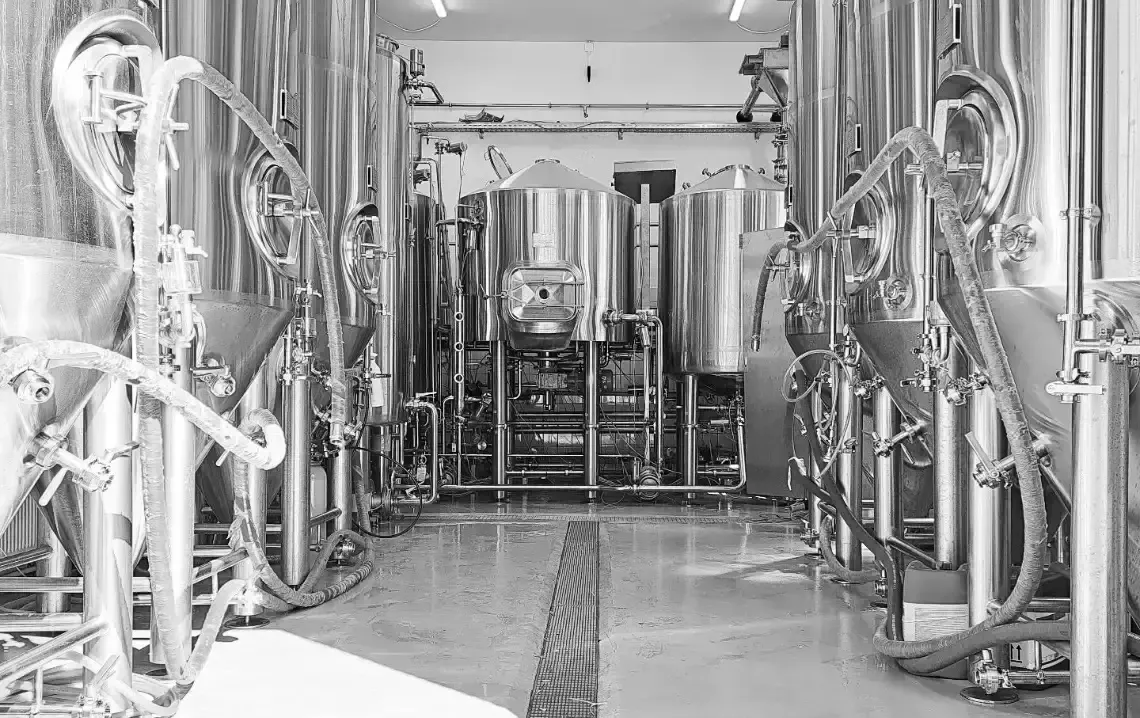

Stainless steel fermentation tanks at Deeper Roots Brewing 10HL brewery

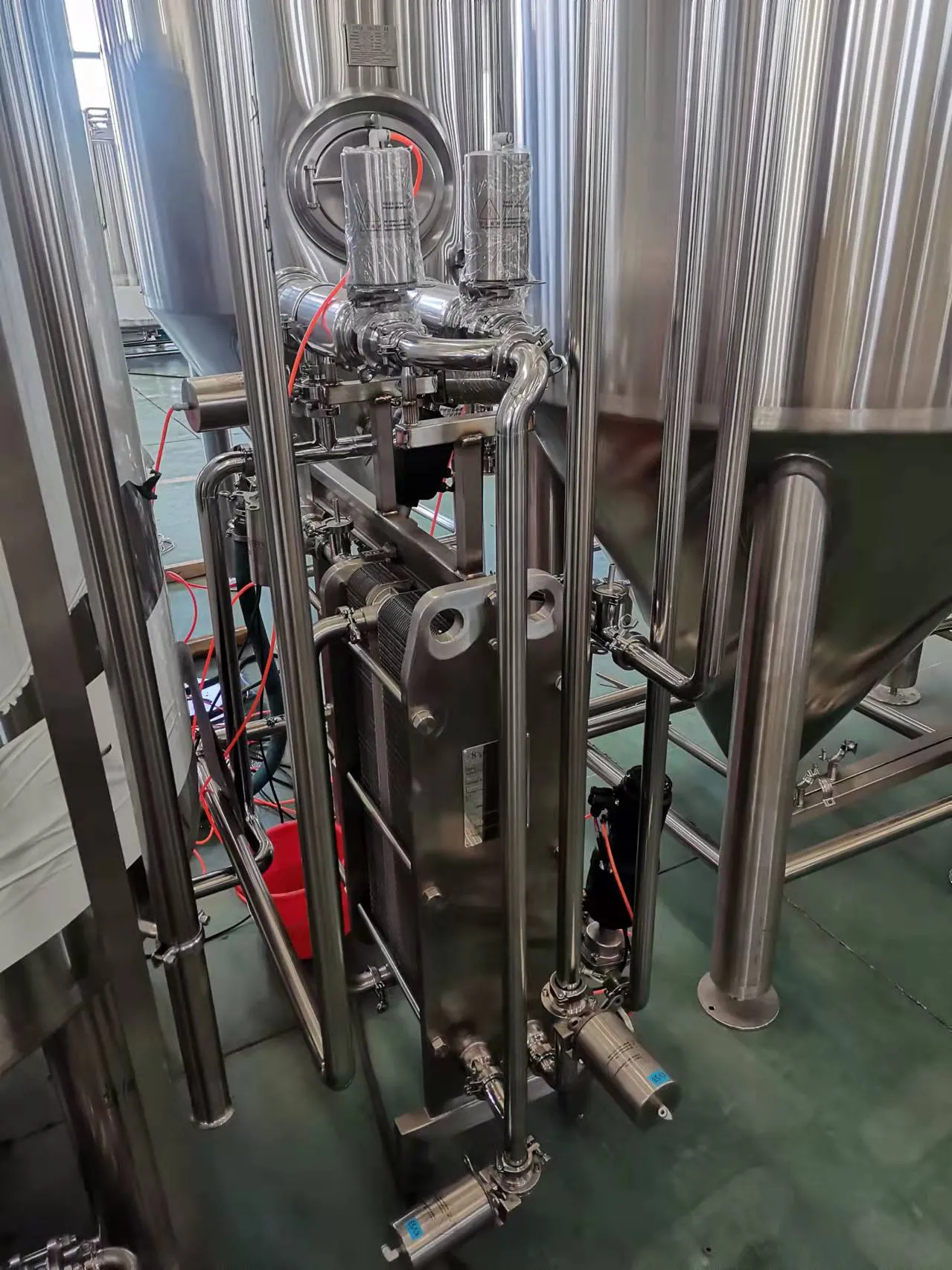

Deeper Roots Brewing beer cafe interior with visible 10HL brewing area
