La Gorge Fraiche 3000L Brewing System Project

Projects:

30HL brewing system

Location:

Canal du Demi 2 avenue Joseph Lazare 34500 Beziers,France

Project Description:

The basic configuration as below:

Milling unit:

Platform

Malt miller

2 Chain disc conveyors

Grist hopper

Brewhouse:

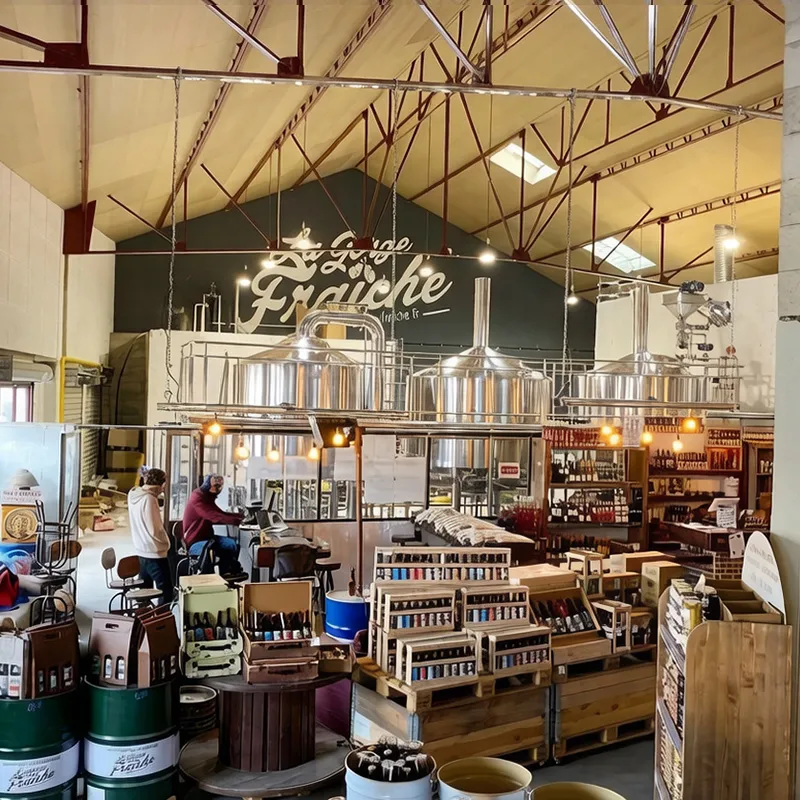

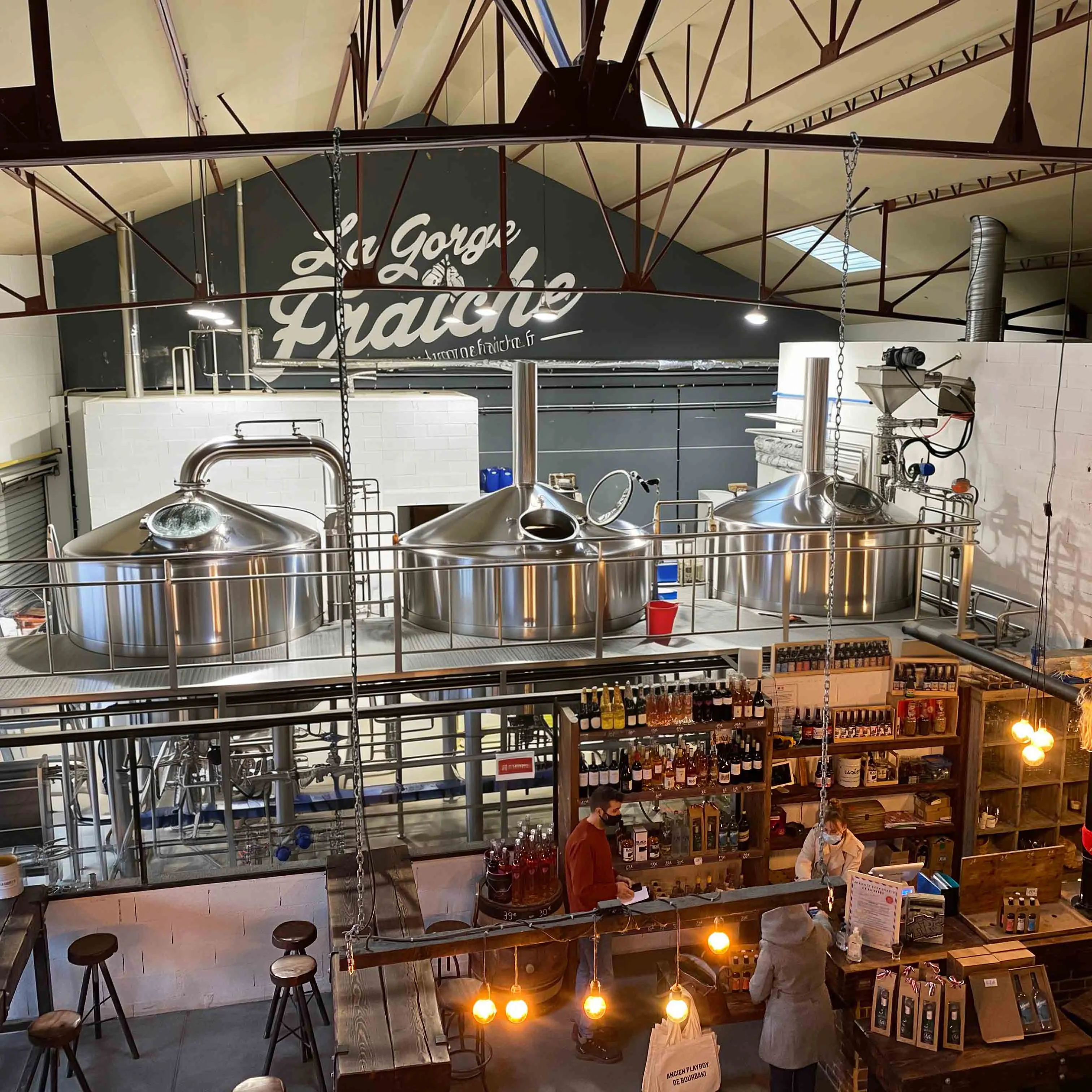

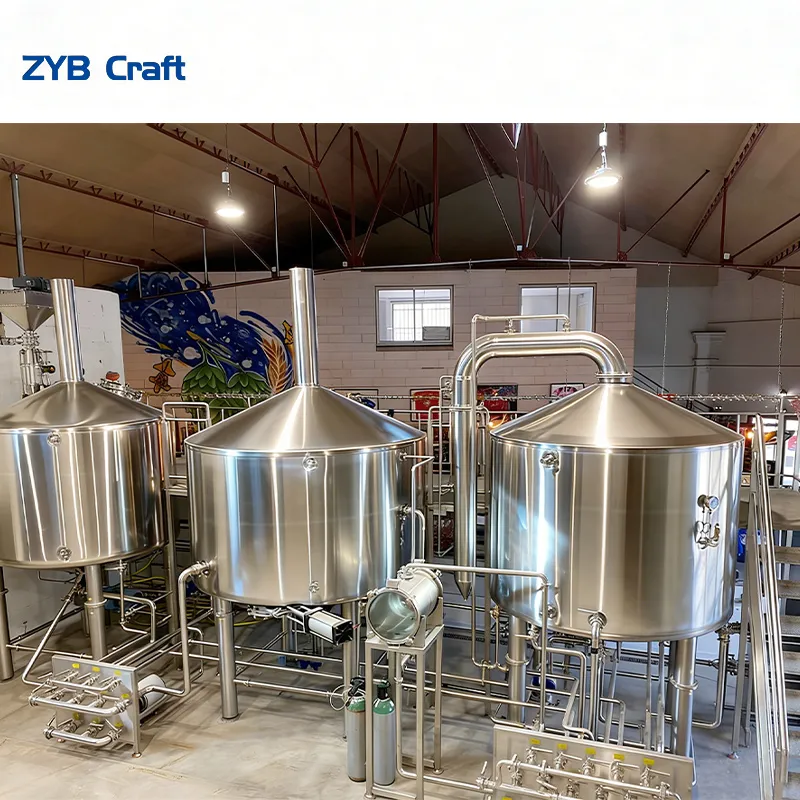

3000L 3 vessel brewhouse(Mash tun+Lauter tun+Kettle tun+Whirlpool tun)

Single stage plate heat exchanger

Water system

60HL Hot water tank +hot water pump

55HL Cold water tank + cold water pump

Steam unit

Steam distributor

Steam lines

Cellar system:

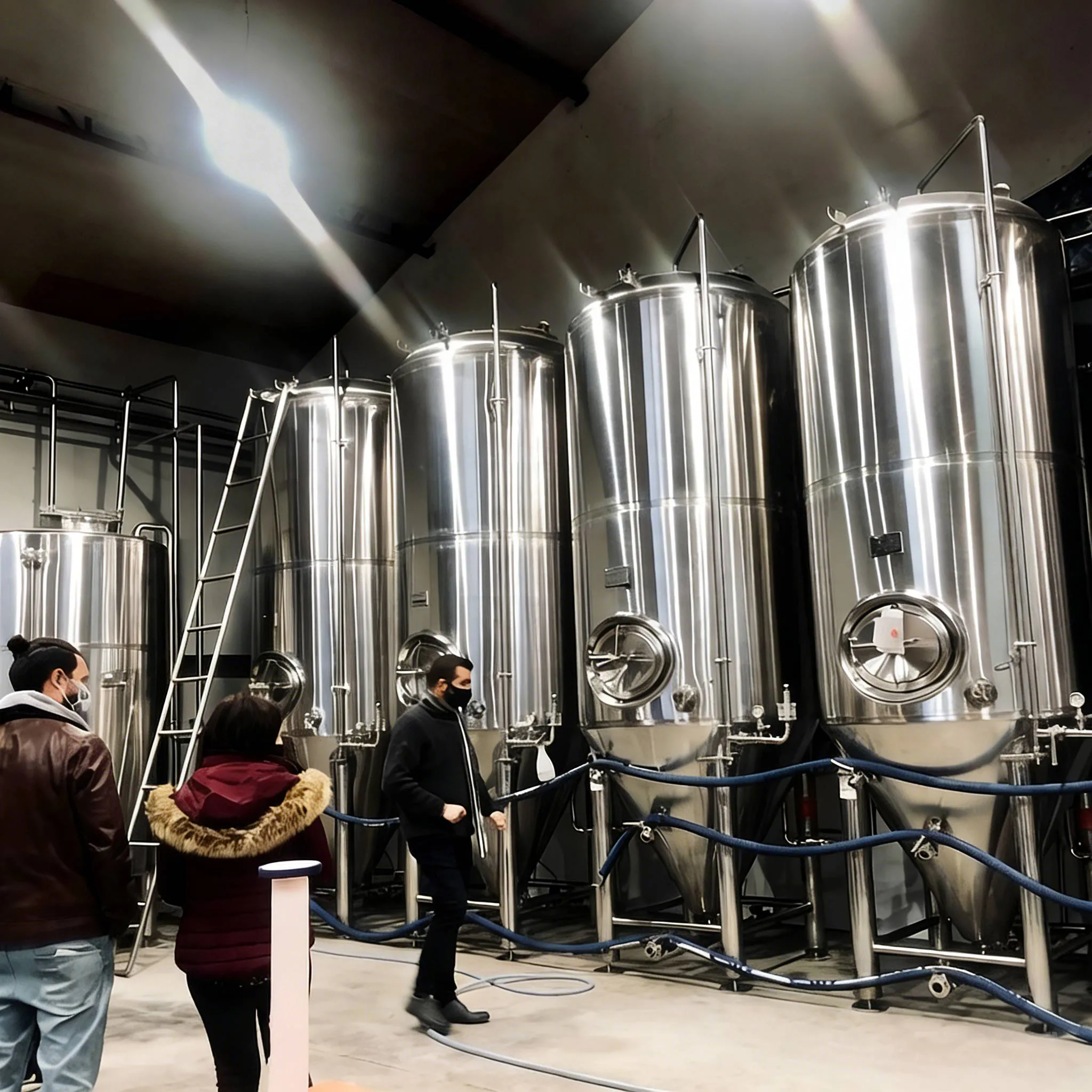

6×30HL CCT + 1×30HL BBT , with fully preassembled hard piping and fittings for glycol.

Cooling unit:

1x10HP Chiller+1X15HP Chiller+30HL Glycol water tank+Glycol pump+Glycol line etc

Control system:

Automatic Siemens PLC control with touch screen

CIP station

500L CIP station: Alkali tank+acid tank+pump+piping etc.
